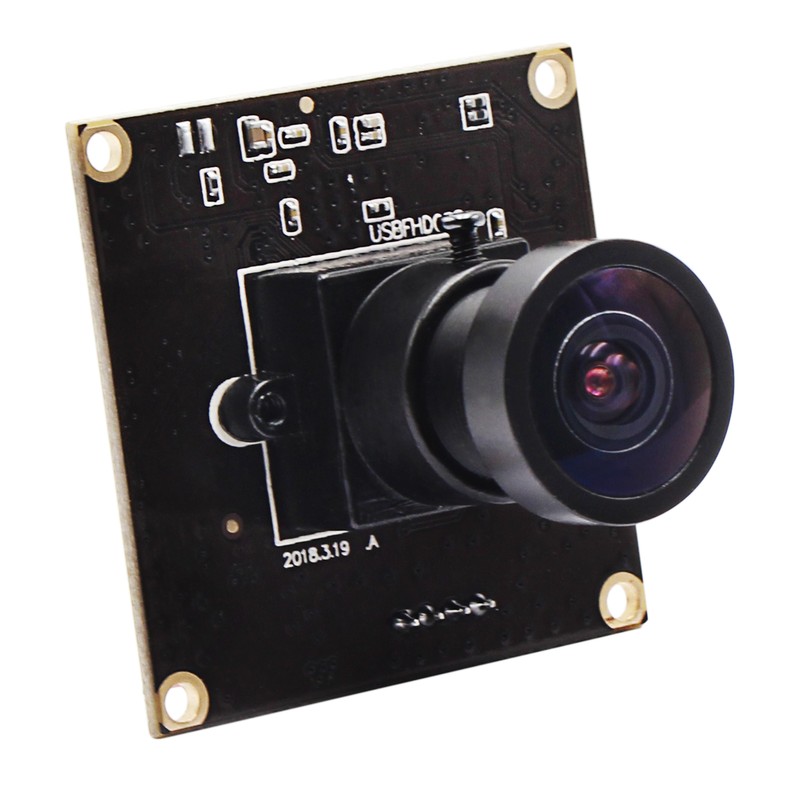

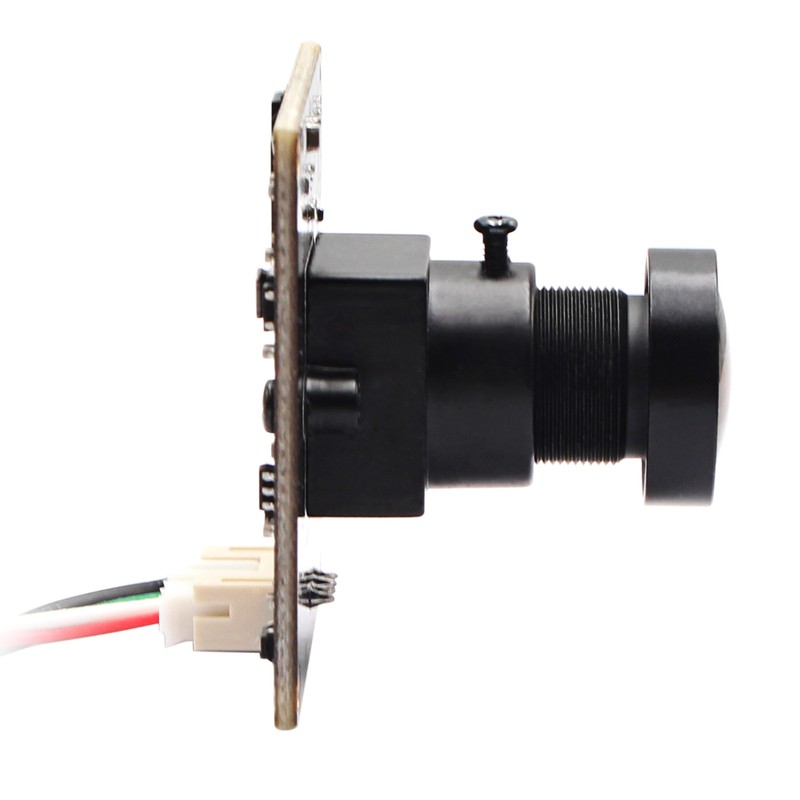

ELP USB 2.0 MJPEG CCTV CAMERA 640X360@260fps USB Webcam Module with 2.9mm Lens
ELP USB 2.0 MJPEG CCTV CAMERA 640X360@260fps USB Webcam Module with 2.9mm Lens
HomePaymentShippingReturn PolicyAbout UsContact UsFeedbackHigh frame rate USB Webcam MJPEG 1080P 60fps,720P 120fps, 640X360 260fps CMOS OV4689 usb Camera Module Features: *1080P USB Camera Module with 2.9mm lens*1/3 OmniVision OV4689 Color CMOS Sensor for high quality image*High speed USB 2.0 interface for high resolution PC camera interface.*Super small outline 38*38mm and thin profile for embedded applications*High frame rate– 1920X1080MJPEG@ 60fps ，1280X720 MJPEG@ 120fps，640X360MJPEG@ 260fps*UVC compliance for use in OS Windows, Linux, Android*OTG support*Plug and play Specification: Model ELP-USBFHD08S-L29 Sensor OV4689 Lens Size 1/3 inch Pixel Size 2.0µm X 2.0µm image area 5440 µm x 3072 µm Max. Resolution 1280(H)X720(V) Compression format MJPEG / YUV2(YUYV) Resolution & frame 1920X1080 MJPEG@ 60fps 1280X720 MJPEG@ 120fps 640X360MJPEG@ 260fps S/N Ratio 38.3dB Dynamic Range 64.6dB Sensitivity 1900mV/lux-sec@550nm Mini illumination 0. 1lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video Class(UVC) AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure Lens Parameter Standard 2.9mm lens, other optional Power supply USB BUS POWER Operating Voltage DC5V Working current 150mA~185mA Working temperature 0～70℃ Board size /Weight 38*38mm Cable Standard 1M Operating system request Win XP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC Application: Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.used for all kinds of machine as below:machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc. Product show and Effect: PaymentDelivery detailsTerms of salesAbout usContact usPayment1.We accept Paypal only. 2.Payment must be received within 7 working days. Or unpaid case will be opened automatically. Delivery details1.We ship goods to customer's confirmed paypal address. Please be sure your paypal address is correct before bidding. 2.Items will be shipped out within 48 hours once payment cleared. By registered air mail with tracking number. Orders placed on weekends or holidays will be processed on Monday or next working day. 3.International buyers please note: Import duties,taxes and charges are not included in the item price or shipping charges. These fees are buyers responsibility. So, Please check with your country's customs office to determine what these additional costs will be prior to bidding. 4.Delivery time:For USA buyers we'll ship by e-packet takes arround 7-12 working days. Other countries we'll ship by Registered Air Mail. Arround delivery time as bellow for your referrence.Australia, Canada 10-18 working daysUK, France, Austria, Germany, Spain and other Europe countries: 10-25 working daysGreece, Malta 15-40 working daysRussian Federation, Italy, Brazil, Africa countries: 20-40 days due to customs restrictionThe estimated arrival time above just for your refference, Not guaranteed. We don't responsible for any customs duties. Terms of sales1.If the goods dead on arrival, Please take photoes for us confirmation and reach us first time for exchange or refund. 2.Buyers have purchased a wrong item or don't like the item received, Please return within 7 days and reach us first before returning. 3.Ailipu Technology Co., Ltd warrants our product to be free from manufacturers maintenance for 2 years. The warranty will not be covered under the following conditions : a) Out-of-warranty products. b) The product is modified without Ailipu Technology Co.,Ltd approval. c) Obvious attack of appearance whatever it is. d) The product is subjected to unusual physical or electrical stress, including physical damage, burnt components and broken connectors.4. The customer is responsible for returning the defective product at his own expense. About usAilipu Technology Co.,Ltd have 10 years history, is a professional manufacturer of surveillance system. We produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system. We can also OEM or customize products specially by customers' requirements.Contact usIf you have any questions,Please contact with us via eBay message! Our Service Officer will reply in 24 hours!(Excluding Weekends and Public Holidays) Working time:Our Duty TimeChina TimeUSA (pacific time) StartEndStartEndMondayAM 9:00PM 18:00SundayPM 17:00AM 2:00TuesdayAM 9:00PM 18:00MondayPM 17:00AM 2:00WednesdayAM 9:00PM 18:00TuesdayPM 17:00AM 2:00ThursdayAM 9:00PM 18:00WednesdayPM 17:00AM 2:00FridayAM 9:00PM 18:00ThursdayPM 17:00AM 2:00SaturdayOut of DutyFriday SaturdaySundayOut of DutySaturday Sunday During the duty time ,we can give you a quick respond. If we are out of work ,please kindly be patient and considerable to give us a little more time ,not just leave the neutral or negative feedback without communication ,thank you for your cooperation !
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | ELP |
| MPN | Does Not Apply |
| Model | ELP-USBFHD08S-L29 |
| Dimensions (L X W X D)(mm) | 38X38Mmm,32x32mm |
| Minimum Illumination(Lux) | 0.5lux |
| Pixel | 2MP |
| Max.resolution | 1920 x 1080 |
| Technology | USB2.0 |
| Resolution | 1920x1080 |
| High Definition | 1080P(Full-HD) |
| Connectivity | usb2.0 |
| Features | Digital |
| Surveillance Technology | CCTV |
| Smart Home Protocol | Thread |
| Compatible Brand | USB camera module |
| Smart Home Compatibility | Camera module |
| Location | Indoor Only |
| Maximum Resolution | 1920x1080 |
| Storage Capacity | USB camera |
| Power | DC5V |
| Operating Sound Rating | video camera |
