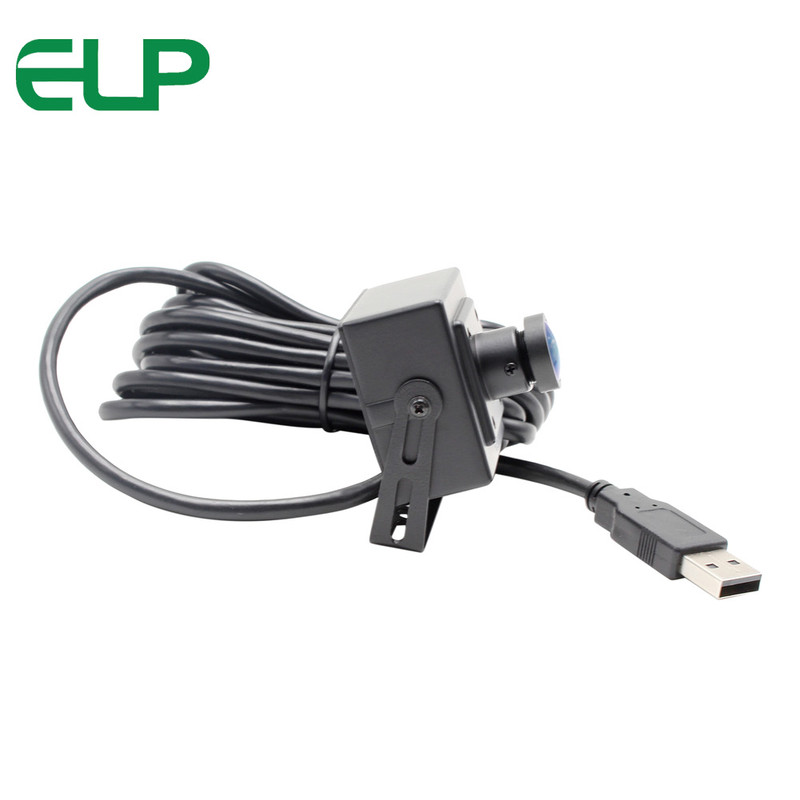

1.3MP Webcam with 170 Degree Fisheye Lens 960P Low illumination CMOS USB Camera
1.3MP Webcam with 170 Degree Fisheye Lens 960P Low illumination CMOS USB Camera
HomePaymentShippingReturn PolicyAbout UsContact UsFeedback support IR Cut 170degree fisheye1.3 Megapixel HD digital USB cameraELP-USB130W01MT-BL170 Features： *1.3Megapixel CMOS sensor for high quality image.*High speed USB 2.0 interface for high resolution PC camera interface.*high pixel technology for sharp image and accurate color reproduction.*low light performance – ideal for any lighting condition.*Super small outline and thin profile for embedded applications.*High frame rate–30 fps in 1280X960 resolution.*High quality lens, true and undistorted color image.*Low power consumption – ideal for portable equipment.*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.*Camera with UVC. Key Specifications Module No. ELP-USB130W01MT-B L170(with box case) Module Size 38mm × 38mm 32mm × 32mm Temperature (Operation) -20°C to 70°C Temperature (Stable Image) 0°C to 60°C Camera Board Assembly technique SMT (ROSH) Focus Manual Object distance 5CM-100M Resolution 600LW/PH (Center) interface USB 2.0 High Speed protocol USB Video Class(UVC) Power USB bus power Operating system request Win XPWin7Win8AndroidLinuxMac OS Certifications FCC and CE Sensor Type AR0130 (1/3” ) Active Array Size 1280 *960 Minimal illumination 0.01Lux Pixel Size 3.75um Maximum Image Transfer Rate 1280 (H) x 960 (V) pixels MJPEG 15fps 1280 (H) x 720 (V) pixels MJPEG 30fps 800 (H) x 600 (V) pixels MJPEG 30fps 640 (H) x 480 (V) pixels MJPEG 30fps 320 (H) x 240 (V) pixels MJPEG 30fps S/N Ratio 44dB Dynamic Range 83.5dB Shutter Rolling shutter/ frame exposure Lens Type Lens Construction 5G+IR Focal Length 3.6mm F/No 1.8 BFL(Optical) 6.5mm FOV 105° IR Filter 650±10nm DSP Type RV1080P AGC/AEC/AWB/ABF Auto Output Formats YUYV/MJPEG IR CUT SUPPORT Adjustable parameters Brightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure Focus Package LQFN-40pin USB Cable 1M(2M/3M/5M Optional) ApplicationsCar and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.used for all kinds of machine as below:machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automaticvending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot lawenforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed videoshooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HDsurveillance, endoscope, Medical auxiliary equipment, etc. PaymentDelivery detailsTerms of salesAbout usContact usPayment1.We accept Paypal only. 2.Payment must be received within 7 working days. Or unpaid case will be opened automatically. Delivery details1.We ship goods to customer's confirmed paypal address. Please be sure your paypal address is correct before bidding. 2.Items will be shipped out within 48 hours once payment cleared. By registered air mail with tracking number. Orders placed on weekends or holidays will be processed on Monday or next working day. 3.International buyers please note: Import duties,taxes and charges are not included in the item price or shipping charges. These fees are buyers responsibility. So, Please check with your country's customs office to determine what these additional costs will be prior to bidding. 4.Delivery time:For USA buyers we'll ship by e-packet takes arround 7-12 working days. Other countries we'll ship by Registered Air Mail. Arround delivery time as bellow for your referrence.Australia, Canada 10-18 working daysUK, France, Austria, Germany, Spain and other Europe countries: 10-25 working daysGreece, Malta 15-40 working daysRussian Federation, Italy, Brazil, Africa countries: 20-40 days due to customs restrictionThe estimated arrival time above just for your refference, Not guaranteed. We don't responsible for any customs duties. Terms of sales1.If the goods dead on arrival, Please take photoes for us confirmation and reach us first time for exchange or refund. 2.Buyers have purchased a wrong item or don't like the item received, Please return within 7 days and reach us first before returning. 3.Ailipu Technology Co., Ltd warrants our product to be free from manufacturers maintenance for 2 years. The warranty will not be covered under the following conditions : a) Out-of-warranty products. b) The product is modified without Ailipu Technology Co.,Ltd approval. c) Obvious attack of appearance whatever it is. d) The product is subjected to unusual physical or electrical stress, including physical damage, burnt components and broken connectors.4. The customer is responsible for returning the defective product at his own expense. About usAilipu Technology Co.,Ltd have 10 years history, is a professional manufacturer of surveillance system. We produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system. We can also OEM or customize products specially by customers' requirements.Contact usIf you have any questions,Please contact with us via eBay message! Our Service Officer will reply in 24 hours!(Excluding Weekends and Public Holidays) Working time:Our Duty TimeChina TimeUSA (pacific time) StartEndStartEndMondayAM 9:00PM 18:00SundayPM 17:00AM 2:00TuesdayAM 9:00PM 18:00MondayPM 17:00AM 2:00WednesdayAM 9:00PM 18:00TuesdayPM 17:00AM 2:00ThursdayAM 9:00PM 18:00WednesdayPM 17:00AM 2:00FridayAM 9:00PM 18:00ThursdayPM 17:00AM 2:00SaturdayOut of DutyFriday SaturdaySundayOut of DutySaturday Sunday During the duty time ,we can give you a quick respond. If we are out of work ,please kindly be patient and considerable to give us a little more time ,not just leave the neutral or negative feedback without communication ,thank you for your cooperation !
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Features | Mini |
| MPN | Does Not Apply |
| Color Mode | Color |
| Lens | 170degree Fisheye Lens |
| Outside | Aluminum case |
| Model | ELP-USB130W01MT-BL170 |
| High Definition | 960P(Full-HD) |
| Connectivity | USB |
| Brand | ELP |
| Type | USB Camera |
| Smart Home Protocol | Thread |
| Surveillance Technology | CCTV |
| Smart Home Compatibility | video camera |
| Compatible Brand | Webcam |
| Location | Indoor Only |
| Maximum Resolution | 1280x960 |
| Storage Capacity | usb2.0 camera |
| Operating Sound Rating | mini usb webcam |
| Power | DC5V |
