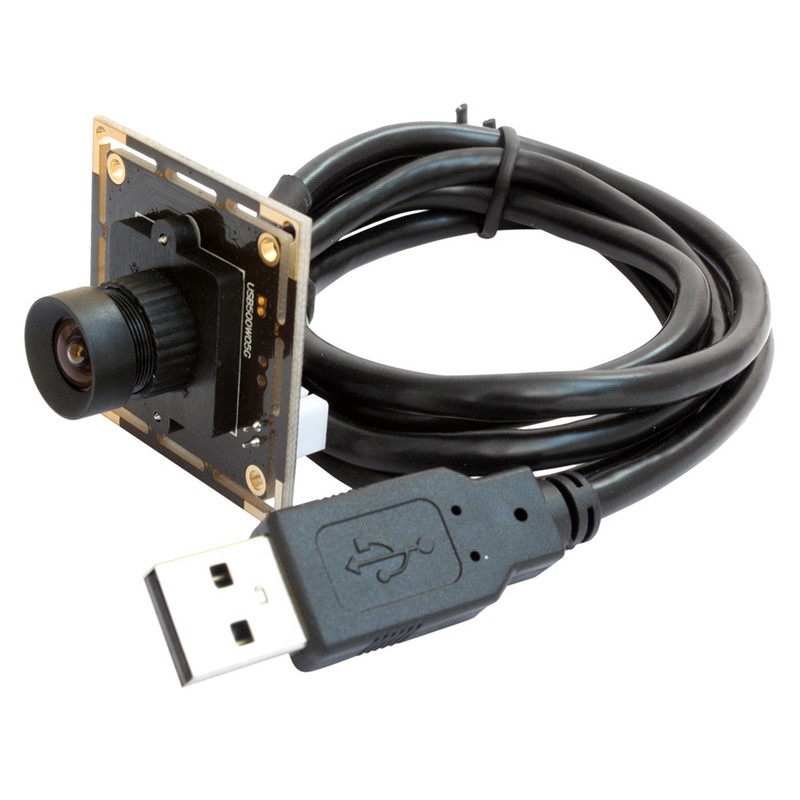

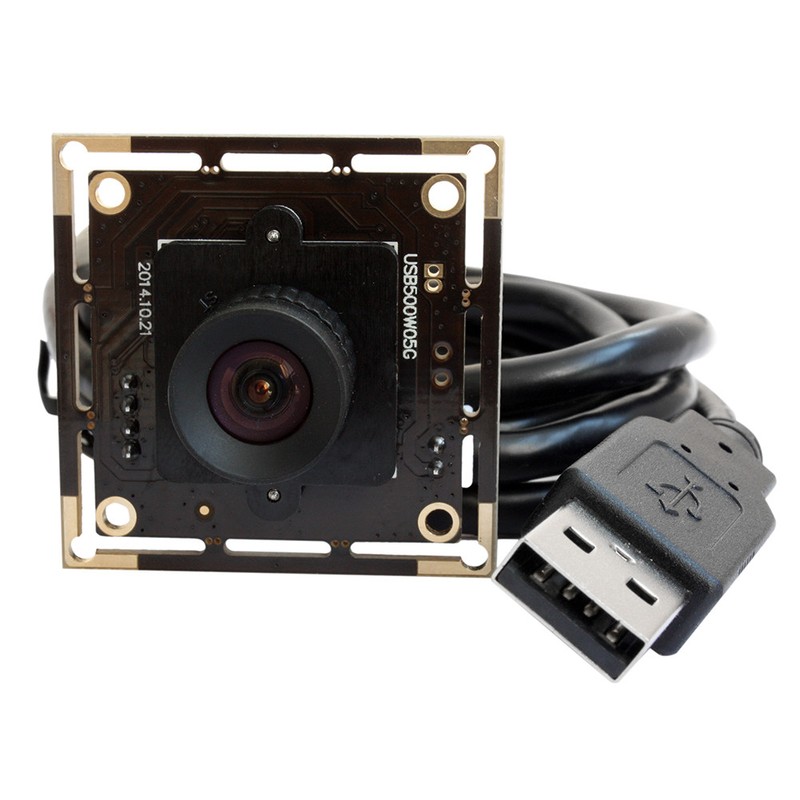

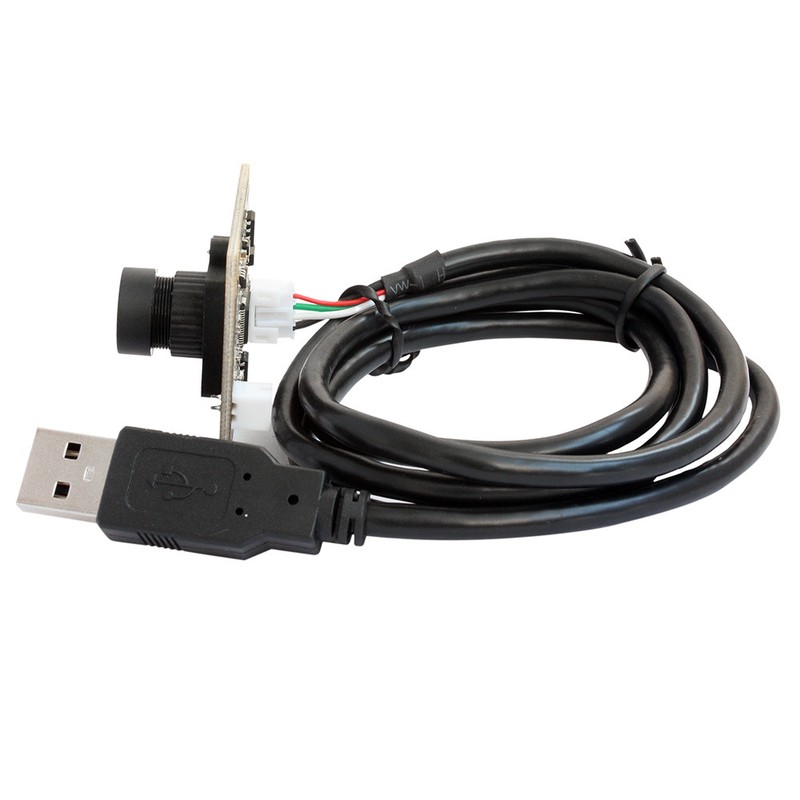

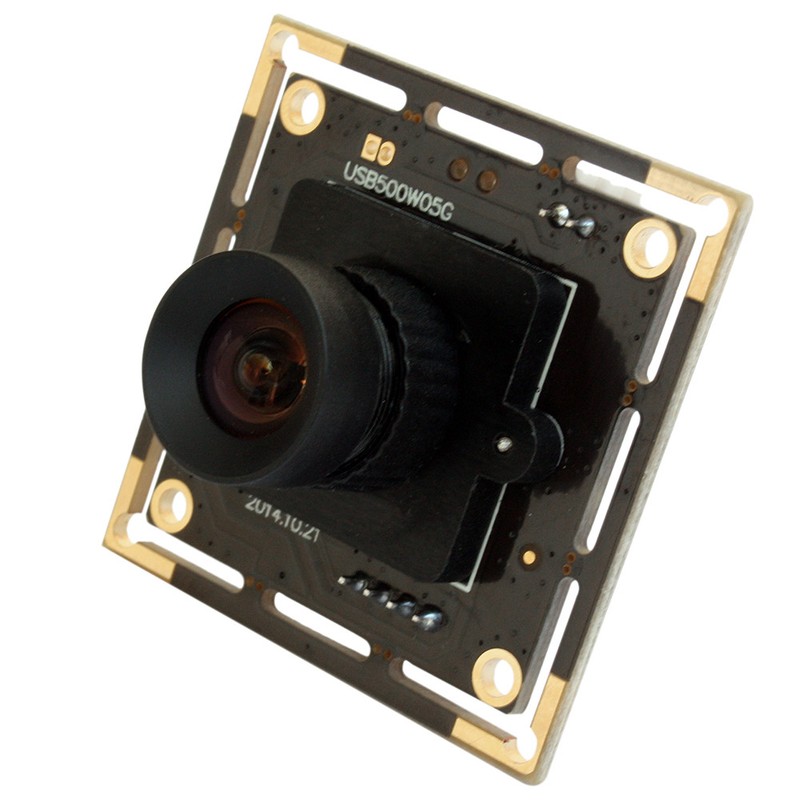

Webcam with USB 5MP Aptina MI5100 HD USB Camera Module for Linux,Android,Windows
Webcam with USB 5MP Aptina MI5100 HD USB Camera Module for Linux,Android,Windows
Feature:*Super high resolution 5mp USB camera module*Can used for micro endoscope camera*5Megapixel CMOS sensor for high quality image.*High speed USB 2.0 interface for high resolution PC camera interface.*high pixel technology for sharp image and accurate color reproduction.*low light performance-ideal for any lighting condition.*Super small outline and thin profile for embedded applications.*High frame rate-30 fps in 1280X720 resolution.*High quality lens, true and undistorted color image.*Low power consumption ideal for portable equipment.*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.*Camera with UVC. Specification: Model ELP-USB500W05G Sensor Aptina MI5100 Lens Size 1/2.5 inch (4:3) Pixel Size 2.2um image area 5.7mm x 4.28mm Max. Resolution 2592(H) X 1944(V) Compression format MJPEG / YUV2 (YUYV) Resolution & frame 2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG 1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG 1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG 800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG S/N Ratio 38dB Dynamic Range 70dB Sensitivity 1.4V/lux-sec@550nm Mini illumination 0.1lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video Class (UVC) OTG protocol USB2.0 OTG AEC Support AEB Support AGC Support Button camera Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter Size: 1/2.5, Iris: F2.4, Focus: 3mm, FOV(D): 100 Degree LED board control interface Support 2P-1.25mm socket LED board power connector Support 2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Operating Voltage DC5V Working current 150Ma~200Ma Working temperature -10~70 centigrade Storage temperature -20~85 centigrade Board size 38X38mm (compatible 32X32mm) Operating system request WinXP/Vista/Win7/Win8 Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC Applications Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automaticvending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot lawenforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed videoshooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, microHD surveillance, endoscope, Medical auxiliary equipment, etc. Important:We are not responsible for any custom duty or import tax Return Policy1. We offer full refund if you didn't receive your order in our promised time.2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving3. Items returned after 7 days of delivery are only for repair.4. As the items returned, buyer should pay for the return shipping fee. Feedback 1.Please contact us before leaving any neutral or negative feedback. We will try our best to solve the problem ,Thank you 2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster. Thanks! Welcome Inquiry.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | usb camera board |
| Brand | elp |
| Model | new |
| MPN | Does Not Apply |
| Resolution | 5mp |
| High Definition: | 5MP |
| Lens (mm) | 2.8mm Lens |
| Subtype | usb |
| Features | 5MP |
| Smart Home Protocol | Thread |
| Surveillance Technology | CCTV |
| Smart Home Compatibility | USB CAMERA |
| Compatible Brand | Webcam |
| Number Of Cameras Included | Camera 5MP |
| Location | Indoor Only |
| Maximum Resolution | 2592x1944 |
| Storage Capacity | Camera with usb2.0 |
| Operating Sound Rating | Webcameras 5MP |
| Power | DC5V |
Feature:*Super high resolution 5mp USB camera module*Can used for micro endoscope camera*5Megapixel CMOS sensor for high quality image.*High speed USB 2.0 interface for high resolution PC camera interface.*high pixel technology for sharp image and accurate color reproduction.*low light performance-ideal for any lighting condition.*Super small outline and thin profile for embedded applications.*High frame rate-30 fps in 1280X720 resolution.*High quality lens, true and undistorted color image.*Low power consumption ideal for portable equipment.*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.*Camera with UVC. Specification: Model ELP-USB500W05G Sensor Aptina MI5100 Lens Size 1/2.5 inch (4:3) Pixel Size 2.2um image area 5.7mm x 4.28mm Max. Resolution 2592(H) X 1944(V) Compression format MJPEG / YUV2 (YUYV) Resolution & frame 2592×1944 @ 15fps MJPEG / 2048×1536 @ 15fps MJPEG 1600×1200 @ 15fps MJPEG / 1280×1024 @ 15fps MJPEG 1920×1080 @ 30fps MJPEG / 1280×720 @ 30fps MJPEG 800×600 @ 30fps MJPEG / 640×480 @ 30fps MJPEG S/N Ratio 38dB Dynamic Range 70dB Sensitivity 1.4V/lux-sec@550nm Mini illumination 0.1lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB2.0 High Speed Free Drive Protocol USB Video Class (UVC) OTG protocol USB2.0 OTG AEC Support AEB Support AGC Support Button camera Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter Size: 1/2.5, Iris: F2.4, Focus: 3mm, FOV(D): 100 Degree LED board control interface Support 2P-1.25mm socket LED board power connector Support 2P-2.0mm socket Power supply USB BUS POWER 4P-2.0mm socket Operating Voltage DC5V Working current 150Ma~200Ma Working temperature -10~70 centigrade Storage temperature -20~85 centigrade Board size 38X38mm (compatible 32X32mm) Operating system request WinXP/Vista/Win7/Win8 Linux with UVC (above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC Applications Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automaticvending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot lawenforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed videoshooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, microHD surveillance, endoscope, Medical auxiliary equipment, etc. Important:We are not responsible for any custom duty or import tax Return Policy1. We offer full refund if you didn’t receive your order in our promised time.2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving3. Items returned after 7 days of delivery are only for repair.4. As the items returned, buyer should pay for the return shipping fee. Feedback 1.Please contact us before leaving any neutral or negative feedback. We will try our best to solve the problem ,Thank you 2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster. Thanks! Welcome Inquiry.
