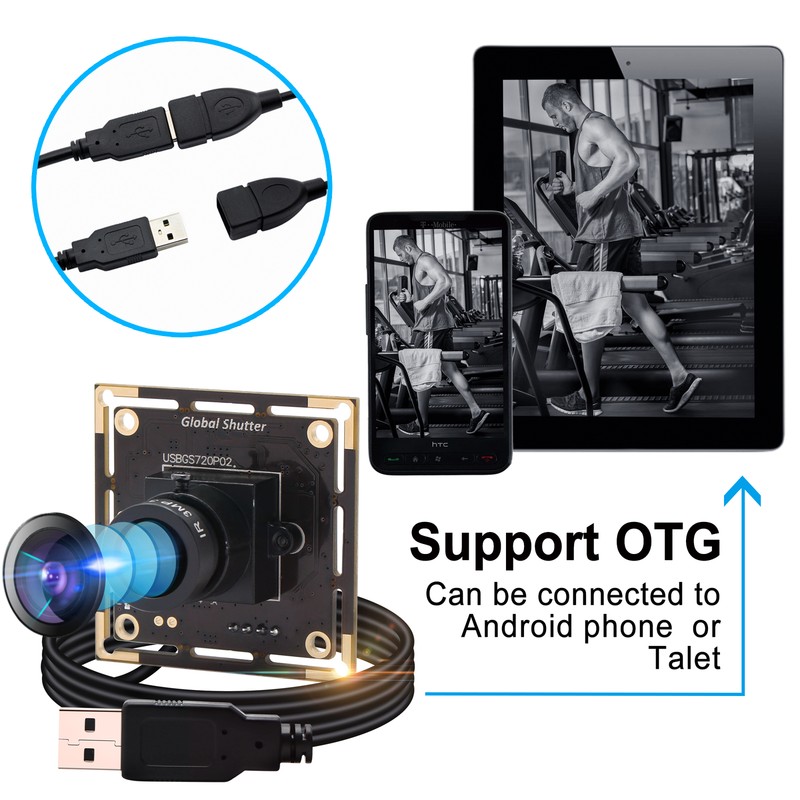

Global Shutter USB Webcam High speed 60fps Aptina AR0144 Monochrome USB Camera
Global Shutter USB Webcam High speed 60fps Aptina AR0144 Monochrome USB Camera
ELP USB2.0 Webcamera Global Shutter High Speed 60fps 720P UVC Plug Play Driverless USB Camera Module with 3.6mm lens Important: The picture for this camera is black and white Features: 1. High quality Aptina AR0144 Sensor for high quality image 2. Shutter Type : Global shutter 3.High frame rate- deliver 1280X720MJPEG@ 60fps 4. UVC compliance for use in OS Windows,Linux, Android 5.Operating system request : Win8 or above , Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC Specification: Model ELP-USBGS720P02-L36 Sensor Aptina AR0144 Lens Size 1/4 inch Pixel Size 3.0µm image area 3888µm x 2430 µm Effective Pixels 1280(H)X720(V) 1MP Compression format MJPEG / YUV2 (YUYV) Resolution & frame 1280X720MJPEG@ 60fps YUY2@5fps800X600MJPEG@ 60fps YUY2@20fps640X480 MJPEG@ 60fps YUY2@ 30fps S/N Ratio 38dB Dynamic Range 63.9dB Sensitivity 3.1V/lux-sec@550nm Mini illumination 0.2 Lux Shutter Type Global Shutter Connecting Port type USB2.0 High Speed OTG protocol USB2.0 OTG Free Drive Protocol USB Video Class(UVC) AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter Standard 3.6mm (2.1 /2.8/6/ 8/12mm/170 degree fisheye lens optional) Power supply connector USB BUS POWER 4P-2.0mm socket Work Power Voltage DC5V Work Power Current 110mA~160mA Working temperature -10～70℃ Storage temperature -20～75℃ Board size /Weight 38*38mm / About 30g Cable Standard 1m cables (2M,3M,5M optional ) Support OS Win7 Win8 Linux 2.6 or above Android 4.0 or above Applications: Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote sitemonitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc. Global Shutter USB Webcam High speed 60fps 1280X720 Aptina AR0144 Monochrome USB Webcam Camera Module Board for PC Laptop Important:We are not responsible for any custom duty or import tax Return Policy1. We offer full refund if you didn't receive your order in our promised time.2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving3. Items returned after 7 days of delivery are only for repair.4. As the items returned, buyer should pay for the return shipping fee. Feedback 1.Please contact us before leaving any neutral or negative feedback. We will try our best to solve the problem ,Thank you 2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster. Thanks! Welcome Inquiry.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | Does Not Apply |
| Model | ELP-USBGS720P02-L36 |
| Brand | ELP |
| Type | Global Shutter |
| Connectivity | usb2.0 |
| Features | global shutter |
| Surveillance Technology | CCTV |
| Compatible Brand | PC Webcam |
| Location | Indoor Only |
| Maximum Resolution | 1280x720 |
| Storage Capacity | Webcamera |
| Power | DC5V |
| Operating Sound Rating | usb camera |
ELP USB2.0 Webcamera Global Shutter High Speed 60fps 720P UVC Plug Play Driverless USB Camera Module with 3.6mm lens Important: The picture for this camera is black and white Features: 1. High quality Aptina AR0144 Sensor for high quality image 2. Shutter Type : Global shutter 3.High frame rate- deliver 1280X720MJPEG@ 60fps 4. UVC compliance for use in OS Windows,Linux, Android 5.Operating system request : Win8 or above , Linux with UVC(above linux-2.6.26),MAC-OS X 10.4.8 or later , Android 4.0 or above with UVC Specification: Model ELP-USBGS720P02-L36 Sensor Aptina AR0144 Lens Size 1/4 inch Pixel Size 3.0µm image area 3888µm x 2430 µm Effective Pixels 1280(H)X720(V) 1MP Compression format MJPEG / YUV2 (YUYV) Resolution & frame 1280X720MJPEG@ 60fps YUY2@5fps800X600MJPEG@ 60fps YUY2@20fps640X480 MJPEG@ 60fps YUY2@ 30fps S/N Ratio 38dB Dynamic Range 63.9dB Sensitivity 3.1V/lux-sec@550nm Mini illumination 0.2 Lux Shutter Type Global Shutter Connecting Port type USB2.0 High Speed OTG protocol USB2.0 OTG Free Drive Protocol USB Video Class(UVC) AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure Lens Parameter Standard 3.6mm (2.1 /2.8/6/ 8/12mm/170 degree fisheye lens optional) Power supply connector USB BUS POWER 4P-2.0mm socket Work Power Voltage DC5V Work Power Current 110mA~160mA Working temperature -10～70℃ Storage temperature -20～75℃ Board size /Weight 38*38mm / About 30g Cable Standard 1m cables (2M,3M,5M optional ) Support OS Win7 Win8 Linux 2.6 or above Android 4.0 or above Applications: Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote sitemonitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc. Global Shutter USB Webcam High speed 60fps 1280X720 Aptina AR0144 Monochrome USB Webcam Camera Module Board for PC Laptop Important:We are not responsible for any custom duty or import tax Return Policy1. We offer full refund if you didn’t receive your order in our promised time.2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving3. Items returned after 7 days of delivery are only for repair.4. As the items returned, buyer should pay for the return shipping fee. Feedback 1.Please contact us before leaving any neutral or negative feedback. We will try our best to solve the problem ,Thank you 2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster. Thanks! Welcome Inquiry.
