(50) NMHC2290D 1080p Starlight H.265 IP Camera Module CMOS 1/2.8″ IMX290/IMX291
(50) NMHC2290D 1080p Starlight H.265 IP Camera Module CMOS 1/2.8" IMX290/IMX291

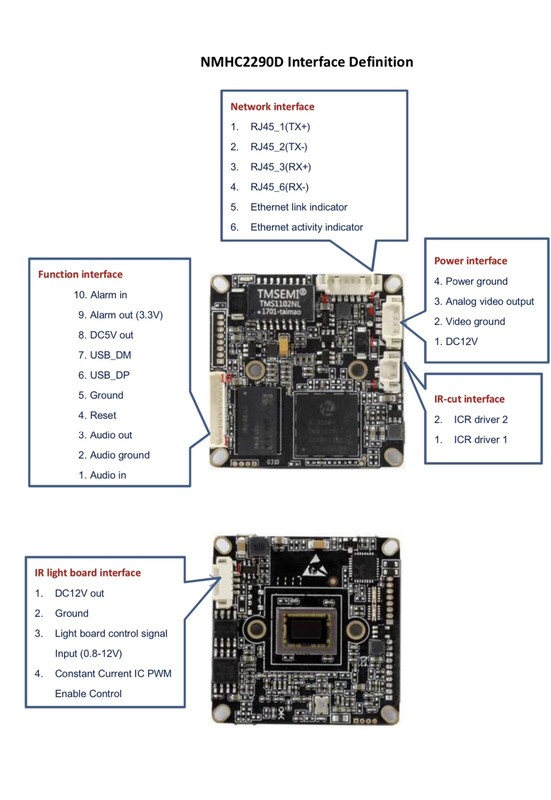

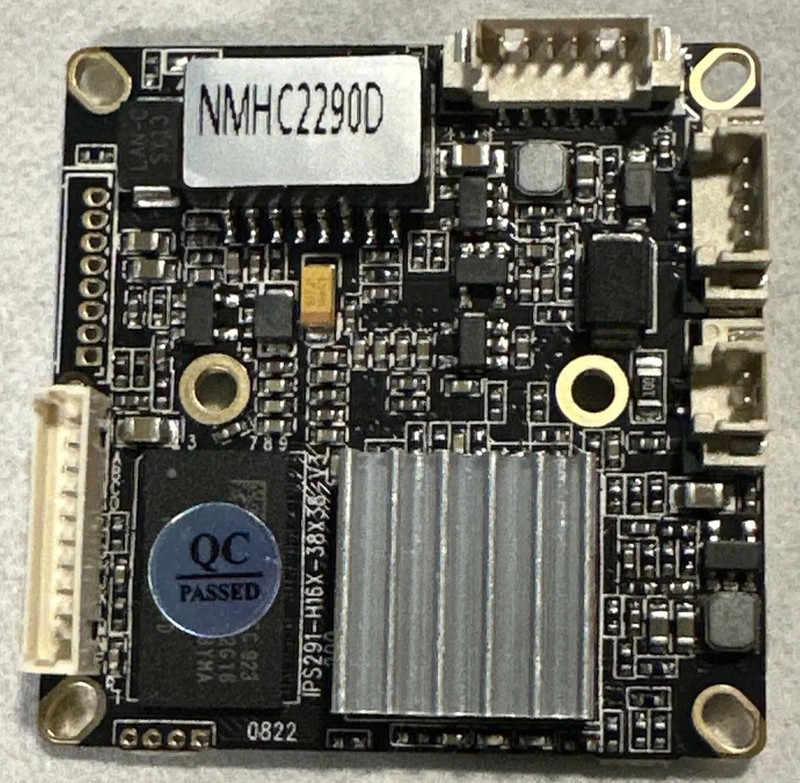

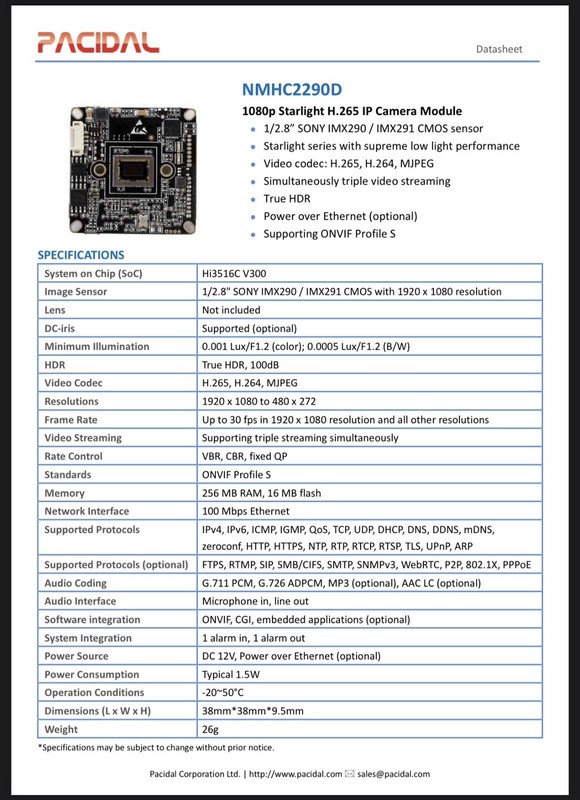

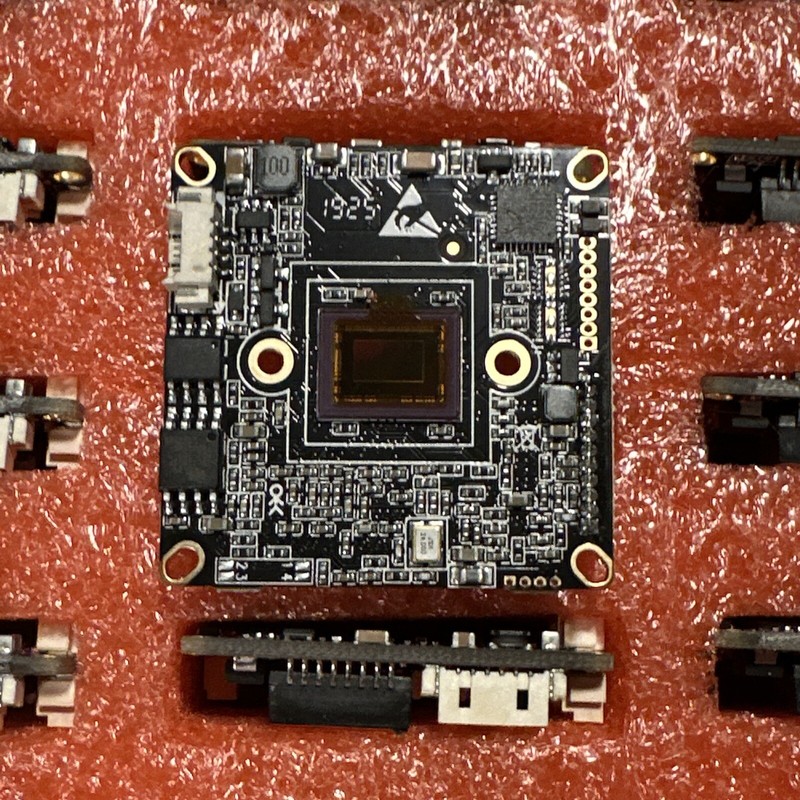

NMHC2290D 1080p Starlight H.265 IP Camera Module CMOS 1/2.8" SONY IMX290/IMX291. MAKE AN OFFER Bulk set = 50 count 50 chips x $5 each = $250 or best offer Manufacturer’s specifications (see screenshot attached for data specs): The CMOS sensor and chips are already mounted on the camera module.System on Chip (SoC) - H3516C V300Image Sensor - 1/2.8" SONY IMX290 / IMX291 CMOS with 1920 x 1080 resolutionLens - Not includedDC-iris - Supported (optional)Minimum Illumination - 0.001 Lux/F1.2 (color); 0.0005 Lux/F1.2 (B/W)HDR - True HDR. 100dBVideo Codec - H.265, H.264, MJPEGResolutions - 1920 x 1080 to 480 × 272Frame Rate - Up to 30 fps in 1920 × 1080 resolution and all other resolutionsVideo Streaming - Supporting triple streaming simultaneously.Rate Control - VBR, CBR, fixed QPStandards - ONVIF Profile SMemory - 256 MB RAM, 16 MB flashNetwork interface - 100 Mbps EthernetSupported Protocols - IPv4, IPv6, ICMP, IGMP, QoS, TCP, UDP, DHCP, DNS, DDNS, mDNS, zeroconf, HTTP, HTTPS, NTP, RTP, RTCP, RTSP, TLS, UPP, ARPSupported Protocols (optional) FTPS, RTMP, SIP, SMB/CIFS, SMTP, SNMPv3, WebRTC, P2P, 802.1X, PPPOEAudio Coding - G.711 PCM, G.726 ADPCM, MP3 (optional), AAC LC (optional)Audio Interface - Microphone in, line outSoftware integration - ONVIF, CGI, embedded applications (optional)System Integration - 1 alarm in, 1 alarm outPower Source - DC 12V, Power over Ethernet (optional)Power consumption - Typical 1.5WOperation Conditions - -20~50°CDimensions (Lx W × H) - 38mm*38mm*9.5mmWeight - 26g Manufacturer's Guides:Below are Pacidal IP camera module default accounts and manuals. 1. Log-in info: IP: 192.168.1.168 Administrator account account name: admin pwd: camera Integrator account By using the "integrator" account, CGI sample commands are shown on the top of the browser. account name: integrator pwd: integrator Operator account account name: operator pwd: operator User account account name: user pwd: changeme 2. Manuals can be downloaded from the following links. To find camera in LAN, please use Onvif device manager (ODM). https://drive.google.com/open?id=1E6rNEubaT4xT3abZGXbAnhTMD12JfCh6 To check basic video stream information, such as video codec/resolution/bit rate, etc., please use VLC. You can also change default buffer time settings in VLC to reduce latencies. https://drive.google.com/open?id=1Ef0o9VYSbmuFpQhVBrcmqXP3td9-HD82 For additional support, contact the manufacturer using the URL here: http://www.pacidal.com/contact_info.html.
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Color Mode | Color Day, B&W Night |
| MPN | Does Not Apply |
| Brand | Pacidal |
| Type | Surveillance Camera |
| Maximum Resolution | 1920x1080 |
| Voltage | 12 V |
| Model | NMHC2290D |
| Connectivity | Wired |
| Storage Capacity | 16 MB Flash |
| Country/Region Of Manufacture | China |
| Operating Sound Rating | 100 dB |
| Surveillance Technology | CCTV |
NMHC2290D 1080p Starlight H.265 IP Camera Module CMOS 1/2.8″ SONY IMX290/IMX291. MAKE AN OFFER Bulk set = 50 count 50 chips x $5 each = $250 or best offer Manufacturer’s specifications (see screenshot attached for data specs): The CMOS sensor and chips are already mounted on the camera module.System on Chip (SoC) – H3516C V300Image Sensor – 1/2.8″ SONY IMX290 / IMX291 CMOS with 1920 x 1080 resolutionLens – Not includedDC-iris – Supported (optional)Minimum Illumination – 0.001 Lux/F1.2 (color); 0.0005 Lux/F1.2 (B/W)HDR – True HDR. 100dBVideo Codec – H.265, H.264, MJPEGResolutions – 1920 x 1080 to 480 × 272Frame Rate – Up to 30 fps in 1920 × 1080 resolution and all other resolutionsVideo Streaming – Supporting triple streaming simultaneously.Rate Control – VBR, CBR, fixed QPStandards – ONVIF Profile SMemory – 256 MB RAM, 16 MB flashNetwork interface – 100 Mbps EthernetSupported Protocols – IPv4, IPv6, ICMP, IGMP, QoS, TCP, UDP, DHCP, DNS, DDNS, mDNS, zeroconf, HTTP, HTTPS, NTP, RTP, RTCP, RTSP, TLS, UPP, ARPSupported Protocols (optional) FTPS, RTMP, SIP, SMB/CIFS, SMTP, SNMPv3, WebRTC, P2P, 802.1X, PPPOEAudio Coding – G.711 PCM, G.726 ADPCM, MP3 (optional), AAC LC (optional)Audio Interface – Microphone in, line outSoftware integration – ONVIF, CGI, embedded applications (optional)System Integration – 1 alarm in, 1 alarm outPower Source – DC 12V, Power over Ethernet (optional)Power consumption – Typical 1.5WOperation Conditions – -20~50°CDimensions (Lx W × H) – 38mm*38mm*9.5mmWeight – 26g Manufacturer's Guides:Below are Pacidal IP camera module default accounts and manuals. 1. Log-in info: IP: 192.168.1.168 Administrator account account name: admin pwd: camera Integrator account By using the “integrator” account, CGI sample commands are shown on the top of the browser. account name: integrator pwd: integrator Operator account account name: operator pwd: operator User account account name: user pwd: changeme 2. Manuals can be downloaded from the following links. To find camera in LAN, please use Onvif device manager (ODM). https://drive.google.com/open?id=1E6rNEubaT4xT3abZGXbAnhTMD12JfCh6 To check basic video stream information, such as video codec/resolution/bit rate, etc., please use VLC. You can also change default buffer time settings in VLC to reduce latencies. https://drive.google.com/open?id=1Ef0o9VYSbmuFpQhVBrcmqXP3td9-HD82 For additional support, contact the manufacturer using the URL here: http://www.pacidal.com/contact_info.html.
