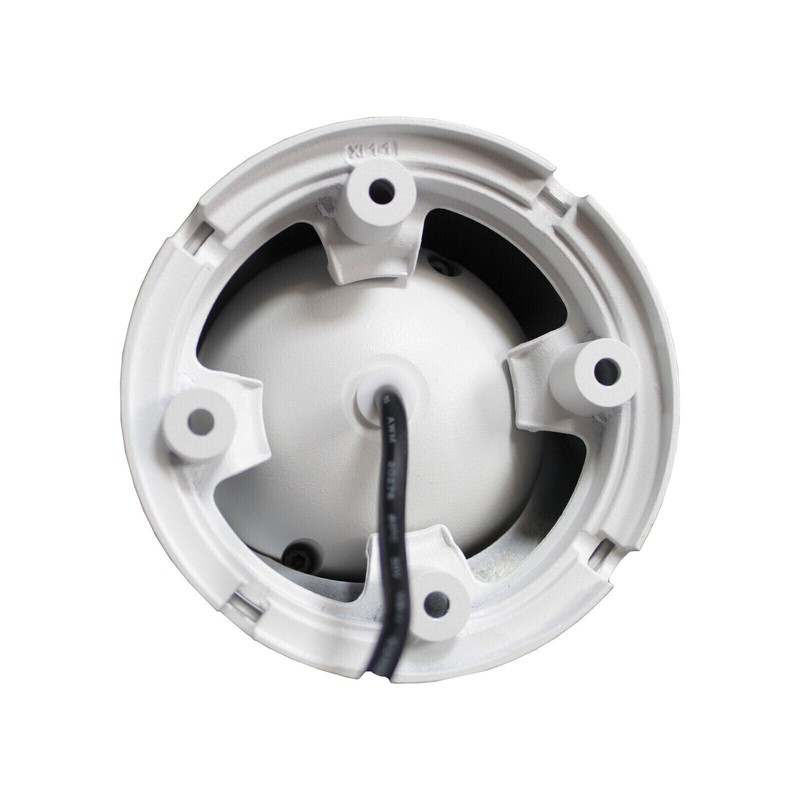

Vandalproof 1/2.7″ HD CMOS HD-CVI 2.0MP IR-Cut Dome 1080p HD CAMERA BNC
Vandalproof 1/2.7" HD CMOS HD-CVI 2.0MP IR-Cut Dome 1080p HD CAMERA BNC
2.0MP/1080P HD IR In/Outdoor Turret Security Camera 2.8MM Fixed CVI CVBS OEM Dahua 1. coaxial CVI camera, not IP camera, BNC interface connection. It's not compatible with NVR / network systems. 2. 2.8mm lens as default. 3. Please make sure that your DVR/XVR supports 2MP/5MP/8MP CVI coaxial cameras before purchasing, otherwise compatibility issues may occur. If you can’t confirm, you can contact us for help. ***Power Supply Not Included** Feature: Max 30fps@1080PQuick-to-install eyeball saves installation timeCVI/CVBS/AHD/TVI switchable 2.8mm fixed lens Max. IR length 60m, Smart IR IP67, DC12V Specifications: Camera Image Sensor 1/2.7 inch CMOS Max. Resolution 1920 (H) × 1080 (V) Pixel 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s S/N Ratio > 65 dB Min. Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on Illumination Distance 60 m (196.9 ft) Illuminator On/Off Control Auto; manual Illuminator Number 2 Pan/Tilt/Rotation Range Pan: 0°–360°Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm; Max. Aperture F1.9 Field of View 2.8 mm: H:119° ×V: 54° ×D 101° Iris Type Fixed iris Close Focus Distance 2.8 mm: 1.6 m (5.25 ft); DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 38.6m (126.6 ft) 15.4 m (50.5 ft) 7.7m (25.3 ft) 3.9 m (12.8ft) Video Frame Rate CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H Resolution 1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480) Day/Night Auto switch by ICR BLC BLC/HLC/DWDR/ WDR DWDR White Balance Auto; Manual Gain Control Auto; manual Noise Reduction 2D NR Smart IR Yes Mirror Off/On Privacy Masking Off/On (8 areas, rectangle) Certifications Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) Power Power Supply 12V±30% DC Power Consumption Max 4.9W (12 V DC, IR on) Environment Operating Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) Storage Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) Protection Grade IP67 Structure Casing Metal dome Camera Dimensions φ121.9 mm × 99.1 mm (φ4.8" × 3.9") Net Weight 0.4 kg (0.88 lb) Gross Weight 0.6 kg (1.32 lb)
Specifications
| Restocking Fee | 20% |
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | DAHUA OEM |
| Type | Dome |
| Maximum Resolution | 1920x1080 |
| Color Mode | Color Day, B&W Night |
| Model | HCC3320 |
| Features | Outdoor/Weatherproof |
| MPN | HCC3320 |
| Surveillance Technology | CCTV |
| Location | Outdoor & Indoor |
2.0MP/1080P HD IR In/Outdoor Turret Security Camera 2.8MM Fixed CVI CVBS OEM Dahua 1. coaxial CVI camera, not IP camera, BNC interface connection. It’s not compatible with NVR / network systems. 2. 2.8mm lens as default. 3. Please make sure that your DVR/XVR supports 2MP/5MP/8MP CVI coaxial cameras before purchasing, otherwise compatibility issues may occur. If you can’t confirm, you can contact us for help. ***Power Supply Not Included** Feature: Max 30fps@1080PQuick-to-install eyeball saves installation timeCVI/CVBS/AHD/TVI switchable 2.8mm fixed lens Max. IR length 60m, Smart IR IP67, DC12V Specifications: Camera Image Sensor 1/2.7 inch CMOS Max. Resolution 1920 (H) × 1080 (V) Pixel 2MP Scanning System Progressive Electronic Shutter Speed PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s S/N Ratio > 65 dB Min. Illumination 0.02Lux/F1.85, 30IRE, 0Lux IR on Illumination Distance 60 m (196.9 ft) Illuminator On/Off Control Auto; manual Illuminator Number 2 Pan/Tilt/Rotation Range Pan: 0°–360°Tilt: 0°–78° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm; Max. Aperture F1.9 Field of View 2.8 mm: H:119° ×V: 54° ×D 101° Iris Type Fixed iris Close Focus Distance 2.8 mm: 1.6 m (5.25 ft); DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 38.6m (126.6 ft) 15.4 m (50.5 ft) 7.7m (25.3 ft) 3.9 m (12.8ft) Video Frame Rate CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 1080P@25/30fps; 720P@25/30fps; TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H Resolution 1080P (1920×1080); 720P (1280×720); 960H (960×576/960×480) Day/Night Auto switch by ICR BLC BLC/HLC/DWDR/ WDR DWDR White Balance Auto; Manual Gain Control Auto; manual Noise Reduction 2D NR Smart IR Yes Mirror Off/On Privacy Masking Off/On (8 areas, rectangle) Certifications Certifications CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) Power Power Supply 12V±30% DC Power Consumption Max 4.9W (12 V DC, IR on) Environment Operating Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) Storage Temperature –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) Protection Grade IP67 Structure Casing Metal dome Camera Dimensions φ121.9 mm × 99.1 mm (φ4.8" × 3.9") Net Weight 0.4 kg (0.88 lb) Gross Weight 0.6 kg (1.32 lb)
