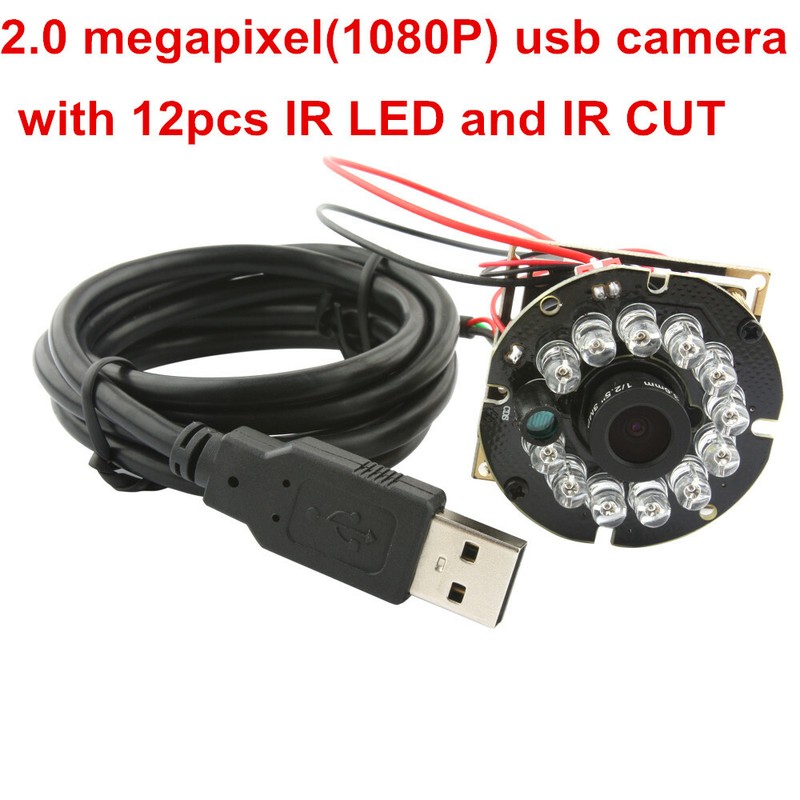

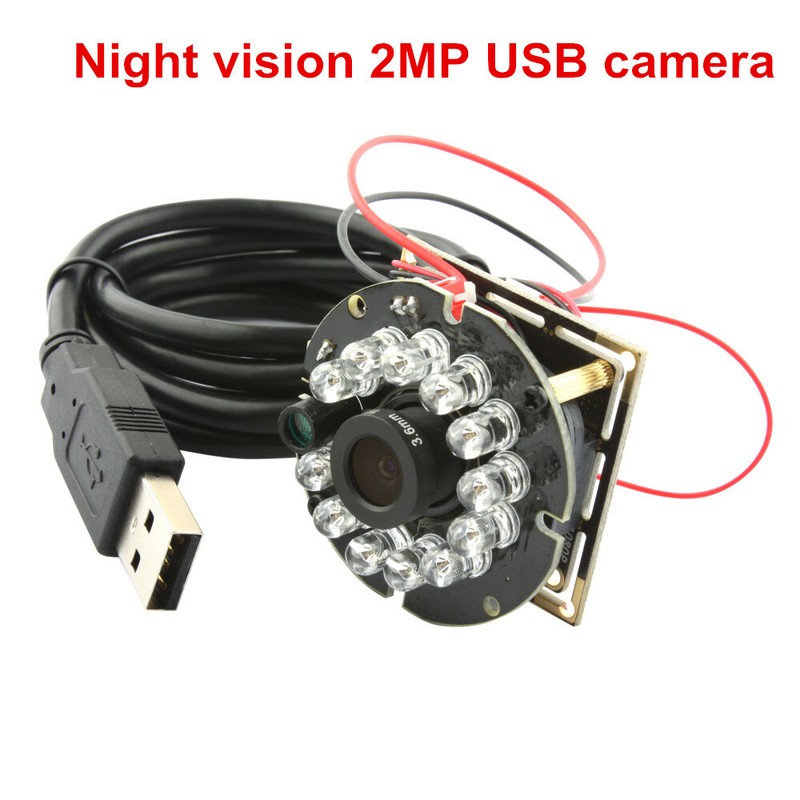

USB Security Board Module Camera HD 1080P IR-CUT Webcam 30/60/120fps High Speed
USB Security Board Module Camera HD 1080P IR-CUT Webcam 30/60/120fps High Speed
HomePaymentShippingReturn PolicyAbout UsContact UsFeedbackDescription12pcs IR LED day and night Android 2MP mjpeg 120fps @640x480 high frame infrared USB Board camera module Specifications: LENS: 3.6mm /2.1mm/2.8mm/6mm/8mm/12mm Optional) (can also choose other suitable lens as your required view angle) CABLE: 1m USB cable (2M/3M/5M optional)Optional models ELP-USBFHD05MTSensor 1/2.7" CMOS OV2710Lens size 200W, 2.0megapixel, 1920(H)x1080(V)pixelsMax. Resolution 1920X1080Picture format MJPEGUSB Protocal USB2.0 HS/FS, USB1.1 FSSupport free driver USB Video Class(UVC)1.1Auto exposure AEC SupportAuto white blance AEB SupportFrame rate 1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps 1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps 1024 (H) x 768 (V) pixels MJPEG 30fps YUY2 9fps 800 (H) x 600 (V) pixels MJPEG 60fps YUY2 21fps 640 (H) x 480 (V) pixels MJPEG 120fps YUY2 30fps 352(H) x 288 (V) pixels MJPEG 120fps YUY2 30fps 320 (H) x 240 (V) pixels MJPEG 120fps YUY2 30fpsAdjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WBNight vision with IR cut & IR LED board view angle 30-185 degree optionalvoltage DC 5Vcurrent 150mAwork temperature DEGREES(-20~70)Size 32x32mm/38*38Support OS WinXP/Vista/WIN7/WIN8 /Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or aboveEffective Pixels: 1920 (H) x 1080 (V) pixels 1280 (H) x 1024 (V) pixels 1280 (H) x 720 (V) pixels 1024 (H) x 768 (V) pixels 800 (H) x 600 (V) pixels 640 (H) x 480 (V) pixels 352(H) x 288 (V) pixels 320 (H) x 240 (V) pixels Applications: Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc. PaymentDelivery detailsTerms of salesAbout usContact usPayment1.We accept Paypal only. 2.Payment must be received within 7 working days. Or unpaid case will be opened automatically. Delivery details1.We ship goods to customer's confirmed paypal address. Please be sure your paypal address is correct before bidding. 2.Items will be shipped out within 48 hours once payment cleared. By registered air mail with tracking number. Orders placed on weekends or holidays will be processed on Monday or next working day. 3.International buyers please note: Import duties,taxes and charges are not included in the item price or shipping charges. These fees are buyers responsibility. So, Please check with your country's customs office to determine what these additional costs will be prior to bidding. 4.Delivery time:For USA buyers we'll ship by e-packet takes arround 7-12 working days. Other countries we'll ship by Registered Air Mail. Arround delivery time as bellow for your referrence.Australia, Canada 10-18 working daysUK, France, Austria, Germany, Spain and other Europe countries: 10-25 working daysGreece, Malta 15-40 working daysRussian Federation, Italy, Brazil, Africa countries: 20-40 days due to customs restrictionThe estimated arrival time above just for your refference, Not guaranteed. We don't responsible for any customs duties. Terms of sales1.If the goods dead on arrival, Please take photoes for us confirmation and reach us first time for exchange or refund. 2.Buyers have purchased a wrong item or don't like the item received, Please return within 7 days and reach us first before returning. 3.Ailipu Technology Co., Ltd warrants our product to be free from manufacturers maintenance for 2 years. The warranty will not be covered under the following conditions : a) Out-of-warranty products. b) The product is modified without Ailipu Technology Co.,Ltd approval. c) Obvious attack of appearance whatever it is. d) The product is subjected to unusual physical or electrical stress, including physical damage, burnt components and broken connectors.4. The customer is responsible for returning the defective product at his own expense. About usAilipu Technology Co.,Ltd have 10 years history, is a professional manufacturer of surveillance system. We produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system. We can also OEM or customize products specially by customers' requirements.Contact usIf you have any questions,Please contact with us via eBay message! Our Service Officer will reply in 24 hours!(Excluding Weekends and Public Holidays) Working time:Our Duty TimeChina TimeUSA (pacific time) StartEndStartEndMondayAM 9:00PM 18:00SundayPM 17:00AM 2:00TuesdayAM 9:00PM 18:00MondayPM 17:00AM 2:00WednesdayAM 9:00PM 18:00TuesdayPM 17:00AM 2:00ThursdayAM 9:00PM 18:00WednesdayPM 17:00AM 2:00FridayAM 9:00PM 18:00ThursdayPM 17:00AM 2:00SaturdayOut of DutyFriday SaturdaySundayOut of DutySaturday Sunday During the duty time ,we can give you a quick respond. If we are out of work ,please kindly be patient and considerable to give us a little more time ,not just leave the neutral or negative feedback without communication ,thank you for your cooperation !
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | usb camera board |
| Brand | elp |
| Model | ELP-USBFHD05M-ARL36 |
| MPN | Does Not Apply |
| Resolution | 2mp |
| Connectivity | USB2.0 |
| Features | Infrared/Night Vision |
| High Definition: | 1080P |
| Lens (mm) | 3.6mm Lens |
| Subtype | usb |
| Smart Home Protocol | Thread |
| Surveillance Technology | CCTV |
| Smart Home Compatibility | Camera with usb |
| Compatible Brand | High difiniation |
| Location | Indoor Only |
| Maximum Resolution | 1920x1080 |
| Storage Capacity | camera with IR leds |
| Operating Sound Rating | night vision camera |
| Power | DC5V |
