Photorealistic RGB+TOF Depth camera CS30 3D solid state lidar robot vision
Photorealistic RGB+TOF Depth camera CS30 3D solid state lidar robot vision

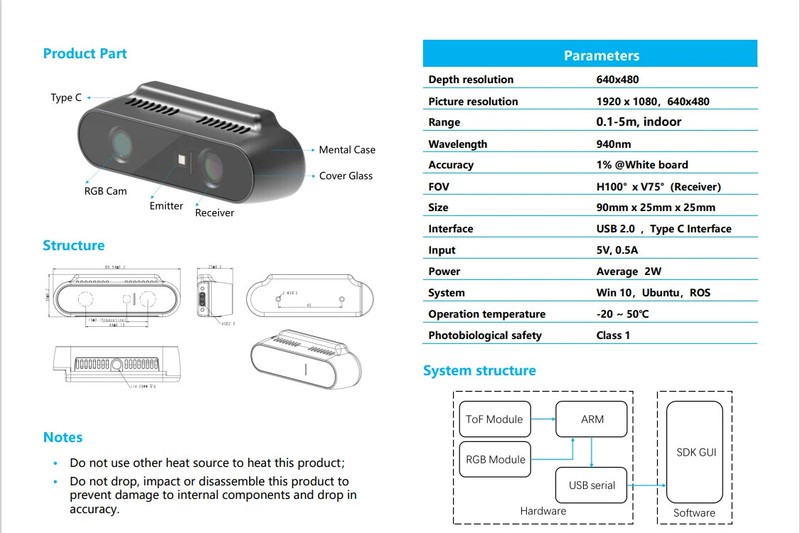

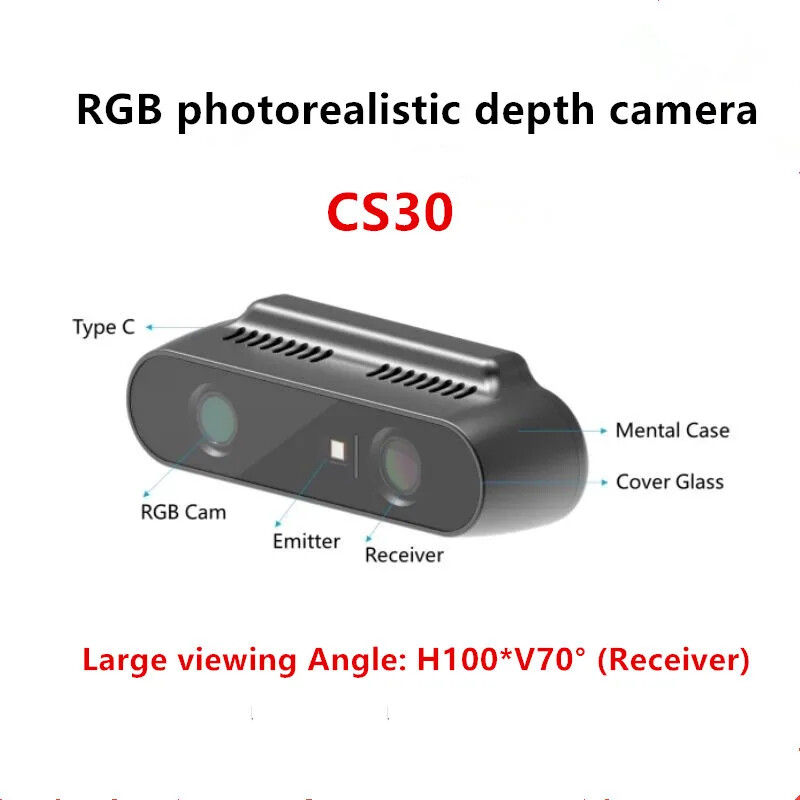

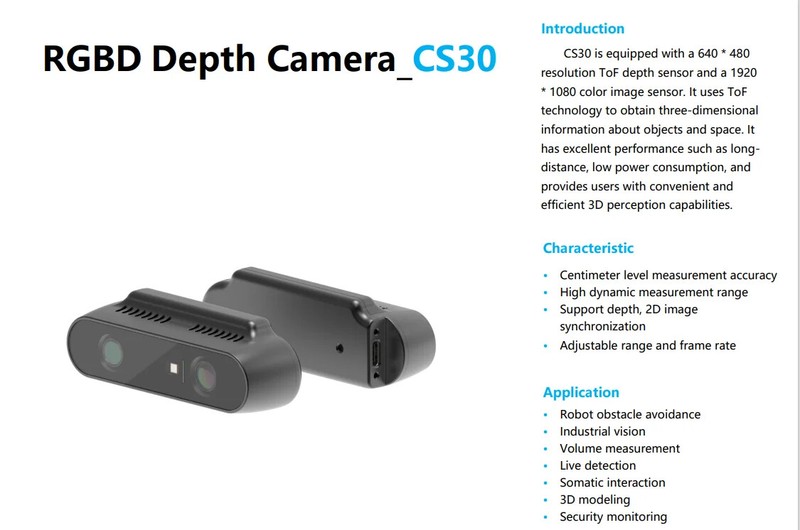

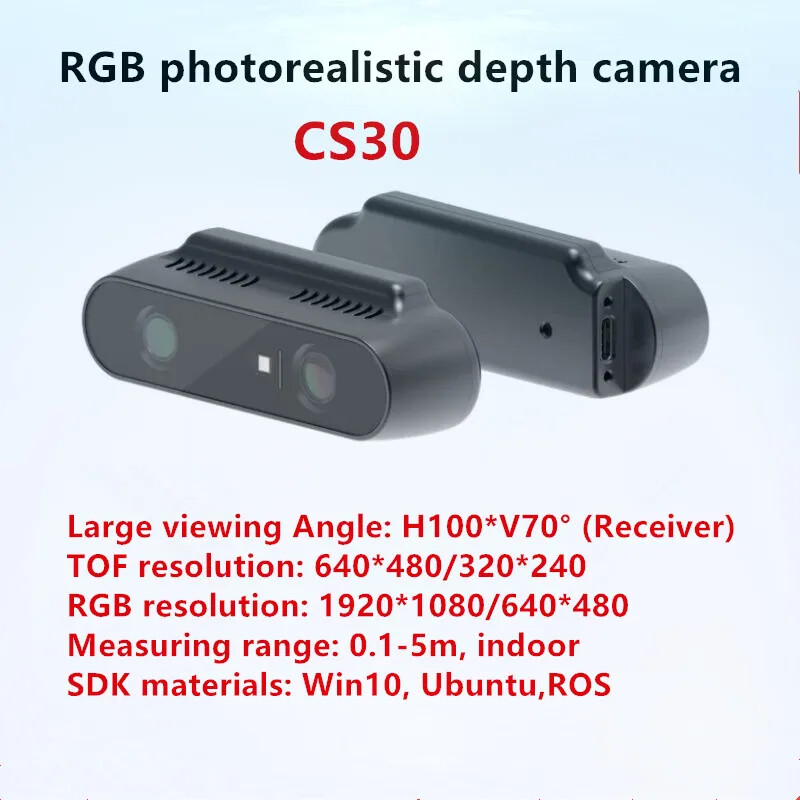

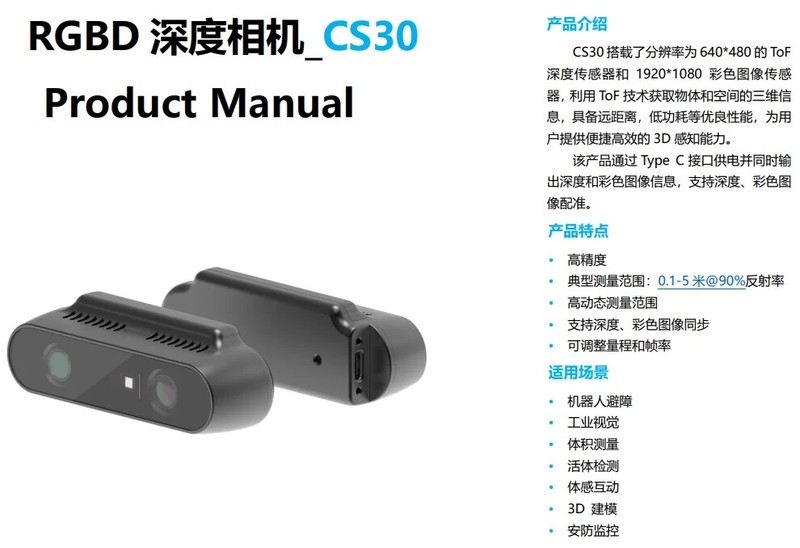

RGB photorealistic depth camera -CS30 Product introduction CS30 is equipped with a TOF depth sensor with a resolution of 640*480 and a color image sensor with a resolution of 1920*1080. It uses TOF technology to obtain three-dimensional information of objects and space. It has excellent performance such as long distance and low power consumption, providing users with convenient and efficient 3D perception ability. The product is powered by Type C interface and output depth and color image information at the same time, supporting depth and color image registration. Product features High precision Typical measurement range 0.1 -- 5 m @90% reflectivity High dynamic measurement range Support depth, color image synchronization Adjustable range and frame rate Applicable scenario Robot obstacle avoidance Industrial visual Live testing Somatosensory interaction 3 d modeling Security monitoring Technical parameters Depth map resolution: 640*480/320*240 Color map resolution: 1920*1080/640*480 Measuring range: 0.1-5m, indoor VCSEL wavelength: 90nm Accuracy: 1%@90% reflectivity Depth FOV: H100°*V70° (Receiver) Size: 90 mm * 25 mm * 25 mm Data output :USB 2.0 protocol, Type C interface Power supply mode: 5V,average0.6A Power consumption:average3W Operating system: Win10, Ubuntu,ROS Operating temperature: -10~50℃ Security: TBD
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | ZCMAKER |
| Type | Dome |
| Origin | Mainland China |
| Model | SmartCam |
| Certification | CE,RoHS |
| Communication Method | other |
| Model Number | CS30 |
RGB photorealistic depth camera -CS30 Product introduction CS30 is equipped with a TOF depth sensor with a resolution of 640*480 and a color image sensor with a resolution of 1920*1080. It uses TOF technology to obtain three-dimensional information of objects and space. It has excellent performance such as long distance and low power consumption, providing users with convenient and efficient 3D perception ability. The product is powered by Type C interface and output depth and color image information at the same time, supporting depth and color image registration. Product features High precision Typical measurement range 0.1 — 5 m @90% reflectivity High dynamic measurement range Support depth, color image synchronization Adjustable range and frame rate Applicable scenario Robot obstacle avoidance Industrial visual Live testing Somatosensory interaction 3 d modeling Security monitoring Technical parameters Depth map resolution: 640*480/320*240 Color map resolution: 1920*1080/640*480 Measuring range: 0.1-5m, indoor VCSEL wavelength: 90nm Accuracy: 1%@90% reflectivity Depth FOV: H100°*V70° (Receiver) Size: 90 mm * 25 mm * 25 mm Data output :USB 2.0 protocol, Type C interface Power supply mode: 5V,average0.6A Power consumption:average3W Operating system: Win10, Ubuntu,ROS Operating temperature: -10~50℃ Security: TBD
