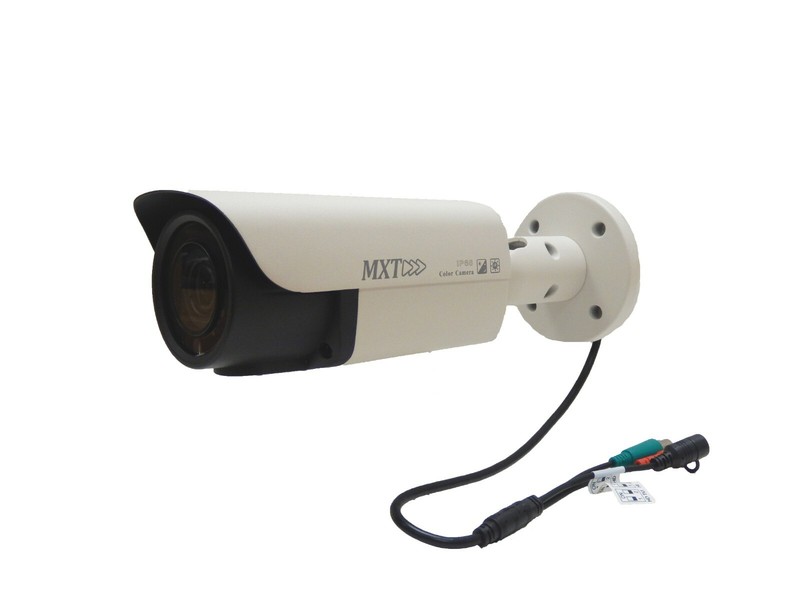

MXT 5MP 4-in-1 HD Analog CCTV Outdoor IR Bullet Camera Manual VF Lens 2.8-12mm
MXT 5MP 4-in-1 HD Analog CCTV Outdoor IR Bullet Camera Manual VF Lens 2.8-12mm
MXT 5 MP HD ANALOG CCTV IR OUTDOOR BULLET CAMERA with Manual Varifocal Lens 2.8-12 mm 4-in-1 HD-TVI/AHD/HD-CVI/CVBS compatible Model: HD4-5BU2812E Features: Compatible with HD DVRs: HD-TVI, AHD, HD-CVI and analog DVRs1/2.7" 5MP CMOS Sensor, 2688 x 1944 resolutionUp to 200 meters long distance and high speed real time monitoringWeatherproof, Indoor and Outdoor use, rated IP66Smart IR control, IR distance 30~35 metersOSD menu control up the coaxial cable (UTC)Manual Varifocal Lens 2.8 ~ 12 mmD-WDRDay/Night (ICR), AWB, AGC, BLC, 2D/3D-DNRSpecifications Model HD4-5BU2812E Camera Image Sensor 1/2.7" 5 Mega pixels CMOS Effective Pixels 2688(H) × 1944 (V) Video Resolution HD-TVI/ AHD: 5MP @20fps HD-CVI: 4MP @30 fps Electronic Shutter AUTO, 1/50 - 1/00,000s Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on Video System PAL/NTSC Video Output 1 channel, HD-TVI/ AHD/ HD-CVI /CVBS, selectable Video Switch 2 bit switch Day/Night Auto (ICR) / Color / Black & White Protection level IP66 OSD Menu OSD menu control up the coaxial cable (UTC) Other AWB, AGC, BLC, 3D NR IR Led IR Led SMD IR LEDs IR Distance 30 ~ 35 m Lens Focal length 2.8 - 12 mm VF lens General Power Supply 12 VDC ± 10% Power Consumption < 5 W Environmental Specifications Operating temperature: -20°C ~ +60°C, Relative humidity 10% - 90% Dimensions (mm) 276.5 x 82.9 x Ø92.4 mm Weight 2.2 lbs
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Model | HD4-5BU2812E |
| Country/Region Of Manufacture | China |
| Application | Indoor/Outdoor |
| Color Mode | Color Day, B&W Night |
| Type | Bullet |
| Features | Infrared/Night Vision |
| MPN | HD4-5BU2812E |
| Brand | MXT |
| Resolution (TVL) | 5MP |
| Varifocal Lens: | 2.8-12mm |
| Resolution | 5 Megapixels |
MXT 5 MP HD ANALOG CCTV IR OUTDOOR BULLET CAMERA with Manual Varifocal Lens 2.8-12 mm 4-in-1 HD-TVI/AHD/HD-CVI/CVBS compatible Model: HD4-5BU2812E Features: Compatible with HD DVRs: HD-TVI, AHD, HD-CVI and analog DVRs1/2.7″ 5MP CMOS Sensor, 2688 x 1944 resolutionUp to 200 meters long distance and high speed real time monitoringWeatherproof, Indoor and Outdoor use, rated IP66Smart IR control, IR distance 30~35 metersOSD menu control up the coaxial cable (UTC)Manual Varifocal Lens 2.8 ~ 12 mmD-WDRDay/Night (ICR), AWB, AGC, BLC, 2D/3D-DNRSpecifications Model HD4-5BU2812E Camera Image Sensor 1/2.7″ 5 Mega pixels CMOS Effective Pixels 2688(H) × 1944 (V) Video Resolution HD-TVI/ AHD: 5MP @20fps HD-CVI: 4MP @30 fps Electronic Shutter AUTO, 1/50 – 1/00,000s Min. Illumination 0.01Lux@F1.2(AGC ON), 0Lux IR on Video System PAL/NTSC Video Output 1 channel, HD-TVI/ AHD/ HD-CVI /CVBS, selectable Video Switch 2 bit switch Day/Night Auto (ICR) / Color / Black & White Protection level IP66 OSD Menu OSD menu control up the coaxial cable (UTC) Other AWB, AGC, BLC, 3D NR IR Led IR Led SMD IR LEDs IR Distance 30 ~ 35 m Lens Focal length 2.8 – 12 mm VF lens General Power Supply 12 VDC ± 10% Power Consumption < 5 W Environmental Specifications Operating temperature: -20°C ~ +60°C, Relative humidity 10% – 90% Dimensions (mm) 276.5 x 82.9 x Ø92.4 mm Weight 2.2 lbs
