KT&C E23NUP4 SECURITY CAMERA 750 TVL SONY 960H CCD, 23x22mm size, 4.3mm Pinhole
KT&C E23NUP4 SECURITY CAMERA 750 TVL SONY 960H CCD, 23x22mm size, 4.3mm Pinhole

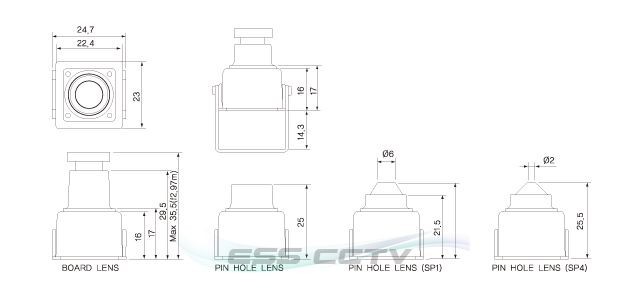

KPC-E23NUP KT&C Color Camera, 750 TVL, 960H EXview CCD OSD with joystick, 4.3mm Pinhole Lens Super Miniature size: 23x22mm * The stock images are for illustration purpose. Actual item may look different. 1/3” 960H SONY ExView HAD CCD II 750 TVL Horizontal Resolution 4.3mm Conical Pinhole Lens Digital Day & Night Size: 22.4 x 23 mm Min. Illumination of 0.15 Lux 2D DNR / BLC / HLC / ATR / OSD DC 12 V Power NTSC format camera LENS OPTIONS Type Board Lens Pinhole Lens P1 P3 P4 Focal Length 2.45 2.97 3.6 6 8 12 16 3.7 3.7 4.3 Aperture F2.0 F2.0 F2.0 F2.0 F2.0 F2.2 F2.5 F2.0 F2.0 F2.0 Angle of View 150˚ 130˚ 92˚ 53˚ 40˚ 28˚ 19˚ 90˚ 90˚ 78˚ Signal System NTSC Image Sensor 1/3” 960H SONY ExView HAD CCD II Scanning System 2:1 Interlace Horizontal Resolution 750TV Lines Scanning Frequency (H) 15.734 KHz Scanning Frequency (V) 59.94 Hz Total Pixels (H x V) 1020 x 508 Effective Pixels (H x V) 976 x 494 Synchronization Internal Lens 3.7 or 4.3mm Lens Type Pinhole Lens S/N More than 50 dB (AGC: Off, DNR: On) Gamma r = 0.45 Min. Illumination 0.15 Lux Shutter Speed 1/60 ~ 1/100,000 sec Day & Night Digital Day & Night IR LED N/A IR LED Operation N/A Day & Night Function Auto, Color, B/W IP Rating N/A Video Output Level 1 Vp-p Composite (75Ω) On-Screen Display (OSD) Built-in (Inner Key / Joystick) BLC Off, BLC, HLC DNR 2D DNR ATR On / Off (Level Adjustable) White Balance ATW, Push, User1, User2, Anti CR, Manual, Push-lock Privacy Masking 4 Zones Mirror On / Off Motion Detection 4 Zones WDR N/A Face Detection N/A Digital Zoom Ratio N/A Digital Slow Shutter N/A Other Function Brightness, Contrast, Sharpness, HUE, Gain Language Option English, Japanese, German, Russian, Portuguese, Spanish, Chinese Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F) Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F) Humidity Less than 80% RH Power Supply DC 12 V (±10%), Max 70 mA External Control N/A Dimension 22.4 x 23 mm (0.9 x 0.9 inch) Weight 76 g (0.2 lb) We welcome ALL Wholesale orders: Please contact us for special discounts on quantity / bulk orders. We also have special price for resellers and installers !! For any questions or inquiries, please contact ebay ID: esscctv Shipping Terms Item normally gets shipped out within 24 hours. Item will be normally shipped via UPS Ground, but we reserve the right to ship smaller items with USPS (either by First Class Mail or Priority Mail). All UPS shipments require a physical address International shipping is available. Please note all of our analog cameras are NTSC format If provided, FREE shipping applies to continental US states only. ESS CCTV is not responsible for all customs, taxes, and duties occuring on international orders Warranty and Returns ALL KT&C items are covered by 2 year manufacturer warranty. The warrany only covers failure due to defects in material and workmanship by the manufacturer. The warranty does not cover damage due to everyday usage You may return merchandise purchased from ESS CCTV for a refund or a replacement. All product returns requires a RMA (return merchandise authorization) number. The RMA number should be written on your returning pacakge. Please contact us to issue your RMA number All returned items for a refund/credit should be in its original, "resalable" condition. You may not be responsible for a refund or credit otherwise. ESS CCTV follows ebay's 14 days return policy. Items should be returned within 14 days from the order date to receive a refund. Items should be returned within 30 days from the received date for an exchange, replacement, or a store credit. Buyers are responsible for the shipping cost on all returns except for DOA (dead on arrival) products. 15% restocking fee is applied to any non-defective returns for a refund. . If your package is damaged upon arrival, please refuse the the delivery and contact us immediately. All shipping-related claims should be made within 3 calendar days after the date of receipt. Accessories and Expendables will not be covered under the warranty nor accepted for exchange or returns Contact us ebay ID: esscctv Monday to Friday 10:00 AM ~ 5:00 PM PST 2140 W Olympic Blvd. Ste 222, Los Angeles, CA 90006 213-500-7736
Specifications
| Restocking Fee | 15% |
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | KPC-E23NUP4 |
| Resolution | 750 TV Lines |
| Lens | 4.3mm Pinhole Lens |
| Film Type | Color |
| Model | KPC-E23NUP4 |
| Brand | KTNC USA |
| Type | Pinhole |
KPC-E23NUP KT&C Color Camera, 750 TVL, 960H EXview CCD OSD with joystick, 4.3mm Pinhole Lens Super Miniature size: 23x22mm * The stock images are for illustration purpose. Actual item may look different. 1/3” 960H SONY ExView HAD CCD II 750 TVL Horizontal Resolution 4.3mm Conical Pinhole Lens Digital Day & Night Size: 22.4 x 23 mm Min. Illumination of 0.15 Lux 2D DNR / BLC / HLC / ATR / OSD DC 12 V Power NTSC format camera LENS OPTIONS Type Board Lens Pinhole Lens P1 P3 P4 Focal Length 2.45 2.97 3.6 6 8 12 16 3.7 3.7 4.3 Aperture F2.0 F2.0 F2.0 F2.0 F2.0 F2.2 F2.5 F2.0 F2.0 F2.0 Angle of View 150˚ 130˚ 92˚ 53˚ 40˚ 28˚ 19˚ 90˚ 90˚ 78˚ Signal System NTSC Image Sensor 1/3” 960H SONY ExView HAD CCD II Scanning System 2:1 Interlace Horizontal Resolution 750TV Lines Scanning Frequency (H) 15.734 KHz Scanning Frequency (V) 59.94 Hz Total Pixels (H x V) 1020 x 508 Effective Pixels (H x V) 976 x 494 Synchronization Internal Lens 3.7 or 4.3mm Lens Type Pinhole Lens S/N More than 50 dB (AGC: Off, DNR: On) Gamma r = 0.45 Min. Illumination 0.15 Lux Shutter Speed 1/60 ~ 1/100,000 sec Day & Night Digital Day & Night IR LED N/A IR LED Operation N/A Day & Night Function Auto, Color, B/W IP Rating N/A Video Output Level 1 Vp-p Composite (75Ω) On-Screen Display (OSD) Built-in (Inner Key / Joystick) BLC Off, BLC, HLC DNR 2D DNR ATR On / Off (Level Adjustable) White Balance ATW, Push, User1, User2, Anti CR, Manual, Push-lock Privacy Masking 4 Zones Mirror On / Off Motion Detection 4 Zones WDR N/A Face Detection N/A Digital Zoom Ratio N/A Digital Slow Shutter N/A Other Function Brightness, Contrast, Sharpness, HUE, Gain Language Option English, Japanese, German, Russian, Portuguese, Spanish, Chinese Operating Temperature -10 °C ~ 50 °C (14 °F ~ 122 °F) Storage Temperature -20 °C ~ 60 °C (-4 °F ~ 140 °F) Humidity Less than 80% RH Power Supply DC 12 V (±10%), Max 70 mA External Control N/A Dimension 22.4 x 23 mm (0.9 x 0.9 inch) Weight 76 g (0.2 lb) We welcome ALL Wholesale orders: Please contact us for special discounts on quantity / bulk orders. We also have special price for resellers and installers !! For any questions or inquiries, please contact ebay ID: esscctv Shipping Terms Item normally gets shipped out within 24 hours. Item will be normally shipped via UPS Ground, but we reserve the right to ship smaller items with USPS (either by First Class Mail or Priority Mail). All UPS shipments require a physical address International shipping is available. Please note all of our analog cameras are NTSC format If provided, FREE shipping applies to continental US states only. ESS CCTV is not responsible for all customs, taxes, and duties occuring on international orders Warranty and Returns ALL KT&C items are covered by 2 year manufacturer warranty. The warrany only covers failure due to defects in material and workmanship by the manufacturer. The warranty does not cover damage due to everyday usage You may return merchandise purchased from ESS CCTV for a refund or a replacement. All product returns requires a RMA (return merchandise authorization) number. The RMA number should be written on your returning pacakge. Please contact us to issue your RMA number All returned items for a refund/credit should be in its original, “resalable” condition. You may not be responsible for a refund or credit otherwise. ESS CCTV follows ebay’s 14 days return policy. Items should be returned within 14 days from the order date to receive a refund. Items should be returned within 30 days from the received date for an exchange, replacement, or a store credit. Buyers are responsible for the shipping cost on all returns except for DOA (dead on arrival) products. 15% restocking fee is applied to any non-defective returns for a refund. . If your package is damaged upon arrival, please refuse the the delivery and contact us immediately. All shipping-related claims should be made within 3 calendar days after the date of receipt. Accessories and Expendables will not be covered under the warranty nor accepted for exchange or returns Contact us ebay ID: esscctv Monday to Friday 10:00 AM ~ 5:00 PM PST 2140 W Olympic Blvd. Ste 222, Los Angeles, CA 90006 213-500-7736
