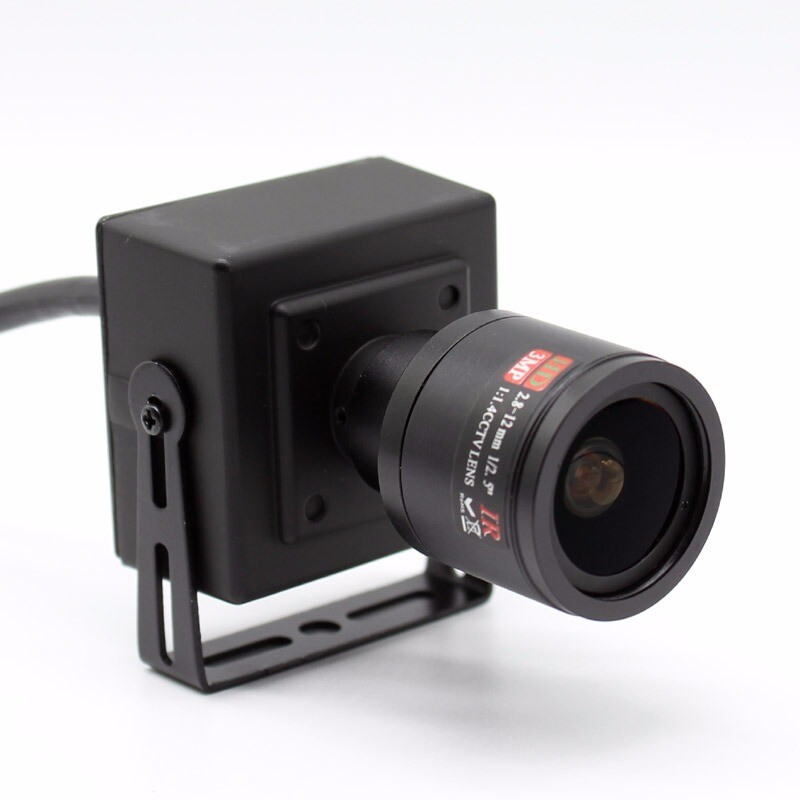

HD Starlight 2mp Sony IMX322+2441 AHD CVBs 960H Security CCTV Camera + 2.8-12mm
HD Starlight 2mp Sony IMX322+2441 AHD CVBs 960H Security CCTV Camera + 2.8-12mm
1/2.9" SONY IMX322 4in1 AHD CVBs(960H) TVI CVI Starlight low illumination CCTV Camera The default is standard AHD camera. How to shift AHD / CVBS Signal by OSD? Left: CVBs(960H) Right: AHD (Press button in different direction for 5 seconds to be related signal) PAL/NTSC in one: Set on OSD menuFeature: 1/2.9" AHD SONY IMX322 +NVP2441 Senor; Video Resolution: 1920*1080; Advanced Y/C signal separation technology, analog filtering technology and 3D noise reduction technology; NTSC&PAL in one, AHD-H, AHD-M, 960H mode 3-in-1, Switch freely;Lens: 2.8-12mm Lens * This camera have 4 MODE for video output: 1080p AHD, 1080p CVI, 1080p TVI and CVBS * Default MODE is AHD 1080P MODE, please change to corresponding VIDEO MODE from OSD Main Menu according to your DVR.The camera can change to AHD, TVI, CVI and CVBs mode through the OSD cable button:1. Enter the OSD "main menu", please see the picture. 2. Stay "EXPOSURE", then press the "right" button three times, then enter "EXPOSURE", please see the picture, to "HIDDEN" menu 3. Press "right" or "left" button, find out the mode you want, please see the picture, then enter the mode. 4. Enter "APPLY", the camera change to other mode. Specifications:Sensor1/2.9" Sony IMX322 sensor Starlight low illumination Video ResolutionPAL/NTSC: 1920*1080Minimum IlluminationColor: 0.0001Lux / (F1.2, AGC ON), Black&White: 0.0001Lux / (F1.2, AGC ON), 0Lux with IRPhotosensitive Resistance1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkageShutter1/50(1/60) seconds to 1/10,000 secondsDay and Night FunctionSupport IR-CUTLens Size2.8-12mm lensSynchronous Modeinter-syncNoise-signal Ratio>58dBTemperature and Humidity-10?~60?, humidity is less than 90% (no condensation)PowerDC 12V/1AConsumption<5WWeight0.25KG Packaging included: 1x HD 1080P AHD CVBs 4in1 SONY Starlight CCTV Camera Warranty Term: One Year Warranty Payment:1. We accept Paypal, other ways please contact us.2. If you need to buy more goods, but the price is not cheap enough, or you did not find them in our store, please contact us!3. Buyers response for all tax or VAT under any circumstances. Shipping: 1. The item will be shipped within 1-3 business days after payment.2. All products have been checked and packaged in good condition before dispatch. 3. The package will be shipped by SpeedPak or China post, if you need express shipping, please contact us to check the express shipping cost. If your order is large enough, we will ship it by DHL, Fedex, UPS or EMS.4. We provide 12 months Warranty, if the item is defective, please notify us within 5 days of delivery. We provide replacement service for defective items. Feedback:1. We will do a positive feedback automatically after receiving your positive feedback. We would appreciate your positive feedback. 2. If you are not satisfied with our product or service, please E-mail me with your problem before leaving a negative/neutral feedback or open a dispute, we work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. We care about our valued customers, and will always be willing to help you. So if you have any problems, please E-mail us immediately. inkfrog terapeak
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Type | Box/Body |
| Color Mode | Color |
| MPN | C93D4017 |
| Brand | Unbranded/Generic |
| Country/Region Of Manufacture | China |
| Model | c93 |
| Features | Wide Angle |
| Surveillance Technology | AHD |
| Location | Indoor Only |
| Maximum Resolution | 1920x1080 |
| Manufacturer Warranty | 1 year |
| Voltage | 12 V |
1/2.9″ SONY IMX322 4in1 AHD CVBs(960H) TVI CVI Starlight low illumination CCTV Camera The default is standard AHD camera. How to shift AHD / CVBS Signal by OSD? Left: CVBs(960H) Right: AHD (Press button in different direction for 5 seconds to be related signal) PAL/NTSC in one: Set on OSD menuFeature: 1/2.9″ AHD SONY IMX322 +NVP2441 Senor; Video Resolution: 1920*1080; Advanced Y/C signal separation technology, analog filtering technology and 3D noise reduction technology; NTSC&PAL in one, AHD-H, AHD-M, 960H mode 3-in-1, Switch freely;Lens: 2.8-12mm Lens * This camera have 4 MODE for video output: 1080p AHD, 1080p CVI, 1080p TVI and CVBS * Default MODE is AHD 1080P MODE, please change to corresponding VIDEO MODE from OSD Main Menu according to your DVR.The camera can change to AHD, TVI, CVI and CVBs mode through the OSD cable button:1. Enter the OSD “main menu”, please see the picture. 2. Stay “EXPOSURE”, then press the “right” button three times, then enter “EXPOSURE”, please see the picture, to “HIDDEN” menu 3. Press “right” or “left” button, find out the mode you want, please see the picture, then enter the mode. 4. Enter “APPLY”, the camera change to other mode. Specifications:Sensor1/2.9″ Sony IMX322 sensor Starlight low illumination Video ResolutionPAL/NTSC: 1920*1080Minimum IlluminationColor: 0.0001Lux / (F1.2, AGC ON), Black&White: 0.0001Lux / (F1.2, AGC ON), 0Lux with IRPhotosensitive Resistance1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkageShutter1/50(1/60) seconds to 1/10,000 secondsDay and Night FunctionSupport IR-CUTLens Size2.8-12mm lensSynchronous Modeinter-syncNoise-signal Ratio>58dBTemperature and Humidity-10?~60?, humidity is less than 90% (no condensation)PowerDC 12V/1AConsumption<5WWeight0.25KG Packaging included: 1x HD 1080P AHD CVBs 4in1 SONY Starlight CCTV Camera Warranty Term: One Year Warranty Payment:1. We accept Paypal, other ways please contact us.2. If you need to buy more goods, but the price is not cheap enough, or you did not find them in our store, please contact us!3. Buyers response for all tax or VAT under any circumstances. Shipping: 1. The item will be shipped within 1-3 business days after payment.2. All products have been checked and packaged in good condition before dispatch. 3. The package will be shipped by SpeedPak or China post, if you need express shipping, please contact us to check the express shipping cost. If your order is large enough, we will ship it by DHL, Fedex, UPS or EMS.4. We provide 12 months Warranty, if the item is defective, please notify us within 5 days of delivery. We provide replacement service for defective items. Feedback:1. We will do a positive feedback automatically after receiving your positive feedback. We would appreciate your positive feedback. 2. If you are not satisfied with our product or service, please E-mail me with your problem before leaving a negative/neutral feedback or open a dispute, we work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. We care about our valued customers, and will always be willing to help you. So if you have any problems, please E-mail us immediately. inkfrog terapeak
