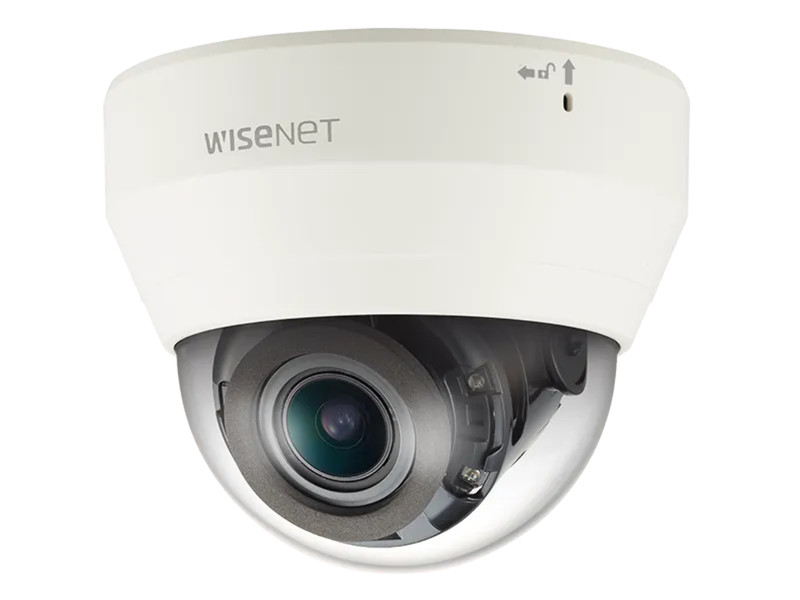

Hanwha Wisenet QND-7080R 4MP Network IP Mini Dome Camera
Hanwha Wisenet QND-7080R 4MP Network IP Mini Dome Camera
QND-7080R KEY FEATURES: Max. 4megapixel resolution2.8 ~ 12mm (4.3x) motorized varifocal lensMax. 20fps@4M, Max. 30fps@2M all resolutionsH.265, H.264, MJPEG codec supportedDay & Night (ICR), WDR (120dB)Motion detection, Tampering, Defocus detectionmicro SD/SDHC/SDXC memory slot (Max. 128GB), PoE / 12V DCIR viewable length 20mHallway view supportLDC support (Lens distortion correction) SPECIFICATIONS: VIDEO Imaging Device: 1/3" 4M CMOS Total Pixels: 2,720(H) x 1,536(V) Effective Pixels: 2,688(H) x 1,520(V) Scanning System: Progressive Min. Illumination: Color : 0.15Lux (30IRE), B/W : 0Lux (IR LED on) S / N Ratio: 50dBLENS Focal Length (Zoom Ratio): 2.8 ~ 12mm (4.3x) motorized varifocalMax. Aperture Ratio: F1.4 Angular Field of View: H : 109.7˚ ~ 26.0˚ / V : 60.8˚ ~ 15.2˚ / D : 131.3˚ ~ 30.1˚Focus Control: Simple focus (Motorized V/F) / Manual, Remote control via networkLens Type: DC auto irisMount Type: Board type PAN / TILT / ROTATE Pan / Tilt / Rotate Range: 0° ~ 350° / 0° ~ 67° / 0° ~ 355° OPERATIONAL IR Viewable Length: 20m (65.62ft)Camera Title: Off / On (Displayed up to 20 characters per line)Day & Night: True Day & NightBacklight Compensation: Off / BLC / WDRWide Dynamic Range: 120dBDigital Noise Reduction: SSNR (Off / On)Motion Detection: Off / On (4ea polygonal zones)Privacy Masking Off / On (6ea rectangular zones)Gain Control: Off / Low / Middle / HighWhite Balance: ATW / AWC / Manual / Indoor / OutdoorLDC (Lens distortion correction): Off / On (5 levels with min / max)Electronic Shutter Speed: Minimum / Maximum / Anti flickerFlip / Mirror: Flip / Mirror / Hallway viewIntelligent Video Analytics: Motion detection with metadata, Tampering, Defocus detectionAlarm I/O: Input 1 / Output 1Alarm Triggers: Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detectionAlarm Events: File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External outputPixel Counter: Support (Plug-in viewer only) NETWORK Ethernet: RJ-45 (10/100BASE-T)Video Compression Format: H.265, H.264, MJPEGResolution: 2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240Max. Framerate : H.265/H.264 : Max. 20fps at 4M, Max. 30fps at 2M all resolutions, MJPEG : Max. 15fpsSmart Codec: WiseStreamVideo Quality Adjustment: H.265/H.264 : Target bitrate level control, MJPEG : Quality level controlBitrate Control Method: H.265/H.264 : CBR or VBR, MJPEG : VBRStreaming Capability: Multiple streaming (Up to 3 profiles)Audio In: Selectable (Built-in microphone), Supported voltage: 2.5VDC (4mA), Input impedance: 2K OhmAudio Compression Format: G.711 u-law / G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40KbpsAudio Communication: Uni-directional audioIP: IPv4, IPv6Protocol: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, BonjourSecurity: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authenticationStreaming Method: Unicast / MulticastMax. User Access: 6 users at unicast modeStorage: micro SD/SDHC/SDXC (Max. 128GB), NAS ENVIRONMENTAL Operating Temperature / Humidity: -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RHStorage Temperature / Humidity: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH ELECTRICAL Input Voltage / Current PoE: (IEEE802.3af, Class3) / 12V DCPower Consumption Max. 7.2W (PoE), Max. 6.4W (12V DC) MECHANICAL Color / Material: Ivory / PlasticDimensions (WxH): Ø119.8 x 98.8mm (Ø4.72" x 3.89")Weight: 355g (0.78 lb)
Specifications
| Return Shipping Will Be Paid By | Buyer |
| Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Brand | Wisenet |
| Type | Camera |
| Maximum Resolution | 2592 x 1520 |
| Items Included | Camera |
| Model | QND-7080R |
| Connectivity | Wired |
| MPN | QND-7080R |
| Features | Night Vision |
| Operating Sound Rating | 120 dB |
| Surveillance Technology | IP/Network |
| Location | Indoor Only |
QND-7080R KEY FEATURES: Max. 4megapixel resolution2.8 ~ 12mm (4.3x) motorized varifocal lensMax. 20fps@4M, Max. 30fps@2M all resolutionsH.265, H.264, MJPEG codec supportedDay & Night (ICR), WDR (120dB)Motion detection, Tampering, Defocus detectionmicro SD/SDHC/SDXC memory slot (Max. 128GB), PoE / 12V DCIR viewable length 20mHallway view supportLDC support (Lens distortion correction) SPECIFICATIONS: VIDEO Imaging Device: 1/3″ 4M CMOS Total Pixels: 2,720(H) x 1,536(V) Effective Pixels: 2,688(H) x 1,520(V) Scanning System: Progressive Min. Illumination: Color : 0.15Lux (30IRE), B/W : 0Lux (IR LED on) S / N Ratio: 50dBLENS Focal Length (Zoom Ratio): 2.8 ~ 12mm (4.3x) motorized varifocalMax. Aperture Ratio: F1.4 Angular Field of View: H : 109.7˚ ~ 26.0˚ / V : 60.8˚ ~ 15.2˚ / D : 131.3˚ ~ 30.1˚Focus Control: Simple focus (Motorized V/F) / Manual, Remote control via networkLens Type: DC auto irisMount Type: Board type PAN / TILT / ROTATE Pan / Tilt / Rotate Range: 0° ~ 350° / 0° ~ 67° / 0° ~ 355° OPERATIONAL IR Viewable Length: 20m (65.62ft)Camera Title: Off / On (Displayed up to 20 characters per line)Day & Night: True Day & NightBacklight Compensation: Off / BLC / WDRWide Dynamic Range: 120dBDigital Noise Reduction: SSNR (Off / On)Motion Detection: Off / On (4ea polygonal zones)Privacy Masking Off / On (6ea rectangular zones)Gain Control: Off / Low / Middle / HighWhite Balance: ATW / AWC / Manual / Indoor / OutdoorLDC (Lens distortion correction): Off / On (5 levels with min / max)Electronic Shutter Speed: Minimum / Maximum / Anti flickerFlip / Mirror: Flip / Mirror / Hallway viewIntelligent Video Analytics: Motion detection with metadata, Tampering, Defocus detectionAlarm I/O: Input 1 / Output 1Alarm Triggers: Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detectionAlarm Events: File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External outputPixel Counter: Support (Plug-in viewer only) NETWORK Ethernet: RJ-45 (10/100BASE-T)Video Compression Format: H.265, H.264, MJPEGResolution: 2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240Max. Framerate : H.265/H.264 : Max. 20fps at 4M, Max. 30fps at 2M all resolutions, MJPEG : Max. 15fpsSmart Codec: WiseStreamVideo Quality Adjustment: H.265/H.264 : Target bitrate level control, MJPEG : Quality level controlBitrate Control Method: H.265/H.264 : CBR or VBR, MJPEG : VBRStreaming Capability: Multiple streaming (Up to 3 profiles)Audio In: Selectable (Built-in microphone), Supported voltage: 2.5VDC (4mA), Input impedance: 2K OhmAudio Compression Format: G.711 u-law / G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40KbpsAudio Communication: Uni-directional audioIP: IPv4, IPv6Protocol: TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, BonjourSecurity: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authenticationStreaming Method: Unicast / MulticastMax. User Access: 6 users at unicast modeStorage: micro SD/SDHC/SDXC (Max. 128GB), NAS ENVIRONMENTAL Operating Temperature / Humidity: -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RHStorage Temperature / Humidity: -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH ELECTRICAL Input Voltage / Current PoE: (IEEE802.3af, Class3) / 12V DCPower Consumption Max. 7.2W (PoE), Max. 6.4W (12V DC) MECHANICAL Color / Material: Ivory / PlasticDimensions (WxH): Ø119.8 x 98.8mm (Ø4.72″ x 3.89″)Weight: 355g (0.78 lb)
