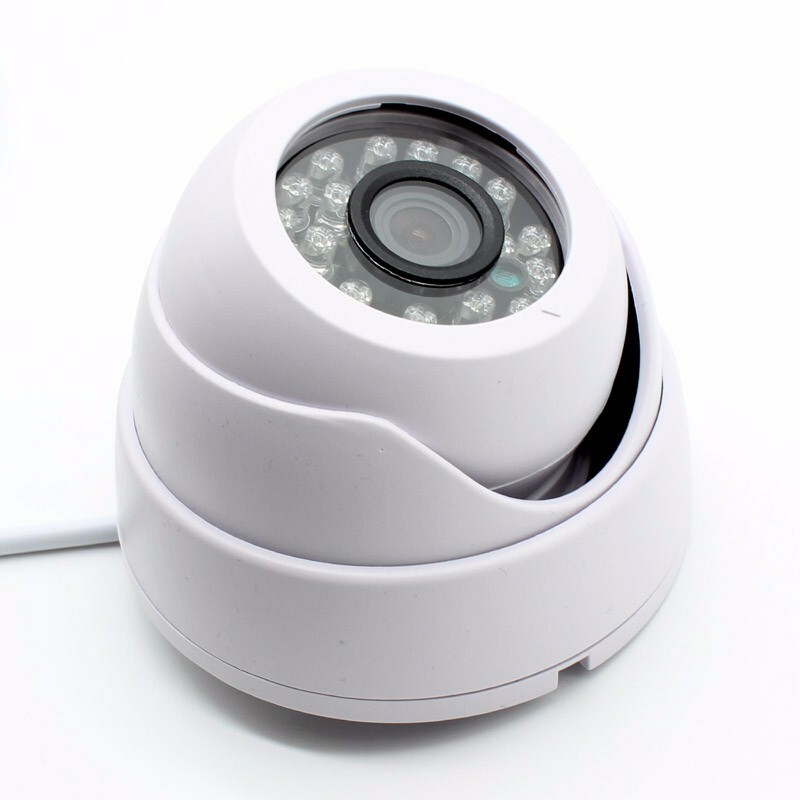

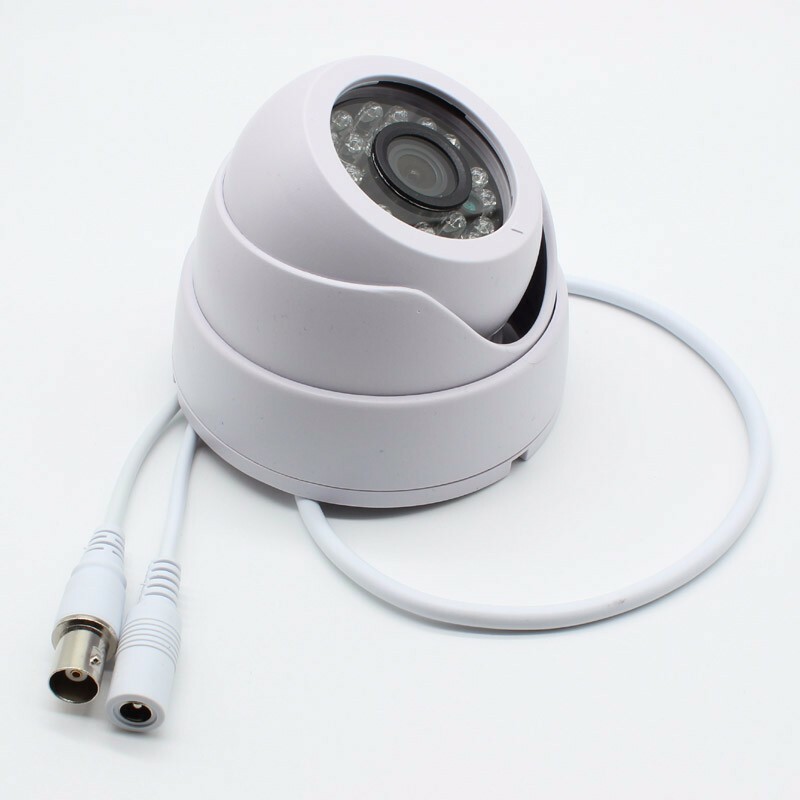

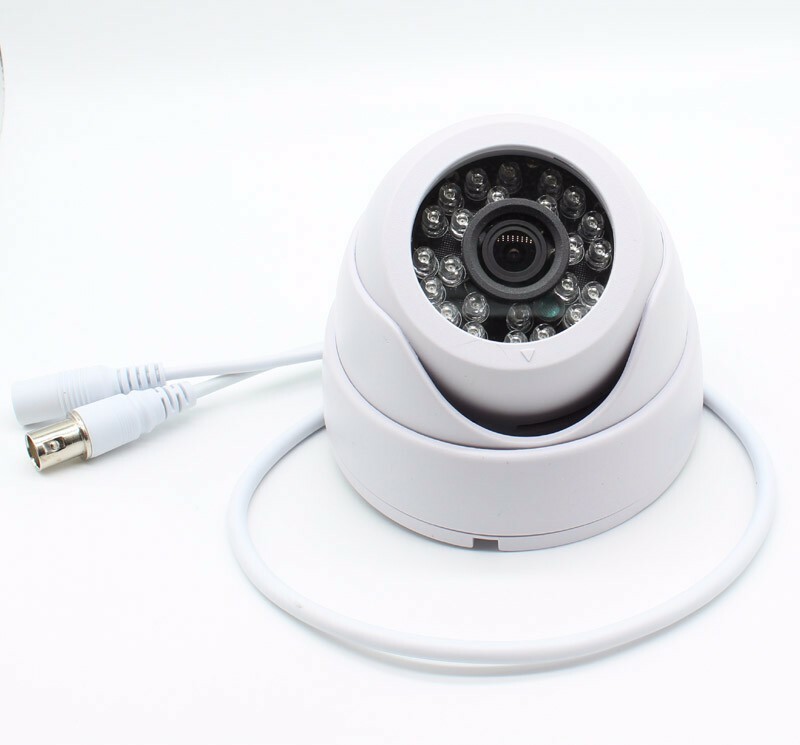

Dome 4MP HD 4in1 AHD TVI CVI CVBs Security cctv camera 24IR Leds Indoor Plastic
Dome 4MP HD 4in1 AHD TVI CVI CVBs Security cctv camera 24IR Leds Indoor Plastic
HD 4.0MP AHD Coaxial high-definition 4in1 CCTV Camera Outdoor 4MP AHD Camera MUST be used with 4MP or 5MP AHD DVRIt Cannot work with standard 2MP AHD DVRPlease make sure your AHD DVR supports 4MP AHD camera before purchasing. Default signal is HD AHD, How to shift AHD/CVI/TVI/CVBS Signal by OSD? UP: AHD Down: CVI Left: TVI Right: CVBS (Press button in different direction for 5 seconds to be related signal) PAL/NTSC in one 4.0MP TVI / CVI / AHD / CVBS 4 in 1 Security Camera, Compatible with 4MP-AHD/CVI/TVI/CVBS DVR. Default signal is HD AHD. If you are using other DVR, you need to switch to other signal firstly.Feature: * 1/3" 4MP use GC4603 4million progressive scan CMOS Sensor, * Resolution: 2688(H)*1520(V) * TV system: NTSC / PAL in one * Video Output: HD-AHD (1080p), (AHD, TVI, CVI, CVBS) * Capture moving images, AHD Excellent performance, with clear and bright image * Illumination: 0.01Lux/(F1.2,AGC ON), 0LUX with IR * D/N Switch: support IR-CUT switch, CDS external control * Support OSD menu control, Suitable for user-defined Settings. * Support DWDR. Support UTC function * Adaptive Digital Noise Reduction, 2D-DNR, 3D-DNR * 24IR Leds * Weatherproof: No * Power supply: DC12V/1A (don't include) * Material : Plastic Lens: 3.6mm Lens, Optional: 2.8mm/3.6mm/4mm/6mm/8mm/12mm(If you need to choose the lens, please leave message when you buy it) * This camera have 4 MODE for video output: AHD, CVI, TVI and CVBS * Default MODE is AHD MODE, please change to corresponding VIDEO MODE by OSD cable according to your DVR. Specifications:Sensor 1/3" FH8538M+GC4603 Format PAL/NTSC Effective Pixel 2688(H)*1520(V) FPS: 1080P/25fps, 1080P/30fps Illumination 0.01Lux/(F1.2, AGC ON), 0LUX with IR Shutter AUTO D/N Mode EXT (Default) /AUTO/COLOR/B/W Synchronously Internal Video Output AHD/TVI/CVI/CVBS switch Exposure Shutter/AGC/Brightness/DWDRWhite BalanceATW/MWBD/N Mode Infrared/Internal AUTO/Color/B&W AdjustSharpness/Display Screen/Edge DPC/Output modeLanguage CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JAP/ENG Operation Temperature -20? to 60? Working Humidity Relative humidity less than 90 % Power DC 12V / 1A Weight 0.25kg Packaging included: 1x HD 4mp AHD TVI CVI CVBS 4in1 CCTV Camera Warranty Term: One Year Warranty Payment:1. We accept Paypal, other ways please contact us.2. If you need to buy more goods, but the price is not cheap enough, or you did not find them in our store, please contact us!3. Buyers response for all tax or VAT under any circumstances. Shipping: 1. The item will be shipped within 1-3 business days after payment.2. All products have been checked and packaged in good condition before dispatch. 3. The package will be shipped by China post, if you need express shipping, please contact us to check the express shipping cost. If your order is large enough, we will ship it by DHL, Fedex, UPS or EMS.4. We provide 12 months Warranty, if the item is defective, please notify us within 5 days of delivery. We provide replacement service for defective items. Feedback:1. We will do a positive feedback automatically after receiving your positive feedback. We would appreciate your positive feedback. 2. If you are not satisfied with our product or service, please E-mail me with your problem before leaving a negative/neutral feedback or open a dispute, we work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. We care about our valued customers, and will always be willing to help you. So if you have any problems, please E-mail us immediately. inkfrog terapeak
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Connectivity | Wired |
| Color Mode | Color Day, B&W Night |
| MPN | C06D9036 |
| Brand | Unbranded/Generic |
| Country/Region Of Manufacture | China |
| Surveillance Technology | AHD |
| Resolution | 4 Megapixels |
| Model | c06 |
| Type | Dome |
| Application | Indoor Only |
| Features | Infrared/Night Vision |
HD 4.0MP AHD Coaxial high-definition 4in1 CCTV Camera Outdoor 4MP AHD Camera MUST be used with 4MP or 5MP AHD DVRIt Cannot work with standard 2MP AHD DVRPlease make sure your AHD DVR supports 4MP AHD camera before purchasing. Default signal is HD AHD, How to shift AHD/CVI/TVI/CVBS Signal by OSD? UP: AHD Down: CVI Left: TVI Right: CVBS (Press button in different direction for 5 seconds to be related signal) PAL/NTSC in one 4.0MP TVI / CVI / AHD / CVBS 4 in 1 Security Camera, Compatible with 4MP-AHD/CVI/TVI/CVBS DVR. Default signal is HD AHD. If you are using other DVR, you need to switch to other signal firstly.Feature: * 1/3″ 4MP use GC4603 4million progressive scan CMOS Sensor, * Resolution: 2688(H)*1520(V) * TV system: NTSC / PAL in one * Video Output: HD-AHD (1080p), (AHD, TVI, CVI, CVBS) * Capture moving images, AHD Excellent performance, with clear and bright image * Illumination: 0.01Lux/(F1.2,AGC ON), 0LUX with IR * D/N Switch: support IR-CUT switch, CDS external control * Support OSD menu control, Suitable for user-defined Settings. * Support DWDR. Support UTC function * Adaptive Digital Noise Reduction, 2D-DNR, 3D-DNR * 24IR Leds * Weatherproof: No * Power supply: DC12V/1A (don’t include) * Material : Plastic Lens: 3.6mm Lens, Optional: 2.8mm/3.6mm/4mm/6mm/8mm/12mm(If you need to choose the lens, please leave message when you buy it) * This camera have 4 MODE for video output: AHD, CVI, TVI and CVBS * Default MODE is AHD MODE, please change to corresponding VIDEO MODE by OSD cable according to your DVR. Specifications:Sensor 1/3″ FH8538M+GC4603 Format PAL/NTSC Effective Pixel 2688(H)*1520(V) FPS: 1080P/25fps, 1080P/30fps Illumination 0.01Lux/(F1.2, AGC ON), 0LUX with IR Shutter AUTO D/N Mode EXT (Default) /AUTO/COLOR/B/W Synchronously Internal Video Output AHD/TVI/CVI/CVBS switch Exposure Shutter/AGC/Brightness/DWDRWhite BalanceATW/MWBD/N Mode Infrared/Internal AUTO/Color/B&W AdjustSharpness/Display Screen/Edge DPC/Output modeLanguage CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JAP/ENG Operation Temperature -20? to 60? Working Humidity Relative humidity less than 90 % Power DC 12V / 1A Weight 0.25kg Packaging included: 1x HD 4mp AHD TVI CVI CVBS 4in1 CCTV Camera Warranty Term: One Year Warranty Payment:1. We accept Paypal, other ways please contact us.2. If you need to buy more goods, but the price is not cheap enough, or you did not find them in our store, please contact us!3. Buyers response for all tax or VAT under any circumstances. Shipping: 1. The item will be shipped within 1-3 business days after payment.2. All products have been checked and packaged in good condition before dispatch. 3. The package will be shipped by China post, if you need express shipping, please contact us to check the express shipping cost. If your order is large enough, we will ship it by DHL, Fedex, UPS or EMS.4. We provide 12 months Warranty, if the item is defective, please notify us within 5 days of delivery. We provide replacement service for defective items. Feedback:1. We will do a positive feedback automatically after receiving your positive feedback. We would appreciate your positive feedback. 2. If you are not satisfied with our product or service, please E-mail me with your problem before leaving a negative/neutral feedback or open a dispute, we work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. We care about our valued customers, and will always be willing to help you. So if you have any problems, please E-mail us immediately. inkfrog terapeak
