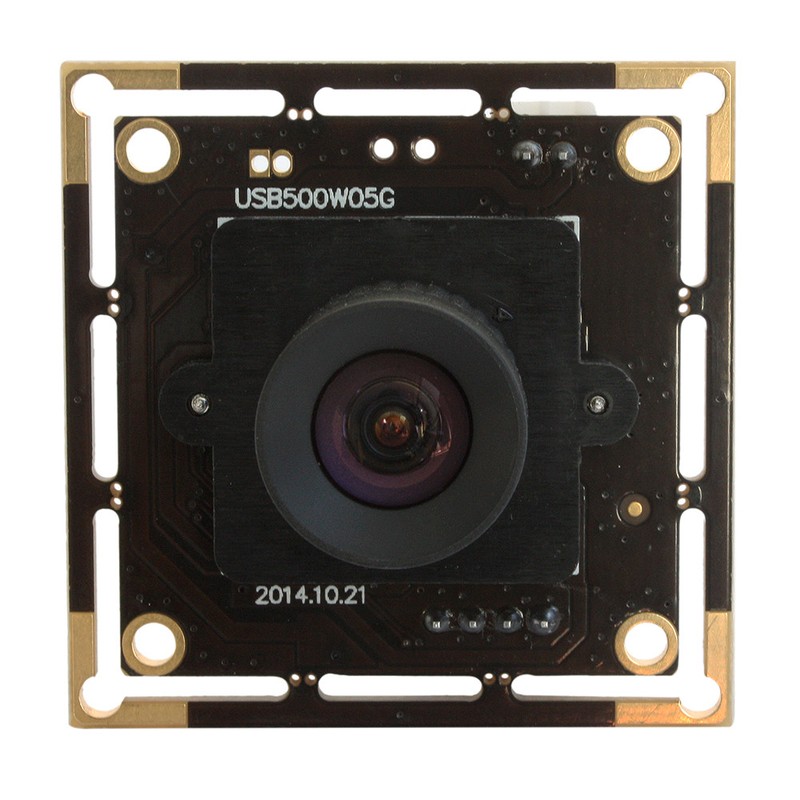

Android/Linux/Windows CMOS Camera Module Board 5MP Webcam Video with 2.1mm Lens
Android/Linux/Windows CMOS Camera Module Board 5MP Webcam Video with 2.1mm Lens

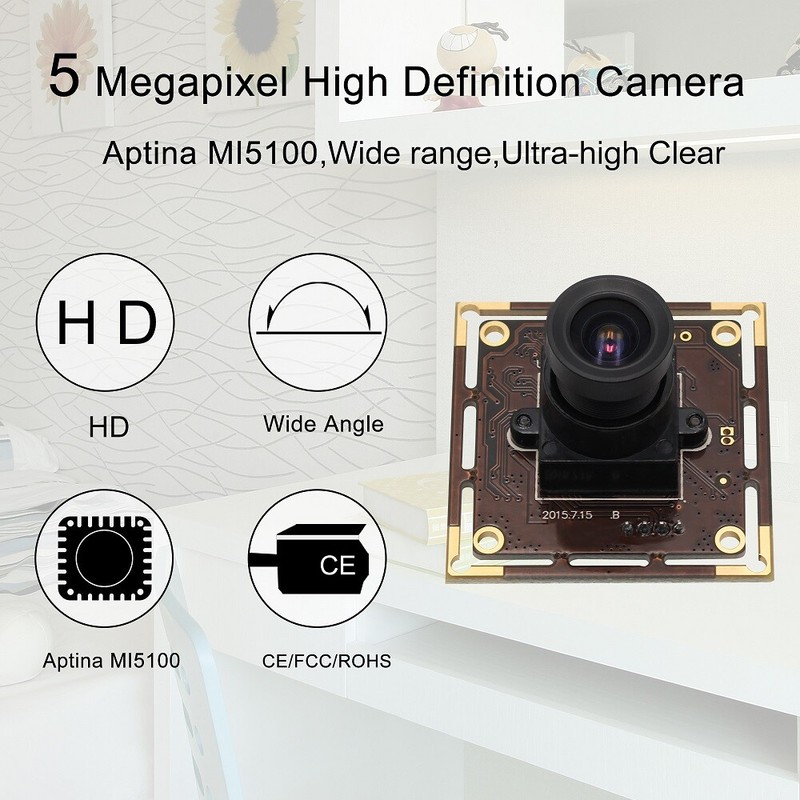

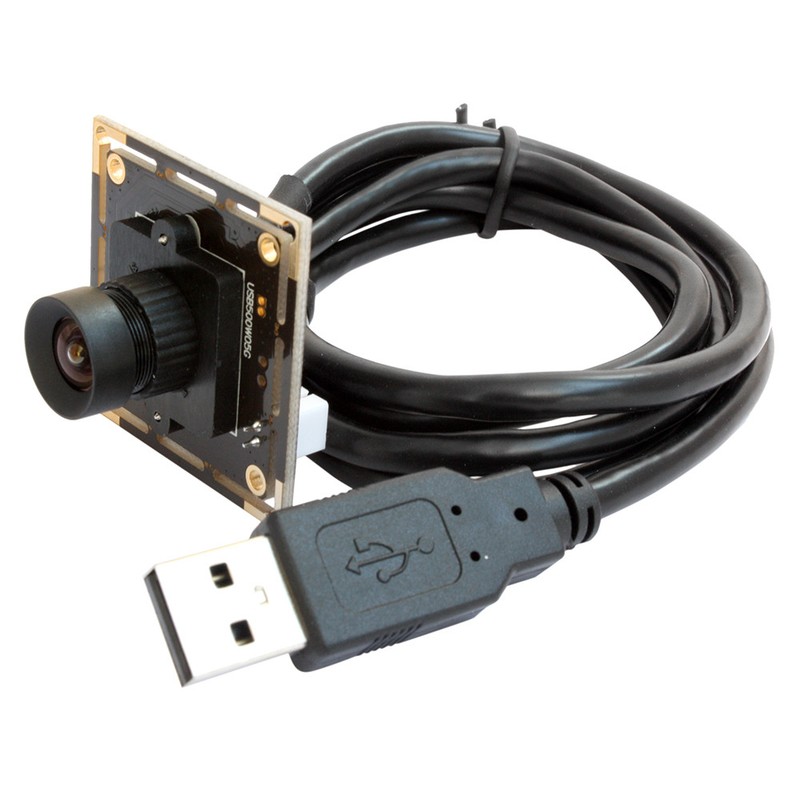

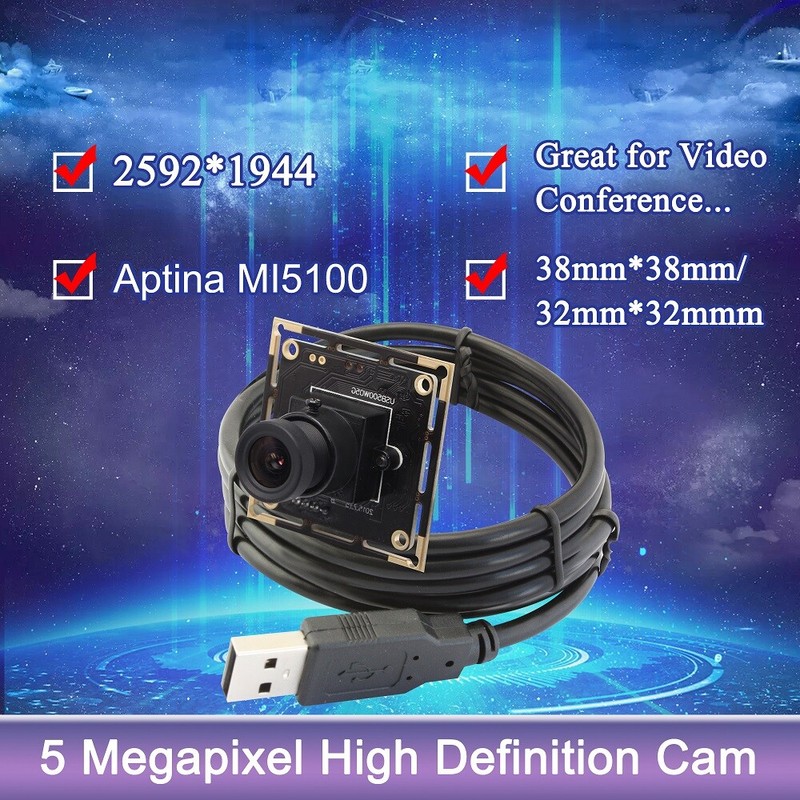

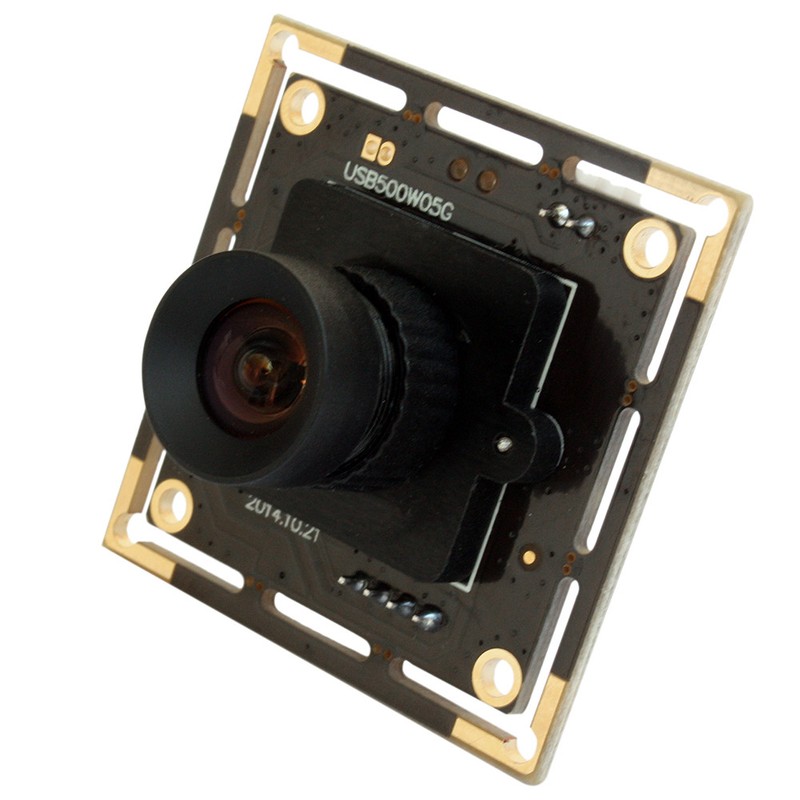

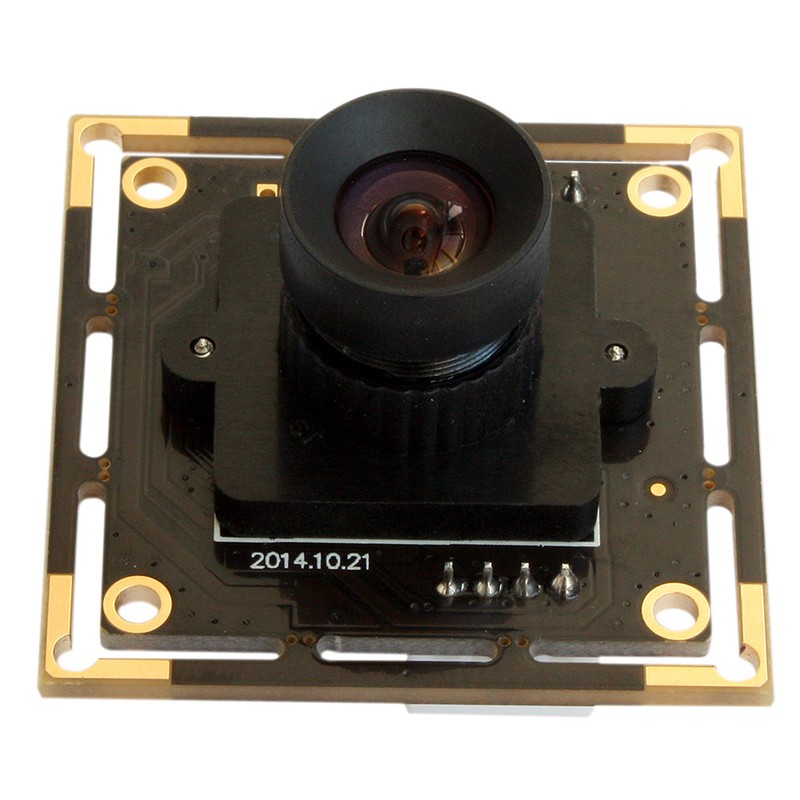

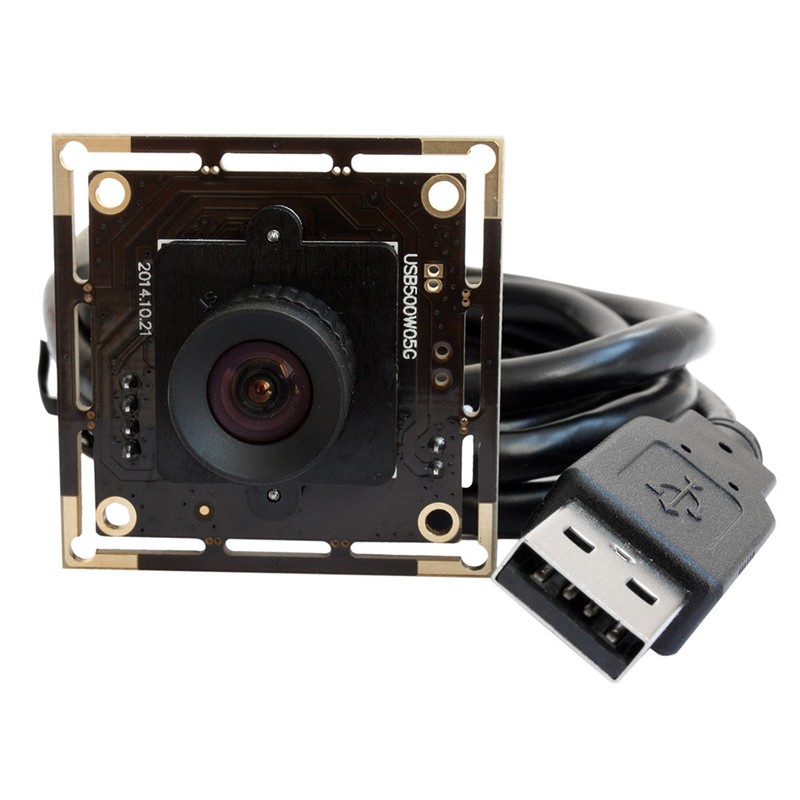

HomePaymentShippingReturn PolicyAbout UsContact UsFeedbackDescription 1/2.5 Aptina MI5100 Color CMOS Sensor 5Megapixel HD wide angle 2.1mm lens USB CCTV Camera board Module with USB2.0 interface Feature: *Super high resolution 5mp USB camera module *Can used for micro endoscope camera *5Megapixel CMOS sensor for high quality image. *High speed USB 2.0 interface for high resolution PC camera interface. *high pixel technology for sharp image and accurate color reproduction. *low light performance-ideal for any lighting condition. *Super small outline and thin profile for embedded applications. *High frame rate-30 fps in 1280X720 resolution. *High quality lens, true and undistorted color image. *Low power consumption ideal for portable equipment. *UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above. *Camera with UVC. Effect Image: Specification:ModelELP-USB500W05GSensorAptina MI5100Lens Size1/2.5 inch (4:3)Pixel Size2.2umimage area5.7mm x 4.28mmMax. Resolution2592(H) X 1944(V)Compression formatMJPEG / YUV2 (YUYV)Resolution & frame2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEGS/N Ratio38dBDynamic Range70dBSensitivity1.4V/lux-sec@550nmMini illumination0.1luxShutter TypeElectronic rolling shutter / Frame exposureConnecting Port typeUSB2.0 High SpeedFree Drive ProtocolUSB Video Class (UVC)OTG protocolUSB2.0 OTGAECSupportAEBSupportAGCSupportButton cameraSupportAdjustable parametersBrightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, ExposureLens ParameterSize: 1/2.5, Iris: F2.4, Focus: 3mm, FOV(D): 100 DegreeLED board control interfaceSupport 2P-1.25mm socketLED board power connectorSupport 2P-2.0mm socketPower supplyUSB BUS POWER 4P-2.0mm socketOperating VoltageDC5VWorking current150Ma~200MaWorking temperature-10~70 centigradeStorage temperature-20~85 centigradeBoard size38X38mm (compatible 32X32mm)Operating system requestWinXP/Vista/Win7/Win8Linux with UVC (above linux-2.6.26)MAC-OS X 10.4.8 or laterWince with UVCAndroid 4.0 or above with UVC Applications:Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. Used for all kinds of machine as below:Machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.Products Display: More Information: PaymentDelivery detailsTerms of salesAbout usContact usPayment1.We accept Paypal only. 2.Payment must be received within 7 working days. Or unpaid case will be opened automatically. Delivery details1.We ship goods to customer's confirmed paypal address. Please be sure your paypal address is correct before bidding. 2.Items will be shipped out within 48 hours once payment cleared. By registered air mail with tracking number. Orders placed on weekends or holidays will be processed on Monday or next working day. 3.International buyers please note: Import duties,taxes and charges are not included in the item price or shipping charges. These fees are buyers responsibility. So, Please check with your country's customs office to determine what these additional costs will be prior to bidding. 4.Delivery time:For USA buyers we'll ship by e-packet takes arround 7-12 working days. Other countries we'll ship by Registered Air Mail. Arround delivery time as bellow for your referrence.Australia, Canada 10-18 working daysUK, France, Austria, Germany, Spain and other Europe countries: 10-25 working daysGreece, Malta 15-40 working daysRussian Federation, Italy, Brazil, Africa countries: 20-40 days due to customs restrictionThe estimated arrival time above just for your refference, Not guaranteed. We don't responsible for any customs duties. Terms of sales1.If the goods dead on arrival, Please take photoes for us confirmation and reach us first time for exchange or refund. 2.Buyers have purchased a wrong item or don't like the item received, Please return within 7 days and reach us first before returning. 3.Ailipu Technology Co., Ltd warrants our product to be free from manufacturers maintenance for 2 years. The warranty will not be covered under the following conditions : a) Out-of-warranty products. b) The product is modified without Ailipu Technology Co.,Ltd approval. c) Obvious attack of appearance whatever it is. d) The product is subjected to unusual physical or electrical stress, including physical damage, burnt components and broken connectors.4. The customer is responsible for returning the defective product at his own expense. About usAilipu Technology Co.,Ltd have 10 years history, is a professional manufacturer of surveillance system. We produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system. We can also OEM or customize products specially by customers' requirements.Contact usIf you have any questions,Please contact with us via eBay message! Our Service Officer will reply in 24 hours!(Excluding Weekends and Public Holidays) Working time:Our Duty TimeChina TimeUSA (pacific time) StartEndStartEndMondayAM 9:00PM 18:00SundayPM 17:00AM 2:00TuesdayAM 9:00PM 18:00MondayPM 17:00AM 2:00WednesdayAM 9:00PM 18:00TuesdayPM 17:00AM 2:00ThursdayAM 9:00PM 18:00WednesdayPM 17:00AM 2:00FridayAM 9:00PM 18:00ThursdayPM 17:00AM 2:00SaturdayOut of DutyFriday SaturdaySundayOut of DutySaturday Sunday During the duty time ,we can give you a quick respond. If we are out of work ,please kindly be patient and considerable to give us a little more time ,not just leave the neutral or negative feedback without communication ,thank you for your cooperation !
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | usb camera board |
| Brand | elp |
| Model | ELP-USB500W05G-L21 |
| MPN | Does Not Apply |
| Resolution | 5mp |
| Connectivity | USB2.0 |
| High Definition: | 5MP |
| Lens (mm) | 2.1mm Lens |
| Subtype | usb |
| Features | 5MP |
| Surveillance Technology | CCTV |
| Smart Home Protocol | Thread |
| Smart Home Compatibility | video camera |
| Compatible Brand | usb camera |
| Number Of Cameras Included | usb camera module |
| Location | Indoor Only |
| Maximum Resolution | 2592x1944 |
| Storage Capacity | camera module |
| Operating Sound Rating | webcam |
| Power | DC5V |
