8mm Lens with USB2.0 Camera Module 960P 1.3MP Low Light Web Camera CMOS AR0130
8mm Lens with USB2.0 Camera Module 960P 1.3MP Low Light Web Camera CMOS AR0130

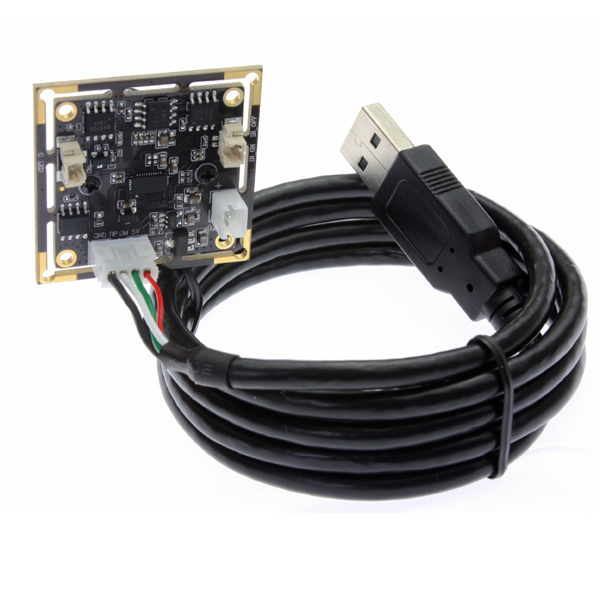

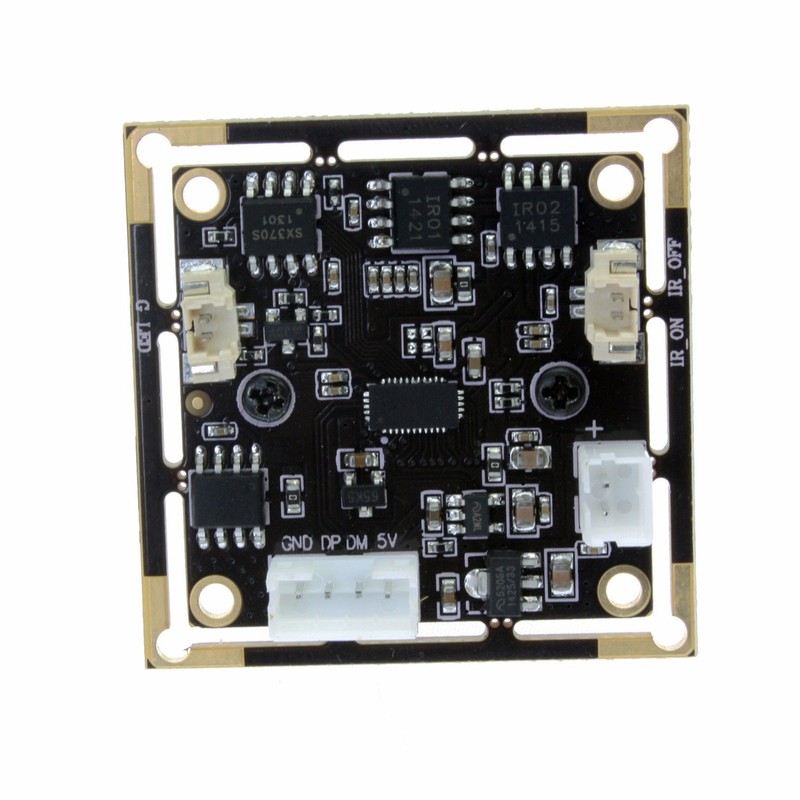

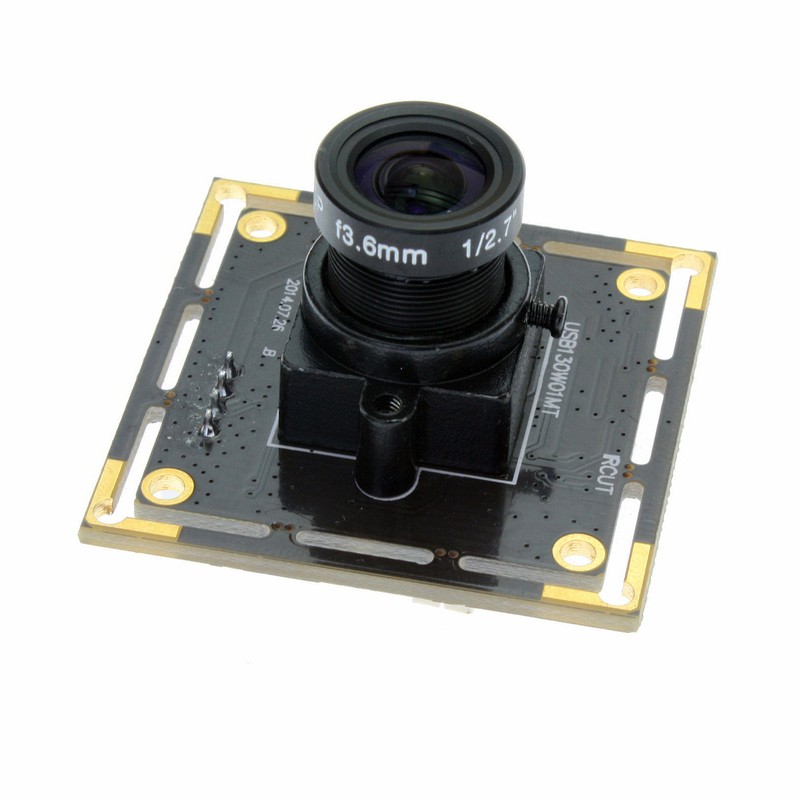

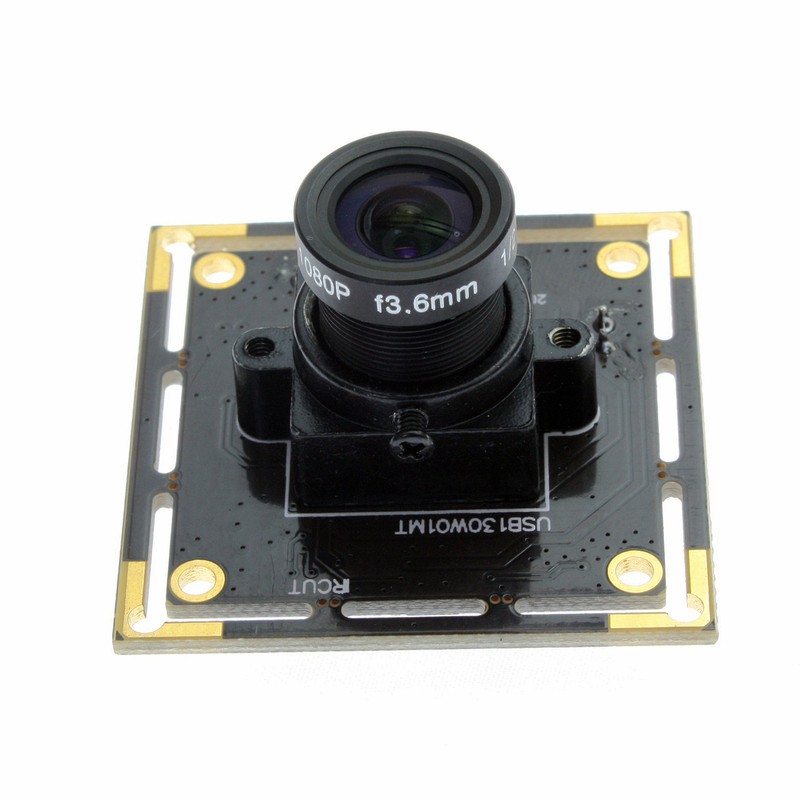

HomePaymentShippingReturn PolicyAbout UsContact UsFeedbackDescription ELP 38mmX38mm USB camera module, CMOS AR0130 Color high definition Web Camera module With 1 meter usb cable,ELP video camera with 8mm lens for Mac,Windows,Linux,Android systems Features: *1280x960 resolution USB Camera*Support Android and Linux system*Suport YUY and MJPEG format*high pixel technology for sharp image and accurate color reproduction*low light performance – ideal for any lighting condition*Super small outline and thin profile for embedded applications*High frame rate– deliver 60 fps in VGA*High quality lens, true and undistorted color image*Low power consumption – ideal for portable equipment*WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above Key Specifications: Module No.ELP-USB130W01MTModule Size38mm × 38mm 32mm × 32mmTemperature (Operation)-20°C to 70°CTemperature (Stable Image)0°C to 60°CCamera Board Assembly techniqueSMT (ROSH)FocusManualObject distance5CM-100MResolution600LW/PH (Center)interfaceUSB 2.0 High SpeedprotocolUSB Video Class UVCPowerUSB bus powerOperating system requestWin XPWin7Win8AndroidLinuxMac OSCertificationsFCC and CESensor TypeAR0130 (1/3” )Active Array Size1280 *960Minimal illumination0.01LuxPixel Size3.75umMaximum Image Transfer Rate1280 (H) x 960 (V) pixels MJPEG 15fps1280 (H) x 720 (V) pixels MJPEG 30fps800 (H) x 600 (V) pixels MJPEG 30fps640 (H) x 480 (V) pixels MJPEG 30fps320 (H) x 240 (V) pixels MJPEG 30fpsS/N Ratio44dBDynamic Range83.5dBShutterRolling shutter/ frame exposureLens Type Lens Construction5G+IRFocal Length3.6mm (2.1mm/2.8mm/6mm/8mm/12mm Optional)F/No1.8BFL(Optical)6.5mmFOV105°IR Filter650±10nmDSP TypeRV1080PAGC/AEC/AWB/ABFAutoOutput FormatsYUYV/MJPEGIR CUTSUPPORTAdjustable parametersBrightness Contrast Hue Saturation Sharpness Gamma White Balance Exposure FocusPackageLQFN-40pinUSB Cable1M(2M/3M/5M Optional) Applications:Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below:machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automaticvending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot lawenforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed videoshooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, microHD surveillance, endoscope, Medical auxiliary equipment, etc. PaymentDelivery detailsTerms of salesAbout usContact usPayment1.We accept Paypal only. 2.Payment must be received within 7 working days. Or unpaid case will be opened automatically. Delivery details1.We ship goods to customer's confirmed paypal address. Please be sure your paypal address is correct before bidding. 2.Items will be shipped out within 48 hours once payment cleared. By registered air mail with tracking number. Orders placed on weekends or holidays will be processed on Monday or next working day. 3.International buyers please note: Import duties,taxes and charges are not included in the item price or shipping charges. These fees are buyers responsibility. So, Please check with your country's customs office to determine what these additional costs will be prior to bidding. 4.Delivery time:For USA buyers we'll ship by e-packet takes arround 7-12 working days. Other countries we'll ship by Registered Air Mail. Arround delivery time as bellow for your referrence.Australia, Canada 10-18 working daysUK, France, Austria, Germany, Spain and other Europe countries: 10-25 working daysGreece, Malta 15-40 working daysRussian Federation, Italy, Brazil, Africa countries: 20-40 days due to customs restrictionThe estimated arrival time above just for your refference, Not guaranteed. We don't responsible for any customs duties. Terms of sales1.If the goods dead on arrival, Please take photoes for us confirmation and reach us first time for exchange or refund. 2.Buyers have purchased a wrong item or don't like the item received, Please return within 7 days and reach us first before returning. 3.Ailipu Technology Co., Ltd warrants our product to be free from manufacturers maintenance for 2 years. The warranty will not be covered under the following conditions : a) Out-of-warranty products. b) The product is modified without Ailipu Technology Co.,Ltd approval. c) Obvious attack of appearance whatever it is. d) The product is subjected to unusual physical or electrical stress, including physical damage, burnt components and broken connectors.4. The customer is responsible for returning the defective product at his own expense. About usAilipu Technology Co.,Ltd have 10 years history, is a professional manufacturer of surveillance system. We produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system. We can also OEM or customize products specially by customers' requirements.Contact usIf you have any questions,Please contact with us via eBay message! Our Service Officer will reply in 24 hours!(Excluding Weekends and Public Holidays) Working time:Our Duty TimeChina TimeUSA (pacific time) StartEndStartEndMondayAM 9:00PM 18:00SundayPM 17:00AM 2:00TuesdayAM 9:00PM 18:00MondayPM 17:00AM 2:00WednesdayAM 9:00PM 18:00TuesdayPM 17:00AM 2:00ThursdayAM 9:00PM 18:00WednesdayPM 17:00AM 2:00FridayAM 9:00PM 18:00ThursdayPM 17:00AM 2:00SaturdayOut of DutyFriday SaturdaySundayOut of DutySaturday Sunday During the duty time ,we can give you a quick respond. If we are out of work ,please kindly be patient and considerable to give us a little more time ,not just leave the neutral or negative feedback without communication ,thank you for your cooperation !
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Features | 960p |
| MPN | Does Not Apply |
| Color Mode | Color |
| Model | ELP-USB130W01MT-L8 |
| Sensor | Aptina AR0130 |
| Brand | ELP |
| Power Supply | DC5V |
| Lens | 8mm |
| Type | mini |
| Connectivity | usb2.0 |
| Smart Home Protocol | Thread |
| Surveillance Technology | CCTV |
| Smart Home Compatibility | usb webcam |
| Compatible Brand | video camera |
| Location | Indoor Only |
| Maximum Resolution | 1280x960 |
| Storage Capacity | usb with camera |
| Operating Sound Rating | low light |
| Power | DC5V |
