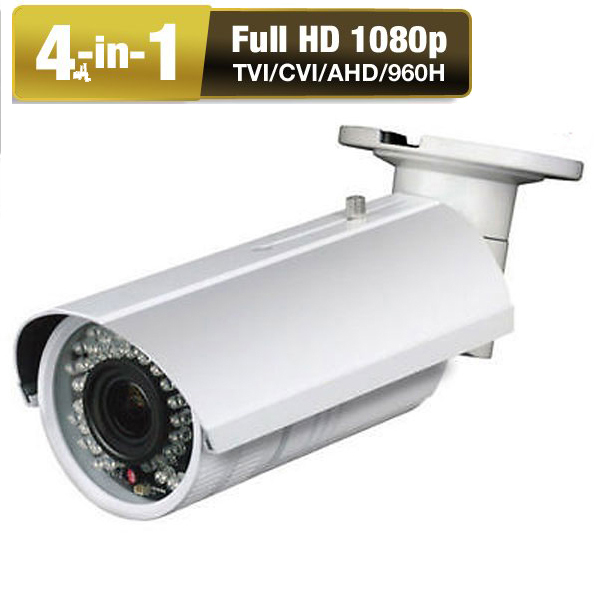

DescriptionHigh End 6MP 4CH 5-in-1 DVR With 2.6MP 4pcs 4-in-1 HD-AHD HD-TVI CVI 960H Camera SystemDVR FeatureEmbedded processorH.265+/H.265 dual-stream video compressionSupport HDCVI/AHD/TVI/CVBS/IP video inputsMax. 6 channels IP camera inputs, each channel up to 6MPMax. 24Mbps incoming bandwidthSmart Search and Intelligent Video SystemSpecification Max Image Resolution6MP System CompressionH.265+/H.265/H.264+/H.264Main ProcessorEmbedded ProcessorOperating SystemEmbedded LinuxVideo Interface1 HDMI, 1 VGAVideo Resolution1920x1080, 1280x1024, 1280x720Multi-Screen DisplayWhen IP extension mode not enabled: 1/4; When IP extension mode enabled: 1/4/6HDCVI Camera Input5MP, 4MP/1080P@25/30fps, 720P@50/60fps, 720P@25/30fpsIP Camera Input4+2 Channel, each channel up to 6MP OSDYesAudio In1Audio Out12 Way AudioReuse audio in/out, RCARecording Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIFRecording Frame RateMainstream: 5M-N1~10fps), 4M-N/1080P(1~15fps); 1080P/720P/960H/D1/CIF(1~25/30fps)Substream: D1/CIF (1~15fps)Bit Rate32Kbps ~ 6144Kbps Per ChannelRecording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stopRecord Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 secPlayback Channels1/4Playback SearchTime /Date, Alarm, MD and Exact Search (accurate to second)Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital ZoomBackup ModeUSB Device/NetworkTrigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen TipsVideo DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and DiagnosisAlarm InN/AAlarm Relay OutputN/ANetwork Interface1 RJ-45 Port (100M)Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)Network Max. Users128InteroperabilityONVIF 16.12, CGI ConformantMobileiPhone, AndroidRS4851 Port, for PTZ ControlUSB2 USB Ports (1 USB 2.0, 1 USB 3.0)RS232N/ARS422N/APower SupplyDC12V/4APower Consumption<10W (Without HDD)Internal HDD1 SATA Port, up to 10TB capacitye-SATAN/AOperating Conditions-10°C ~ +55°C (+14°F ~ 131°F), 10%~90% RHStorage Conditions-20°C ~ +70°C (-4°F ~ 158°F), 0~90% RHDimensionsMini 1U, 325mm×255mm×55mm (12.8" x 10" x 2.2")WeightNet weight 1.0kg (2.2lb) (without HDD); Gross weight 1.9kg (4.2lb)Camera Feature Full HD 1080P 1920x1080P 30fps Support AHD TVI CVI CVBS Analog 1/2.7" 2.6 Mega Pixel Sensors 42IR LEDs up to 145ft OSD Menu 2D / 3D DNR Noise Reduction Aluminum Housing 2.8-12mm Varifocal Zoom Lens Model SV5B9FZW42Image Sensor2.6MP Sony CMOS SensorResolution1080P for HD Cameras ,960H for Analog CamerasSupport SystemHD AHD TVI CVI Analog(CVBS)Signal SystemNTSC/PAL(Euro Version)Effective Pixels1930(H) x 1088(V)Min. Illumination0 Lux(Infrared Lamps Turn on)Shutter SpeedNTSC: 1/30-1/50000 PAL: 1/25-1/50000 Lens2.8-12mm Vari-focal Zoom LensDay & NightICRSynchronizationInternalS/N Ratio> 50dB (AGC off)Digital Noise Reduction2D DNR & 3D DNRWhite BalanceAuto Tracking White BalanceOSD MenuYesBLCAutoAuto Gran ControlAutoSmart IRYesWorking Temperature /Humidity 14 °F - 122 °F (-10 °C - 50 °C ) RH85% Max. (Non-condensing) Power SupplyDC 12VPower Consumption< 5W (when the infrared lamps turn on)Weather-proof RatingIP66Infrared Red Lamps42IR LEDsIR Range145feetDimensions4.7" x 3.5" (120mm x90mm)Weight870g Package includesSVXVR501 All-in-1 6MP 4Channel DVR1TB CCTV hard drive 4x SV5B9FZW42 - 2.6MP 4-in-1 Support CVI AHD Analog Camera 2 x 50ft Power Cable2 x 25ft power CablePower Adapter & 1 in 4 Power SplitterOne Year warranty
