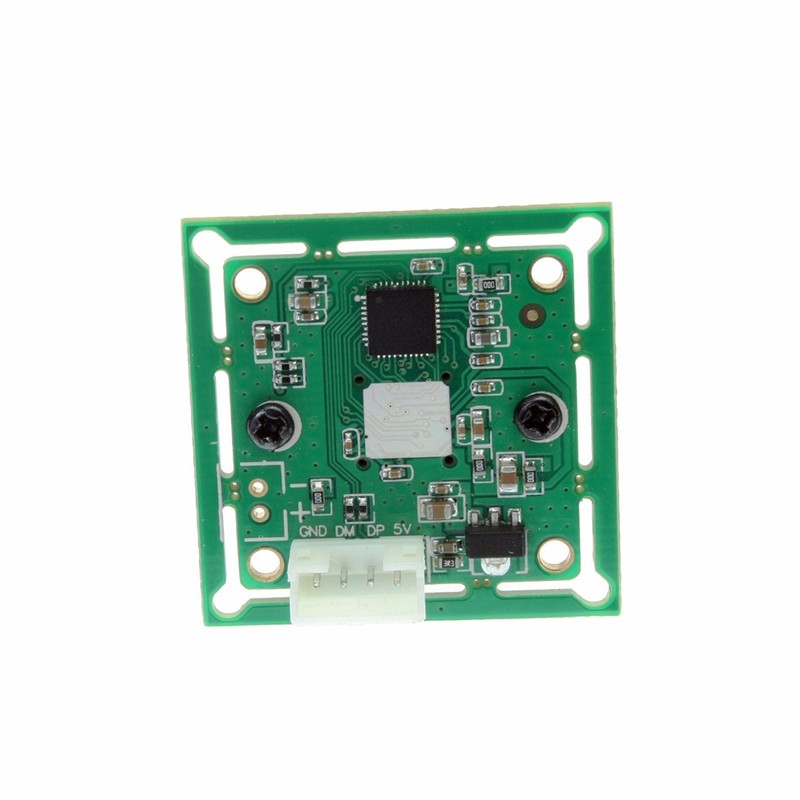

2.8mm Lens VGA Webcam 60fps High Speed UVC USB Camera Module For Linux Android
2.8mm Lens VGA Webcam 60fps High Speed UVC USB Camera Module For Linux Android
2.8mm USB Camera module for Linux System 1/4" Color CMOS sensor Webcam Cam MJPE ELP-USB30W02M-L28 Regarding camera lens we also have 2.1mm 3.6mm 6mm 8mm 12mm, if you need or exchange, please email us. Features: CMOS VGA sensor for high quality image and low power consumption. High speed USB 2.0 interface for high resolution PC camera interface. high pixel technology for sharp image and accurate color reproduction. low light performance – ideal for any lighting condition. Super small outline and thin profile for embedded applications. High frame rate– deliver 60 fps in VGA. High quality lens, true and undistorted color image. Low power consumption – ideal for portable equipment. UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above. Camera with UVC. Specification: Image Sensor 1/4" Color CMOS image sensor OV7725 Effective Pixels 640 (H) x 480 (V) pixels 352 (H) x 288 (V) pixels 320 (H) x 240 (V) pixels 176(H) x 144(V) pixels 160 (H) x 120 (V) pixels Frame Rate VGA/CIF 30-60fps Lens 3.6mm (2.1mm/2.8mm/6mm/8mm/12mm Optional) Cable 1m USB cable (2M/3M/5M optional) Signal Output Serial data for USB standard compatible with 2.0 and 1.1 Performance MJPEG 60fps @ 640 x 480 YUV 30fps @ 640 x 480 Operating System Windows XP , VISTA,win7 and Linux, android, Mac OS UVC Windows XP SP2 or above Operating temperature -30°C-70°C Power Consumption 5V 100mA Dimensions (mm) 32mm*32mm/26mm*26mm Applications Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player,LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external,evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system,simple security system, teaching system, Interactive system, automobile data recorder. Project video capture,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system,Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance,endoscope, Medical auxiliary equipment, etc. Important:We are not responsible for any custom duty or import tax Return Policy1. We offer full refund if you didn't receive your order in our promised time.2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving3. Items returned after 7 days of delivery are only for repair.4. As the items returned, buyer should pay for the return shipping fee. Feedback 1.Please contact us before leaving any neutral or negative feedback. We will try our best to solve the problem ,Thank you 2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster. Thanks! Welcome Inquiry.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Features | vga usb camera module |
| MPN | Does Not Apply |
| Color Mode | Color |
| Lens | 2.8mm |
| Compression Format | MJPEG / YUV2（YUYV） |
| Model | ELP-USB30W02M-L28 |
| Sensor | OV7725 |
| Max. Resolution | 640(H)X480(V) |
| Connectivity | USB2.0 cable |
| Brand | ELP |
| Type | USB camera module |
| Smart Home Protocol | Thread |
| Surveillance Technology | CCTV |
| Smart Home Compatibility | Camera with usb |
| Compatible Brand | ELP camera |
| Location | Indoor Only |
| Maximum Resolution | 640x480 |
| Storage Capacity | VGA camera |
| Operating Sound Rating | UVC camera |
| Power | DC5V |
