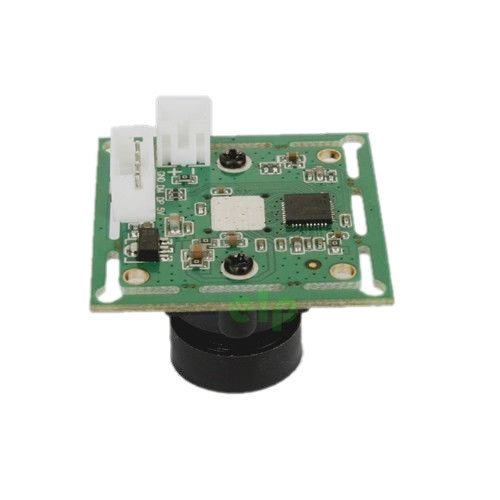

2.8mm lens USB Camera Module F Windows Linux Android System 0.3MP Webcam MJPEG
2.8mm lens USB Camera Module F Windows Linux Android System 0.3MP Webcam MJPEG
Linux Windows Android 2.1mm lens wide angle 60fps 640 x 480 VGA uvc mini 32*32mm usb endoscope camera module 480P Feature: *640x480 VGA resolution USB Camera*Support Android and Linux system*Suport YUY and MJPEG format*high pixel technology for sharp image and accurate color reproduction*low light performance – ideal for any lighting condition*Super small outline and thin profile for embedded applications*High frame rate– deliver 60 fps in VGA*High quality lens, true and undistorted color image*Low power consumption – ideal for portable equipment*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above*Camera with UVC Specification: Optional models ELP-USB30W02M-L21(2.1mm lens)ELP-USB30W02M-L28(2.8mm lens)ELP-USB30W02M-L36(3.6mm lens)ELP-USB30W02M-L60(6mm lens)ELP-USB30W02M-L80(8mm lens)ELP-USB30W02M-L12(12mm lens) Sensor OV7725 Lens size 1/4 inch Max. Resolution 640X480 VGA Picture format YUY2MJPEG USB Protocal USB2.0 HS/FSUSB1.1 FS Support free driver USB Video Class(UVC)1.1 Auto exposure AEC Support Auto white blance AEB Support Frame rate 640(H) x 480 (V) pixels MJPEG 60fps YUY2 30fps480(H) x 480 (V) pixels MJPEG 30fps YUY2 30fps450(H) x 450 (V) pixels MJPEG 30fps YUY2 30fps352(H) x 288 (V) pixels MJPEG 30fps YUY2 30fps320(H) x 240 (V) pixels MJPEG 30fps YUY2 30fps288(H) x 288 (V) pixels MJPEG 30fps YUY2 30fps240(H) x 240 (V) pixels MJPEG 30fps YUY2 30fps Adjustable parameters Brightness/Contrast/Color saturation/DefinitionGamma/WB Support resoluion 640x480 352x288 320x240 160x120 Night vision optional, can choose IR board view angle 30-150 degree optional voltage DC 5V current 120mA work temperature DEGREES(-20~70) Size 32x32mm 26x26mm Support OS WinXP/Vista/WIN7/WIN8Linux with UVCMac-OS X 10.4.8 or laterWince with UVCAndroid 4.0 or above Applications: Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, microHD surveillance, endoscope, Medical auxiliary equipment, etc. Important:We are not responsible for any custom duty or import tax Return Policy1. We offer full refund if you didn't receive your order in our promised time.2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving3. Items returned after 7 days of delivery are only for repair.4. As the items returned, buyer should pay for the return shipping fee. Feedback 1.Please contact us before leaving any neutral or negative feedback. We will try our best to solve the problem ,Thank you 2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster. Thanks! Welcome Inquiry.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | USB Camera Module |
| Connectivity | USB |
| Color Mode | Color |
| MPN | Does Not Apply |
| Brand | ELP |
| Model | ELP-USB30W02M-L28 |
| Lens | 2.8mm |
| Operating Temperature | -30°C-70°C |
| Power Consumption | 5V 100mA |
| Sensor | CMOS |
| Form Factor | USB |
| Power | DC5V |
| Smart Home Protocol | Thread |
| Features | VGA camera |
| Surveillance Technology | CCTV |
| Smart Home Compatibility | usb with camera |
| Compatible Brand | Webcam |
| Location | Indoor Only |
| Maximum Resolution | 640x480 |
| Storage Capacity | usb camera module 480P |
| Operating Sound Rating | uvc camera |
Linux Windows Android 2.1mm lens wide angle 60fps 640 x 480 VGA uvc mini 32*32mm usb endoscope camera module 480P Feature: *640×480 VGA resolution USB Camera*Support Android and Linux system*Suport YUY and MJPEG format*high pixel technology for sharp image and accurate color reproduction*low light performance – ideal for any lighting condition*Super small outline and thin profile for embedded applications*High frame rate– deliver 60 fps in VGA*High quality lens, true and undistorted color image*Low power consumption – ideal for portable equipment*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above*Camera with UVC Specification: Optional models ELP-USB30W02M-L21(2.1mm lens)ELP-USB30W02M-L28(2.8mm lens)ELP-USB30W02M-L36(3.6mm lens)ELP-USB30W02M-L60(6mm lens)ELP-USB30W02M-L80(8mm lens)ELP-USB30W02M-L12(12mm lens) Sensor OV7725 Lens size 1/4 inch Max. Resolution 640X480 VGA Picture format YUY2MJPEG USB Protocal USB2.0 HS/FSUSB1.1 FS Support free driver USB Video Class(UVC)1.1 Auto exposure AEC Support Auto white blance AEB Support Frame rate 640(H) x 480 (V) pixels MJPEG 60fps YUY2 30fps480(H) x 480 (V) pixels MJPEG 30fps YUY2 30fps450(H) x 450 (V) pixels MJPEG 30fps YUY2 30fps352(H) x 288 (V) pixels MJPEG 30fps YUY2 30fps320(H) x 240 (V) pixels MJPEG 30fps YUY2 30fps288(H) x 288 (V) pixels MJPEG 30fps YUY2 30fps240(H) x 240 (V) pixels MJPEG 30fps YUY2 30fps Adjustable parameters Brightness/Contrast/Color saturation/DefinitionGamma/WB Support resoluion 640×480 352×288 320×240 160×120 Night vision optional, can choose IR board view angle 30-150 degree optional voltage DC 5V current 120mA work temperature DEGREES(-20~70) Size 32x32mm 26x26mm Support OS WinXP/Vista/WIN7/WIN8Linux with UVCMac-OS X 10.4.8 or laterWince with UVCAndroid 4.0 or above Applications: Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, microHD surveillance, endoscope, Medical auxiliary equipment, etc. Important:We are not responsible for any custom duty or import tax Return Policy1. We offer full refund if you didn’t receive your order in our promised time.2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving3. Items returned after 7 days of delivery are only for repair.4. As the items returned, buyer should pay for the return shipping fee. Feedback 1.Please contact us before leaving any neutral or negative feedback. We will try our best to solve the problem ,Thank you 2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster. Thanks! Welcome Inquiry.
