ZOSI 1080P 4in1 Wired CCTV Security Camera Outdoor Waterproof Night Vision
ZOSI 1080P 4in1 Wired CCTV Security Camera Outdoor Waterproof Night Vision

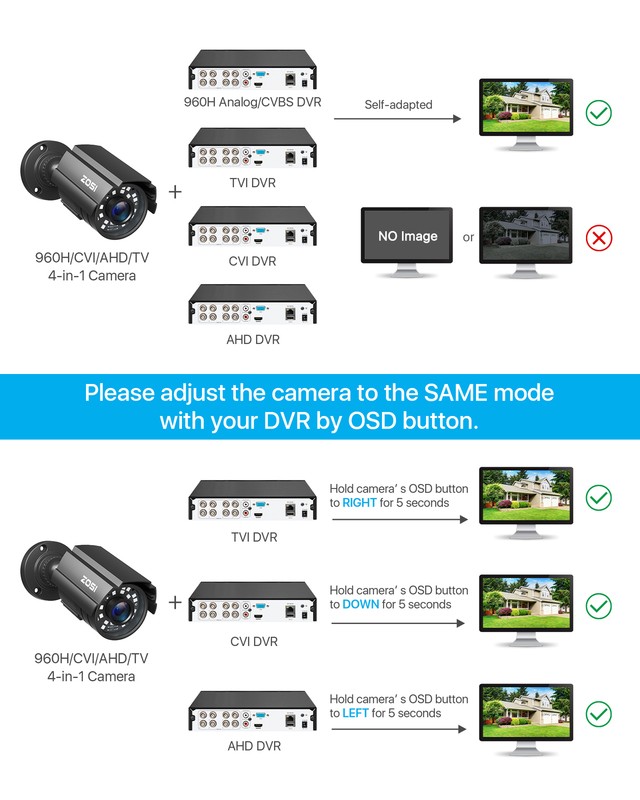

Please noted: It doesn't include bnc extension cable or power adaptor. It's a wired camera, not wireless ip camera. 4-in-1 Security Dome Camera Press OSD joystick to switch the output mode: Default / Right for 5 seconds: CVBS 960H Down for 5 seconds: CVI Left for 5 seconds: AHD Up for 5 seconds: TVI 1080P 4-in-1 Security Bullet Camera Security Camera Specification This camera is recommended to work with a security DVR. This camera needs to be wired with bnc video cable and power cable. This item will not come with the cctv cable & power supply. Image Sensor: 1/3〞CMOS CMOS with IR-Cut. Lens: 3.6mm Active Pixels: 1920(H)×1080(V). Singal mode: CVBS 960H / TVI / AHD / CVI. IR LEDs Amount: 24pcs, 5mm LEDs. IR Distance(night vision): up to 80FT Made: Aluminum Metal Casing Power supply: 12V 500mA This 1080p full HD camera has a built-in OSD menu that can change the 4 different video outputs：HD-TVI, AHD, CVI, and CVBS(960H)， and adjust the video settings. Operation Mode： Switch from AHD: Press Leftward for 5 Seconds Switch from TVI: Press Rightward for 5 Seconds Switch from CVBS: Press Upward for 5 Seconds Switch from CVI: Press Downward for 5 Seconds Noted: Default Video Mode is Analog 960H Mode Advanced DWDR Technology DWDR (Digital Wide Dynamic Range) technology automatically adjust the picture's brightness to let you see and capture a lot more details in a wide range of light conditions - from bright highlights to dark shadows. 1080p HD & 90° Angle View With 2.0MP lens and 90° wide field of view, you can see everything clear and smooth in perfectly crisp 1080p HD with every subtle details. Get clearer and sharper images/videos than 720p cameras. Enhanced Clarity with 3D-DNR 3D-DNR (Digital Noise Reduction) technology filters out digital noise from low-light scenes, as well as any noise caused by motion. By eliminating graininess, you can see more fluent image in better clarity, sharpness and get improved motion detection. Troubleshooting Q: Video Loss appears where the image from my camera should be displaying on my DVR? A: 1.Check the extension cable (power and video) is securely connected to the camera. 2.Check the video output from the camera is securely connected to a video input channel on the DVR. 3.Check the power from the camera is securely connected to a power supply. 4. The camera mode do not match your DVR.there is 2 ways to setup . (1) Press OSD Joystick “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR. (2) Make sure the signal of your DVR, Use OSD Joystick to change the mode of the camera according to your DVRs video Mode. On Mar 21, 2023 at 02:43:01 PDT, seller added the following information:
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| IR LEDs Amount | 24pcs, 5mm LEDs |
| Brand | ZOSI |
| Type | Bullet |
| Maximum Resolution | 1920x1080 |
| Model | 1AC-2112C-BS-N |
| Connectivity | Wired |
| Features | Infrared/Night Vision |
| Lens | 3.6mm |
| IR Distance | Up to 80ft |
| Application | Indoor/Outdoor |
| Resolution | 1080p |
| Location | Indoor/Outdoor |
| Surveillance Technology | CCTV |
Please noted: It doesn’t include bnc extension cable or power adaptor. It’s a wired camera, not wireless ip camera. 4-in-1 Security Dome Camera Press OSD joystick to switch the output mode: Default / Right for 5 seconds: CVBS 960H Down for 5 seconds: CVI Left for 5 seconds: AHD Up for 5 seconds: TVI 1080P 4-in-1 Security Bullet Camera Security Camera Specification This camera is recommended to work with a security DVR. This camera needs to be wired with bnc video cable and power cable. This item will not come with the cctv cable & power supply. Image Sensor: 1/3〞CMOS CMOS with IR-Cut. Lens: 3.6mm Active Pixels: 1920(H)×1080(V). Singal mode: CVBS 960H / TVI / AHD / CVI. IR LEDs Amount: 24pcs, 5mm LEDs. IR Distance(night vision): up to 80FT Made: Aluminum Metal Casing Power supply: 12V 500mA This 1080p full HD camera has a built-in OSD menu that can change the 4 different video outputs：HD-TVI, AHD, CVI, and CVBS(960H)， and adjust the video settings. Operation Mode： Switch from AHD: Press Leftward for 5 Seconds Switch from TVI: Press Rightward for 5 Seconds Switch from CVBS: Press Upward for 5 Seconds Switch from CVI: Press Downward for 5 Seconds Noted: Default Video Mode is Analog 960H Mode Advanced DWDR Technology DWDR (Digital Wide Dynamic Range) technology automatically adjust the picture’s brightness to let you see and capture a lot more details in a wide range of light conditions – from bright highlights to dark shadows. 1080p HD & 90° Angle View With 2.0MP lens and 90° wide field of view, you can see everything clear and smooth in perfectly crisp 1080p HD with every subtle details. Get clearer and sharper images/videos than 720p cameras. Enhanced Clarity with 3D-DNR 3D-DNR (Digital Noise Reduction) technology filters out digital noise from low-light scenes, as well as any noise caused by motion. By eliminating graininess, you can see more fluent image in better clarity, sharpness and get improved motion detection. Troubleshooting Q: Video Loss appears where the image from my camera should be displaying on my DVR? A: 1.Check the extension cable (power and video) is securely connected to the camera. 2.Check the video output from the camera is securely connected to a video input channel on the DVR. 3.Check the power from the camera is securely connected to a power supply. 4. The camera mode do not match your DVR.there is 2 ways to setup . (1) Press OSD Joystick “DOWN” 5 seconds,if still no picture come, try to press “LEFT” “RIGHT””UP” for 5 second, till the signal matching your DVR. (2) Make sure the signal of your DVR, Use OSD Joystick to change the mode of the camera according to your DVRs video Mode. On Mar 21, 2023 at 02:43:01 PDT, seller added the following information:
