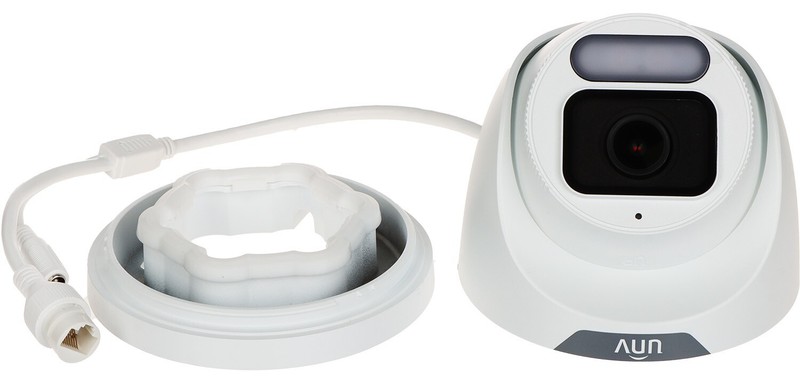

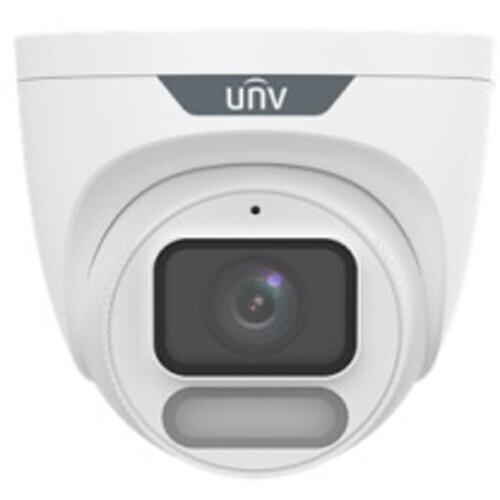

UNV Uniview IPC3624SR-ADF28KM-WP OwlView Turret Network Security Camera NEW 2024
UNV Uniview IPC3624SR-ADF28KM-WP OwlView Turret Network Security Camera NEW 2024
IPC3624SR-ADF28(40)KM-WP4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera• High quality image with 4MP, 1/1.8"CMOS sensor and F1.0 large aperture lens• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;• Ultra 265, H.265, H.264, MJPEG• Colorhunter with Wise ISP technology ensures 24 hour full color images• 120dB true WDR technology enables clear image in strong light scene• Support 9:16 Corridor Mode• Built in Mic• White Light, up to 30m (98ft) warm light distance• Supports 256 GB Micro SD card• IP67 protection• Support PoE power supply• 3 Axis CameraDescriptionResolution4MPSensor1/1.8"CMOSMin. IlluminationColour: 0.0003 lux (F1.0, AGC ON)ShutterAuto/Manual, 1 ~ 1/100000sAdjustment anglePan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°S/N>52dBWDR120dBLensDescriptionLens typeIPC3624SR-ADF28KM-WP:2.8mmIPC3624SR-ADF40KM-WP:4.0mmIris TypeFixedIrisF1.0Field of View (H)IPC3624SR-ADF28KM-WP:110.4°IPC3624SR-ADF40KM-WP:89.4°Field of View (V)IPC3624SR-ADF28KM-WP:60.5°IPC3624SR-ADF40KM-WP:48.2°Field of View (D)IPC3624SR-ADF28KM-WP:115.2°IPC3624SR-ADF40KM-WP:94.7°DORIDescriptionDORI Distance(Lens)IPC3624SR-ADF28KM-WP:2.8mmIPC3624SR-ADF40KM-WP:4.0mmDORI Distance(Detect)IPC3624SR-ADF28KM-WP:43.4m(142.5.7ft)IPC3624SR-ADF40KM-WP:62.1(203.6ft)DORI Distance(Observe)IPC3624SR-ADF28KM-WP:17.4(57.0ft)IPC3624SR-ADF40KM-WP:24.8(81.5ft)DORI Distance(Recognize)IPC3624SR-ADF28KM-WP:8.7(28.5ft)IPC3624SR-ADF40KM-WP:12.4(40.7ft)DORI Distance(Identify)IPC3624SR-ADF28KM-WP:4.3(14.3ft)IPC3624SR-ADF40KM-WP:6.2(20.4ft)IlluminatorDescriptionIllumination Distance(Warm Light)30mLight On/Off ControlAuto/ManualVideoDescriptionVideo CompressionUltra 265; H.265; H.264; MJPEGH.264 code profileBaseline profile, Main profile, High profileFrame RateMain Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;Video Bit Rate128 Kbps~6144KbpsU-codeSupportOSDUp to 4 OSDsPrivacy MaskUp to 4 areasROIUp to 8 areasVideo streamDual streamsImageDescriptionWhite BalanceAuto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2Digital noise reduction2D/3D DNRSmart IlluminationSupportFlipNormal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwiseDewarpingN/AHLCSupportBLCSupportDefogDigital DefogEventsDescriptionBasic DetectionMotion detection; Ultra motion detection; Tampering alarm; Audio detection; Cross line (based on human body detection); Intrusion (based on human body detection)General FunctionWatermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP AuthenticationAudioDescriptionAudio CompressionG.711U; G.711AAudio Bitrate64 KbpsTwo-way AudioN/ASuppressionSupportSampling Rate8KHZStorageDescriptionEdge StorageMicro SD，up to 256 GBNetwork StorageANR; NAS(NFS)NetworkDescriptionProtocolsIPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLSCompatible IntegrationONVIF (Profile S, Profile G, Profile T); API; SDKUser/HostUp to 32 users, 2 user levels: administrator and common userSecurityPassword protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIFClientUNV‑Link; UNV‑Link Pro; EZStationWeb BrowserPlug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and aboveInterfaceDescriptionAudio I/ON/AAlarm I/ON/ASerial PortN/ABuilt-in MicSupportBuilt-in SpeakerN/AWIFIN/ANetwork1 * RJ45 10M/100M Base‑TX EthernetVideo OutputN/ACertificationDescriptionEMCCE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035)FCC (FCC 47 CFR part15 B)SafetyCE LVD (EN 62368‑1)UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)EnvironmentCE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);ProtectionIP67 (IEC 60529)GeneralDescriptionPowerDC 12V±25%, PoE (IEEE 802.3af)Power consumption: Max 2.8WPower InterfaceØ 5.5mm coaxial power plugDimensionsΦ118x106mm (Ø4.6” x 4.2”)Weight0.48kg(1.06lb)MaterialMetalWorking Environment‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)Storage Environment‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)Surge protection4KVReset buttonSupportWeb Client Language13 LanguagesEnglish, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Year Manufactured | 2024 |
| Compatible Brand | UNIVIEW |
| Power Source | PoE |
| Color | White |
| Smart Home Compatibility | IFTTT |
| Brand | UNV |
| Type | Turret |
| Unit Type | Unit |
| Maximum Resolution | 2560x1600 |
| Model | IPC3624SR-ADF28KM-WP |
| Connectivity | IP / NETWORK |
| Features | 24/7 COLOR / FULL COLOR |
| Storage Capacity | N/A |
| Smart Home Protocol | Infrared |
| Power | 30 W |
| Operating Sound Rating | 90 dB |
| Surveillance Technology | IP/Network |
| Location | Outdoor & Indoor |
IPC3624SR-ADF28(40)KM-WP4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera• High quality image with 4MP, 1/1.8″CMOS sensor and F1.0 large aperture lens• 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;• Ultra 265, H.265, H.264, MJPEG• Colorhunter with Wise ISP technology ensures 24 hour full color images• 120dB true WDR technology enables clear image in strong light scene• Support 9:16 Corridor Mode• Built in Mic• White Light, up to 30m (98ft) warm light distance• Supports 256 GB Micro SD card• IP67 protection• Support PoE power supply• 3 Axis CameraDescriptionResolution4MPSensor1/1.8″CMOSMin. IlluminationColour: 0.0003 lux (F1.0, AGC ON)ShutterAuto/Manual, 1 ~ 1/100000sAdjustment anglePan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°S/N>52dBWDR120dBLensDescriptionLens typeIPC3624SR-ADF28KM-WP:2.8mmIPC3624SR-ADF40KM-WP:4.0mmIris TypeFixedIrisF1.0Field of View (H)IPC3624SR-ADF28KM-WP:110.4°IPC3624SR-ADF40KM-WP:89.4°Field of View (V)IPC3624SR-ADF28KM-WP:60.5°IPC3624SR-ADF40KM-WP:48.2°Field of View (D)IPC3624SR-ADF28KM-WP:115.2°IPC3624SR-ADF40KM-WP:94.7°DORIDescriptionDORI Distance(Lens)IPC3624SR-ADF28KM-WP:2.8mmIPC3624SR-ADF40KM-WP:4.0mmDORI Distance(Detect)IPC3624SR-ADF28KM-WP:43.4m(142.5.7ft)IPC3624SR-ADF40KM-WP:62.1(203.6ft)DORI Distance(Observe)IPC3624SR-ADF28KM-WP:17.4(57.0ft)IPC3624SR-ADF40KM-WP:24.8(81.5ft)DORI Distance(Recognize)IPC3624SR-ADF28KM-WP:8.7(28.5ft)IPC3624SR-ADF40KM-WP:12.4(40.7ft)DORI Distance(Identify)IPC3624SR-ADF28KM-WP:4.3(14.3ft)IPC3624SR-ADF40KM-WP:6.2(20.4ft)IlluminatorDescriptionIllumination Distance(Warm Light)30mLight On/Off ControlAuto/ManualVideoDescriptionVideo CompressionUltra 265; H.265; H.264; MJPEGH.264 code profileBaseline profile, Main profile, High profileFrame RateMain Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;Video Bit Rate128 Kbps~6144KbpsU-codeSupportOSDUp to 4 OSDsPrivacy MaskUp to 4 areasROIUp to 8 areasVideo streamDual streamsImageDescriptionWhite BalanceAuto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2Digital noise reduction2D/3D DNRSmart IlluminationSupportFlipNormal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwiseDewarpingN/AHLCSupportBLCSupportDefogDigital DefogEventsDescriptionBasic DetectionMotion detection; Ultra motion detection; Tampering alarm; Audio detection; Cross line (based on human body detection); Intrusion (based on human body detection)General FunctionWatermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP AuthenticationAudioDescriptionAudio CompressionG.711U; G.711AAudio Bitrate64 KbpsTwo-way AudioN/ASuppressionSupportSampling Rate8KHZStorageDescriptionEdge StorageMicro SD，up to 256 GBNetwork StorageANR; NAS(NFS)NetworkDescriptionProtocolsIPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLSCompatible IntegrationONVIF (Profile S, Profile G, Profile T); API; SDKUser/HostUp to 32 users, 2 user levels: administrator and common userSecurityPassword protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIFClientUNV‑Link; UNV‑Link Pro; EZStationWeb BrowserPlug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and aboveInterfaceDescriptionAudio I/ON/AAlarm I/ON/ASerial PortN/ABuilt-in MicSupportBuilt-in SpeakerN/AWIFIN/ANetwork1 * RJ45 10M/100M Base‑TX EthernetVideo OutputN/ACertificationDescriptionEMCCE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035)FCC (FCC 47 CFR part15 B)SafetyCE LVD (EN 62368‑1)UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)EnvironmentCE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);ProtectionIP67 (IEC 60529)GeneralDescriptionPowerDC 12V±25%, PoE (IEEE 802.3af)Power consumption: Max 2.8WPower InterfaceØ 5.5mm coaxial power plugDimensionsΦ118x106mm (Ø4.6” x 4.2”)Weight0.48kg(1.06lb)MaterialMetalWorking Environment‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)Storage Environment‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)Surge protection4KVReset buttonSupportWeb Client Language13 LanguagesEnglish, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
