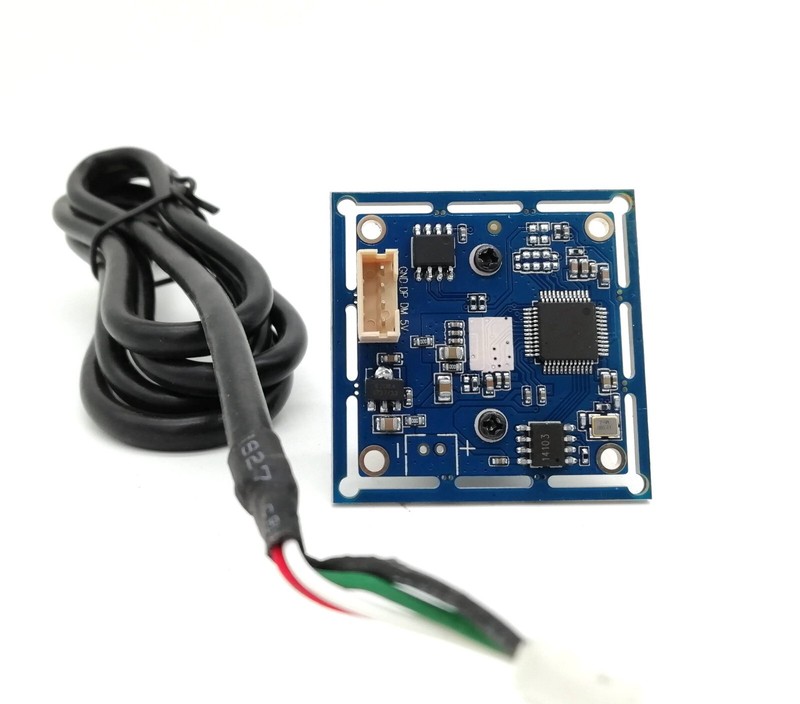

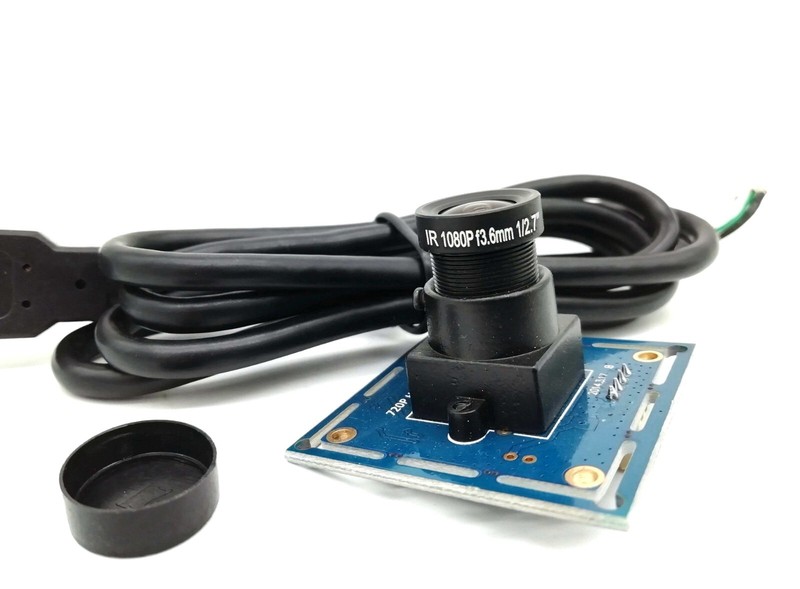

OpenPnP USB Interface 1.0MP 720P Vision Camera Module 3.6mm Focal Length
OpenPnP USB Interface 1.0MP 720P Vision Camera Module 3.6mm Focal Length
RoboGo OpenPnP Vision Camera720P resolution 1280x720PUSB interface Camera Module for Monochrome StereoAndroid, Windows, Linux system supportHigh Definition: 720PConnectivity: USBFocal Length: 3.6mm, 6mm, 8mm optionalSensor: OV9712 CMOSYUY and MJPEG compression format optionalCMOS 720P sensor for high quality image and low power consumptionHigh speed USB 2.0 interface for high resolution PC camera interfaceHigh pixel technology for sharp image and accurate color reproductionLow light performance – ideal for any lighting conditionSuper small outline and thin profile for embedded applicationsHigh frame rate– deliver 30 fps in 1280X720 resolutionHigh quality lens, true and undistorted color imageLow power consumption – ideal for portable equipmentUVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or aboveCamera with UVCIndustrial USB 720P Vision Camera Module for OpenPnP ProjectsModelVC_USB100WSensorOV9712Lens Size1/4 inchPixel size3.0um X 3.0umImage area3888 µm x 2430 µmMost effective pixel1280(H)X720(V)Output image formatMJPEG / YUV2（YUYV）Supported resolution and frame rate1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fpsSignal-to-noise ratio40dBSensitivity3.7V/lux-sec@550nmMinimum illumination0. 1luxInterface TypeUSB2.0 High SpeedUSB protocolUSB2.0 HS/FSOTG protocolUSB2.0 OTGAdjustable parametersBrightness, Contrast, Color Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, ExposurePower supplyUSB BUS POWER 4P-2.0mmOperating VoltageDC5VOperating current100mA~120mAOperating temperature -10～70℃Wire1 meterSupported systemWinXP/Vista/Win7/Win8Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or laterWince with UVCAndroid 4.0 or above with UVC
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Power Source | USB |
| Brand | Unbranded |
| Type | Vision Camera |
| Maximum Resolution | 1280x720 |
| Model | Camera Module |
| Power | 100W |
| Operating Sound Rating | 40 dB |
| Surveillance Technology | UVC |
RoboGo OpenPnP Vision Camera720P resolution 1280x720PUSB interface Camera Module for Monochrome StereoAndroid, Windows, Linux system supportHigh Definition: 720PConnectivity: USBFocal Length: 3.6mm, 6mm, 8mm optionalSensor: OV9712 CMOSYUY and MJPEG compression format optionalCMOS 720P sensor for high quality image and low power consumptionHigh speed USB 2.0 interface for high resolution PC camera interfaceHigh pixel technology for sharp image and accurate color reproductionLow light performance – ideal for any lighting conditionSuper small outline and thin profile for embedded applicationsHigh frame rate– deliver 30 fps in 1280X720 resolutionHigh quality lens, true and undistorted color imageLow power consumption – ideal for portable equipmentUVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or aboveCamera with UVCIndustrial USB 720P Vision Camera Module for OpenPnP ProjectsModelVC_USB100WSensorOV9712Lens Size1/4 inchPixel size3.0um X 3.0umImage area3888 µm x 2430 µmMost effective pixel1280(H)X720(V)Output image formatMJPEG / YUV2（YUYV）Supported resolution and frame rate1280X720 MJPEG@ 30fps YUY2@10fps/ 960X720MJPEG@ 30fps YUY2@15fps800X600 MJPEG@30fps YUY2@20fps/ 640X480 MJPEG@ 30fps YUY2@ 30fps352X248 MJPEG@30fps YUY2@ 30fps/ 320X240 MJPEG@ 30fps YUY2@ 30fps176X144 MJPEG@30fps YUY2@ 30fps/ 160X120 MJPEG@ 30fps YUY2@ 30fpsSignal-to-noise ratio40dBSensitivity3.7V/lux-sec@550nmMinimum illumination0. 1luxInterface TypeUSB2.0 High SpeedUSB protocolUSB2.0 HS/FSOTG protocolUSB2.0 OTGAdjustable parametersBrightness, Contrast, Color Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, ExposurePower supplyUSB BUS POWER 4P-2.0mmOperating VoltageDC5VOperating current100mA~120mAOperating temperature -10～70℃Wire1 meterSupported systemWinXP/Vista/Win7/Win8Linux with UVC（above linux-2.6.26）MAC-OS X 10.4.8 or laterWince with UVCAndroid 4.0 or above with UVC
