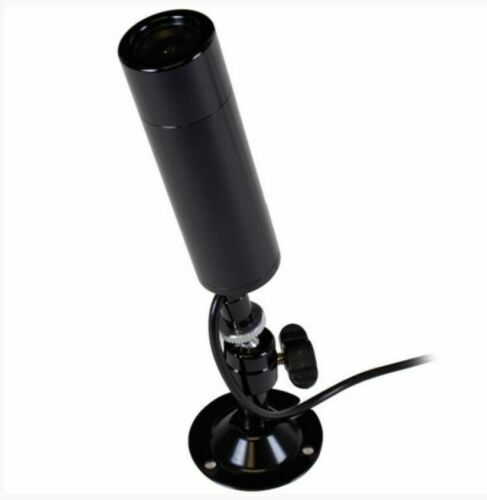

KT&C KTC-HMB7823 HD-SDI EX SDI bullet camera Full 1080p 2mp 12V DC Free Lens opt
KT&C KTC-HMB7823 HD-SDI EX SDI bullet camera Full 1080p 2mp 12V DC Free Lens opt

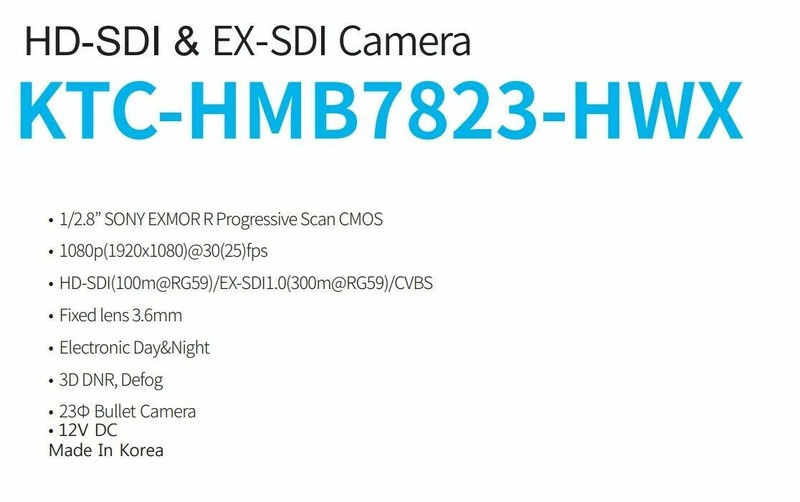

HD/EX-SDI CAMERAKTC-HMB7823-HWX1/2.8" Progressive Scan CMOS1080p(1920x1080)@30(25)fpsHD-SDI(100m@RG59)/EX-SDI1.0(300m@RG59)/CVBSFixed lens 3.6mm or pick your best lens from wide to narrow view. (options are 2.9mm, 3.6mm(stock lens) 6,8,12,16mm all keeping the camera waterproof.Electronic Day&Night3D DNR, Defog23Φ Bullet camera SPECSImage Sensor1/2.8" Progressive Scan CMOSEffective Pixels1945(H) x 1097(V)Max. Video ResolutionHD-SDI/EX-SDI1.0: 1080p@30fps(25fps)/720p@60fps(50fps)/720p@30fps(25fps)TV out: CVBS NTSC/PALLensFixed lens options available but ships with.3.6mm, F 2.0, 112.3(D)x93.7(H)x49.3˚(V)Min.Illumination0.1Lux(F2.0, AGC20dB, DSS:x2)IR LEDsN/AIR RangeN/AWhite BalanceAUTO/PUSH LOCK/MANUALWDR(Wide Dynamic Range)OFF/BLC/HLCD-WDR(Digital WDR)N/AElectronic Shutter SpeedDigital Slow Shutter(OFF~x32)AUTO/FLICKER/MANUAL/(1/30(25)~1/30,000)AGC(Auto Gain Control)OFF~42dBDay&NightAUTO/COLOR/B&W (Electronic D&N)DNR(Digital Noise Reduction)3D-DNR(OFF/Low/Middle/High)Motion DetectionOFF/ON(4 Zones)
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | KTC-HMB7823-HWX |
| Maximum Resolution | 1080P |
| Country/Region Of Manufacture | Korea, Republic of |
| Color Mode | Color Day, B&W Night |
| Surveillance Technology | HD SDI , EX SDI |
| Connectivity | BNC |
| Type | Bullet |
| Features | 12V DC |
| MPN | KTC-HMB7823-HWX |
| Brand | KT&C |
| Camera Technology | HD-SDI , EX SDI |
| Resolution | 1080p |
| Application | Indoor/Outdoor |
HD/EX-SDI CAMERAKTC-HMB7823-HWX1/2.8″ Progressive Scan CMOS1080p(1920×1080)@30(25)fpsHD-SDI(100m@RG59)/EX-SDI1.0(300m@RG59)/CVBSFixed lens 3.6mm or pick your best lens from wide to narrow view. (options are 2.9mm, 3.6mm(stock lens) 6,8,12,16mm all keeping the camera waterproof.Electronic Day&Night3D DNR, Defog23Φ Bullet camera SPECSImage Sensor1/2.8″ Progressive Scan CMOSEffective Pixels1945(H) x 1097(V)Max. Video ResolutionHD-SDI/EX-SDI1.0: 1080p@30fps(25fps)/720p@60fps(50fps)/720p@30fps(25fps)TV out: CVBS NTSC/PALLensFixed lens options available but ships with.3.6mm, F 2.0, 112.3(D)x93.7(H)x49.3˚(V)Min.Illumination0.1Lux(F2.0, AGC20dB, DSS:x2)IR LEDsN/AIR RangeN/AWhite BalanceAUTO/PUSH LOCK/MANUALWDR(Wide Dynamic Range)OFF/BLC/HLCD-WDR(Digital WDR)N/AElectronic Shutter SpeedDigital Slow Shutter(OFF~x32)AUTO/FLICKER/MANUAL/(1/30(25)~1/30,000)AGC(Auto Gain Control)OFF~42dBDay&NightAUTO/COLOR/B&W (Electronic D&N)DNR(Digital Noise Reduction)3D-DNR(OFF/Low/Middle/High)Motion DetectionOFF/ON(4 Zones)
