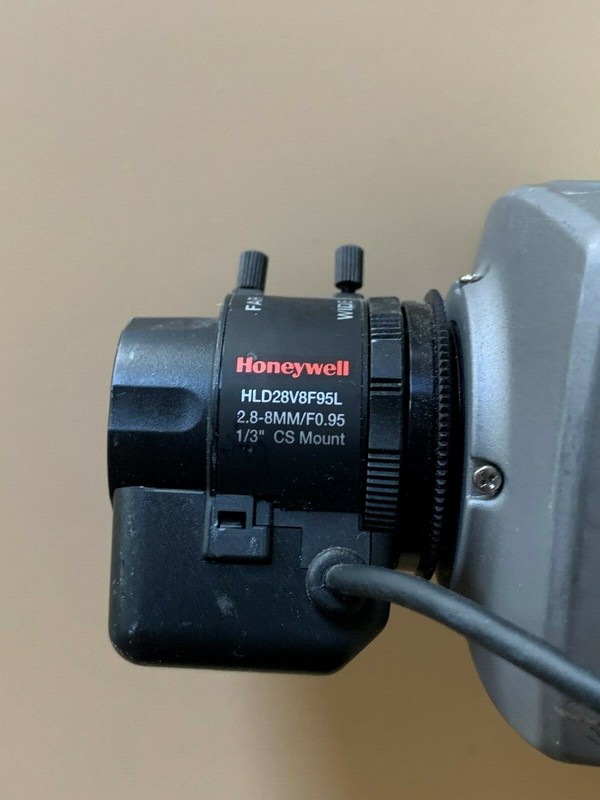

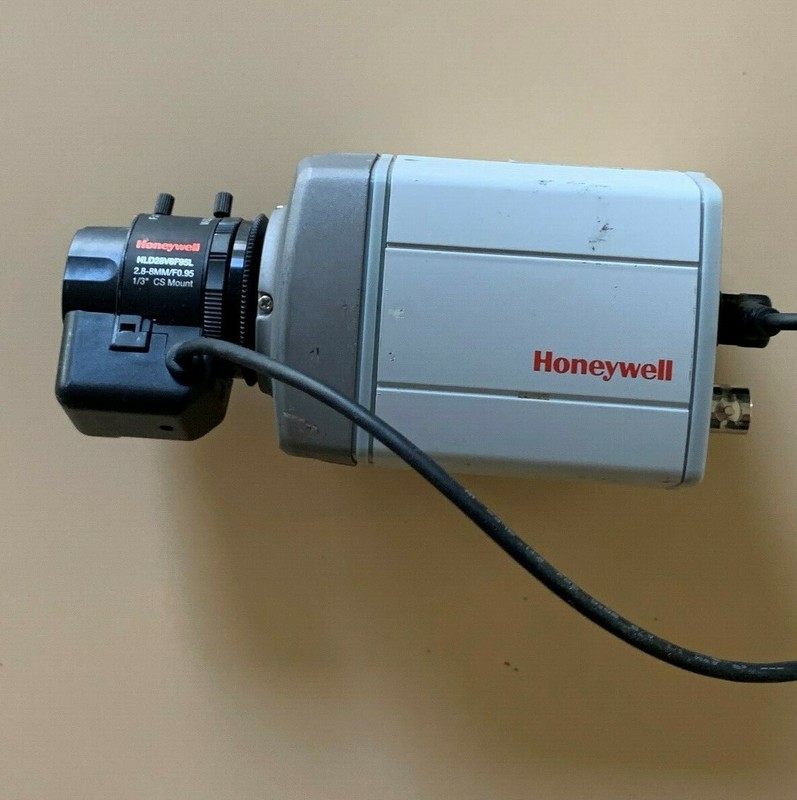

Honeywell HCU484, Ultra Wide Dynamic Camera
Honeywell HCU484, Ultra Wide Dynamic Camera
ideo Standard: NTSCScanning System: 525/60 linesImage Sensor: 1/3" WDR digital image deviceNumber of Pixels (H x V): 720 x 540Minimum Illumination: 0.4 lux @ F1.2Horizontal Resolution: >480 TVLVideo Output: 1 V p-p @ 75 OhmsSync System: 12 VDC: Internal, 24 VAC: Line lockS/N Ratio: 52 dB typicalAuto Gain Control: Auto (0 36 dB maximum)ALC: Variable Iris control for DC Drive LensesAutomatic Electronic Shutter: 1/60 - 1/100,000 secLens Iris Control: DC DriveWhite Balance: AWB/ATW/ATW Xtnd/ManualDynamic Range: 102 dB typical/120 dB max.Line Lock Phase Adjustment: Adjustable AC line lockBLC: Variable depending on WDR PresetOSD: Camera title setting/menu controlRemote Control: RS485 Diamond protocolInput Voltage: 12 VDC/24 VACInput Range: 11 - 16 VDC, 17 - 28 VACSurge Suppression: 1.5 kW transientPower Consumption: 2.5 WDimensions (W x H x D): 2.65 in. x 2.44 in. x 3.93 in. (67.22 mm x 61.90 mm x 99.93 mm)Weight: 1.1 lb (.5 kg) camera onlyConstruction: Housing: Aluminum, Finish: Cool Gray Powder Coat, Camera Mount 1/4 20 UNC, Lens Mount CS adjusting mounting ringConnector, Video Output: BNC connector, Lens: 4 Pin Connector, Power Input: Removable screw terminal blockLED: Green LED indicates Power OnTemperature: Operating: 14F to 113F (-10C to 45C), Storage: -4F to 140F (-20C to 60C)Relative Humidity: 20% to 80%, non-condensing
Specifications
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Return Shipping Will Be Paid By | Buyer |
| Model | HCU484 |
| Country/Region Of Manufacture | Korea, Republic of |
| Brand | Honeywell |
ideo Standard: NTSCScanning System: 525/60 linesImage Sensor: 1/3″ WDR digital image deviceNumber of Pixels (H x V): 720 x 540Minimum Illumination: 0.4 lux @ F1.2Horizontal Resolution: >480 TVLVideo Output: 1 V p-p @ 75 OhmsSync System: 12 VDC: Internal, 24 VAC: Line lockS/N Ratio: 52 dB typicalAuto Gain Control: Auto (0 36 dB maximum)ALC: Variable Iris control for DC Drive LensesAutomatic Electronic Shutter: 1/60 – 1/100,000 secLens Iris Control: DC DriveWhite Balance: AWB/ATW/ATW Xtnd/ManualDynamic Range: 102 dB typical/120 dB max.Line Lock Phase Adjustment: Adjustable AC line lockBLC: Variable depending on WDR PresetOSD: Camera title setting/menu controlRemote Control: RS485 Diamond protocolInput Voltage: 12 VDC/24 VACInput Range: 11 – 16 VDC, 17 – 28 VACSurge Suppression: 1.5 kW transientPower Consumption: 2.5 WDimensions (W x H x D): 2.65 in. x 2.44 in. x 3.93 in. (67.22 mm x 61.90 mm x 99.93 mm)Weight: 1.1 lb (.5 kg) camera onlyConstruction: Housing: Aluminum, Finish: Cool Gray Powder Coat, Camera Mount 1/4 20 UNC, Lens Mount CS adjusting mounting ringConnector, Video Output: BNC connector, Lens: 4 Pin Connector, Power Input: Removable screw terminal blockLED: Green LED indicates Power OnTemperature: Operating: 14F to 113F (-10C to 45C), Storage: -4F to 140F (-20C to 60C)Relative Humidity: 20% to 80%, non-condensing
