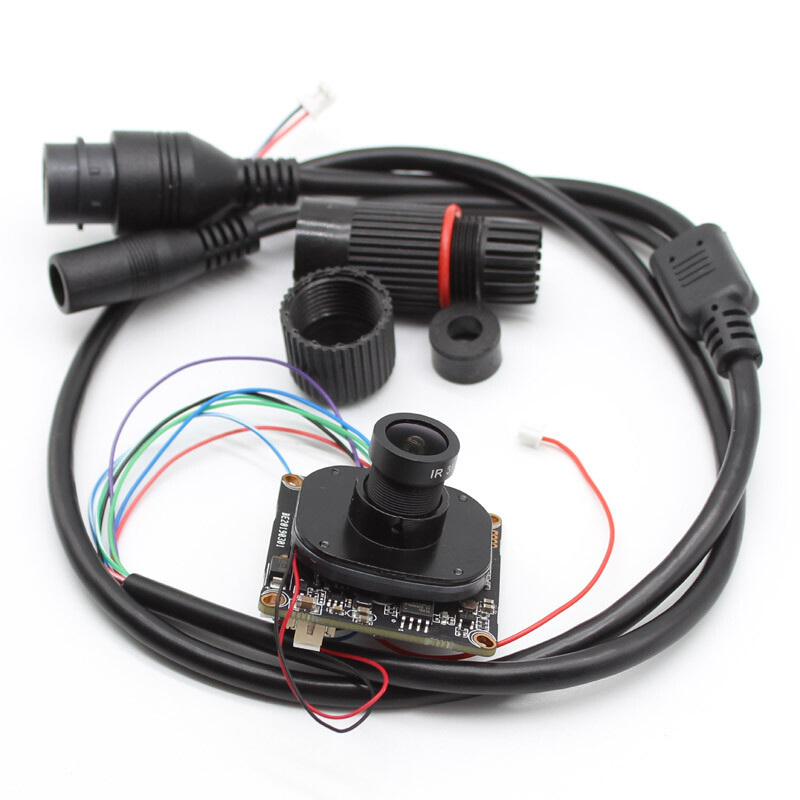

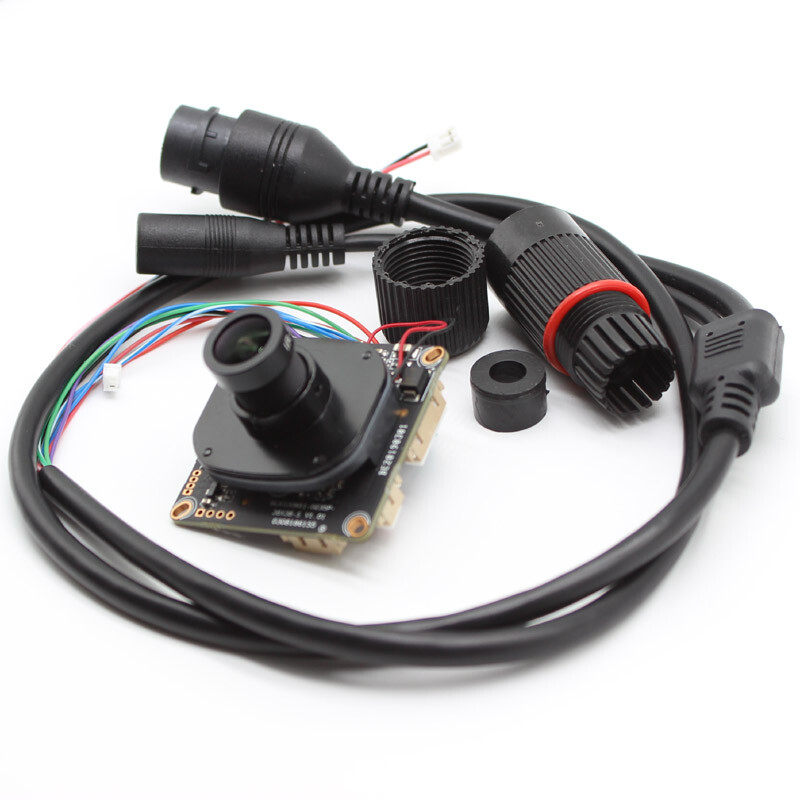

HD CCTV 4MP IP Camera Module Network Security board 1/2.8″ H.265+ 2.8mm lens
HD CCTV 4MP IP Camera Module Network Security board 1/2.8" H.265+ 2.8mm lens
4.0MP Low illumination H.265 AI IP Camera Module;Supporting Face detection, Humanoid detectionn, and supports customization of other smart functions;4.0MP HD Low illumination resolution, clear and fine images;Support 2D/3D noise reduction, digital wide dynamic;Advanced H.265(Compatible with H.264) video compression,Super low rate,high definition quality of image;Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5;Support ONVIF; access third party, Support various mobile monitoring(iPhone, Android);Provide web, CMS, center platform management software MYEYE, provide SDK developmentSupport cloud technology, easy to achieve network penetration, fro in-line and alarm information pushedModule 38*38mm size IP PCB Board. Lens: 2.8mm Lens, Optional: 2.1mm/2.8mm/3.6mm/4mm/6mm/8mm/12mm/16mm (If you need to choose the lens, please contact us) Specifications:Sensor4.0MP 1/2.8" AI Low illumination CMOS sensorSystem structureEmbedded RTOS, dual-core 32bit DSP, pure hard compression,watch dogMinimum Illuminationcolor 0.01Lux/F1.2, black/white 0.001Lux/F1.2Video compressionH.265 (Compatible with H.264), support dual stream, AVI; 0.1M~8Mpbs variable; 1~30f/s variableImage outputMain stream: 2560*1440/25fps 2304*1296/25fps 1920*1080/25fps;sub-stream: 800*448/25fpsWide dynamicNoise reductionDay and nightSupport digitalSupport 2D/3DSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6VSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6VReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testingNetwork interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etcSingal interfaceOne photo resistance interface,one IR-CUT interface,support photo resistance signal and IR-CUT links to IRShutter1/50(1/60)s to 1/10,000sAudio compressionG.711,support bidrectional talk,audio&video synchronizationAudio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphoneOther functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; perfect SDK, Support ONVIFIntelligence analysisSupporting human detection, face detection, and support to customize other intelligent functionsMobile monitoringSupport multiple mobile monitoring (iOS, Android)PowerDC12V/2A input, power consumption:≤3W,OtherSupport POE power supply (optional),The drive voltage of the light board is at 3.3VPackaging included: 1x HD 4MP CCTV IP Camera Module1x cctv microphone1x HD 2.8mm lens 1x IR Cut 1x Video Power IP Cable Warranty Term: One Year Warranty Payment:1. If you need to buy more goods, but the price is not cheap enough, or you did not find them in our store, please contact us!2. Buyers response for all tax or VAT under any circumstances. Shipping: 1. The item will be shipped within 1-3 business days after payment.2. All products have been checked and packaged in good condition before dispatch. 3. The package will be shipped by SpeedPAK or China post, if you need express shipping, please contact us to check the express shipping cost. If your order is large enough, we will ship it by DHL, Fedex, UPS or E-EMS.4. We provide 12 months Warranty, if the item is defective, please notify us within 5 days of delivery. We provide replacement service for defective items. Feedback:1. We will do a positive feedback automatically after receiving your positive feedback. We would appreciate your positive feedback. 2. If you are not satisfied with our product or service, please E-mail me with your problem before leaving a negative/neutral feedback or open a dispute, we work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers.We care about our valued customers, and will always be willing to help you. So if you have any problems, please E-mail us immediately. inkfrog terapeak On Dec-05-20 at 10:21:53 PST, seller added the following information:
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Model | 4MP IP |
| Country/Region Of Manufacture | China |
| Color Mode | Color |
| Surveillance Technology | IP/Network |
| Connectivity | IP/Network - Wired |
| Type | IP Camera |
| MPN | b10028 |
| Brand | Unbranded/Generic |
4.0MP Low illumination H.265 AI IP Camera Module;Supporting Face detection, Humanoid detectionn, and supports customization of other smart functions;4.0MP HD Low illumination resolution, clear and fine images;Support 2D/3D noise reduction, digital wide dynamic;Advanced H.265(Compatible with H.264) video compression,Super low rate,high definition quality of image;Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5;Support ONVIF; access third party, Support various mobile monitoring(iPhone, Android);Provide web, CMS, center platform management software MYEYE, provide SDK developmentSupport cloud technology, easy to achieve network penetration, fro in-line and alarm information pushedModule 38*38mm size IP PCB Board. Lens: 2.8mm Lens, Optional: 2.1mm/2.8mm/3.6mm/4mm/6mm/8mm/12mm/16mm (If you need to choose the lens, please contact us) Specifications:Sensor4.0MP 1/2.8″ AI Low illumination CMOS sensorSystem structureEmbedded RTOS, dual-core 32bit DSP, pure hard compression,watch dogMinimum Illuminationcolor 0.01Lux/F1.2, black/white 0.001Lux/F1.2Video compressionH.265 (Compatible with H.264), support dual stream, AVI; 0.1M~8Mpbs variable; 1~30f/s variableImage outputMain stream: 2560*1440/25fps 2304*1296/25fps 1920*1080/25fps;sub-stream: 800*448/25fpsWide dynamicNoise reductionDay and nightSupport digitalSupport 2D/3DSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6VSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6VReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testingNetwork interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etcSingal interfaceOne photo resistance interface,one IR-CUT interface,support photo resistance signal and IR-CUT links to IRShutter1/50(1/60)s to 1/10,000sAudio compressionG.711,support bidrectional talk,audio&video synchronizationAudio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphoneOther functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; perfect SDK, Support ONVIFIntelligence analysisSupporting human detection, face detection, and support to customize other intelligent functionsMobile monitoringSupport multiple mobile monitoring (iOS, Android)PowerDC12V/2A input, power consumption:≤3W,OtherSupport POE power supply (optional),The drive voltage of the light board is at 3.3VPackaging included: 1x HD 4MP CCTV IP Camera Module1x cctv microphone1x HD 2.8mm lens 1x IR Cut 1x Video Power IP Cable Warranty Term: One Year Warranty Payment:1. If you need to buy more goods, but the price is not cheap enough, or you did not find them in our store, please contact us!2. Buyers response for all tax or VAT under any circumstances. Shipping: 1. The item will be shipped within 1-3 business days after payment.2. All products have been checked and packaged in good condition before dispatch. 3. The package will be shipped by SpeedPAK or China post, if you need express shipping, please contact us to check the express shipping cost. If your order is large enough, we will ship it by DHL, Fedex, UPS or E-EMS.4. We provide 12 months Warranty, if the item is defective, please notify us within 5 days of delivery. We provide replacement service for defective items. Feedback:1. We will do a positive feedback automatically after receiving your positive feedback. We would appreciate your positive feedback. 2. If you are not satisfied with our product or service, please E-mail me with your problem before leaving a negative/neutral feedback or open a dispute, we work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers.We care about our valued customers, and will always be willing to help you. So if you have any problems, please E-mail us immediately. inkfrog terapeak On Dec-05-20 at 10:21:53 PST, seller added the following information:
