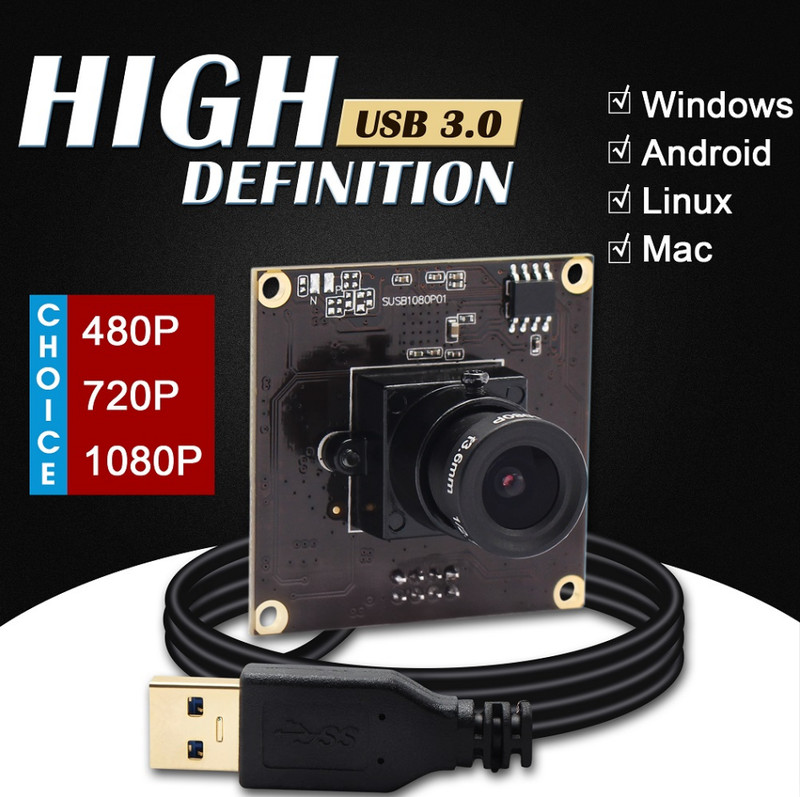

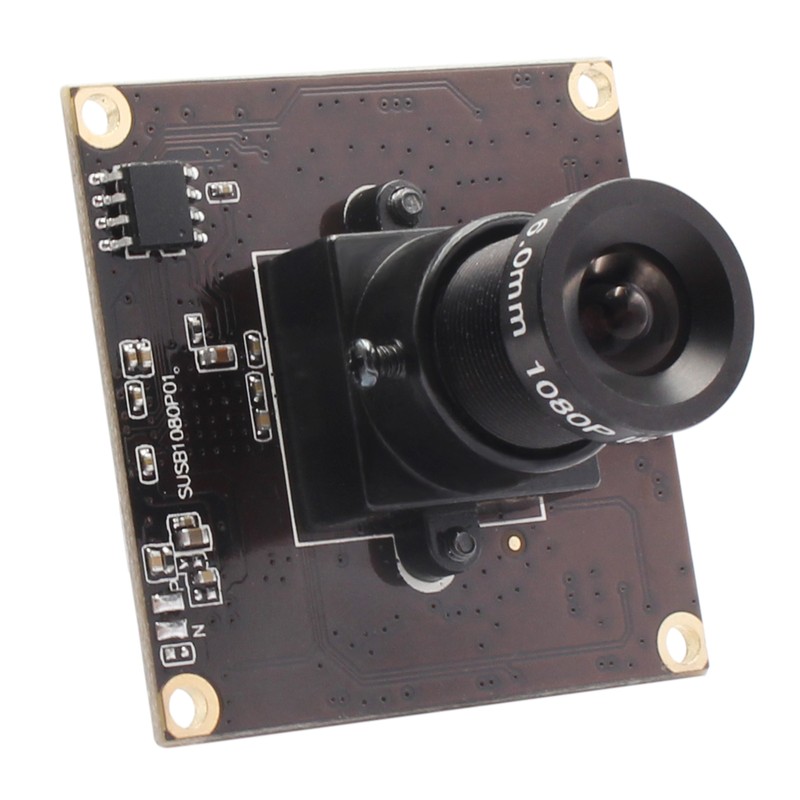

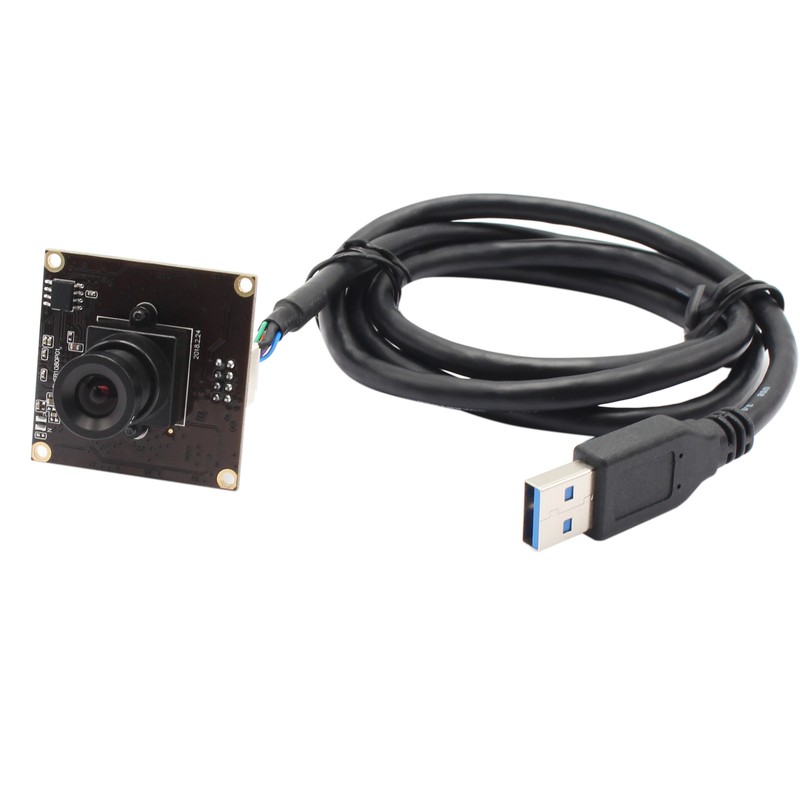

ELP 2MP Mini USB3.0 Webcam 1920*1080 MJPEG 50fps USB Camera Module for PC Laptop
ELP 2MP Mini USB3.0 Webcam 1920*1080 MJPEG 50fps USB Camera Module for PC Laptop
ELP USB 3.0 camera 1920*1080 MJPEG YUYV 50fps Sony IMX291 mini 38*38mm high speed USB camera module for Android Linux Window Mac Features: *1080P USB 3.0 Camera Module with 2.9mm lens *1/2.8 SONY IMX291 Color CMOS Sensor for high quality image *High speed USB 3.0 interface for high resolution PC camera interface. *Super small outline 38*38mm and thin profile for embedded applications. *High frame rate– deliver 50 fps in 1920X1080 resolution. *UVC compliance for use in OS Windows, Linux, Android *OTG support Specification: Model ELP-SUSB1080P01-L36 Sensor IMX291 Lens Size 1/2.8 inch Pixel Size 2.9µm X 2.9µm Max. Resolution 1920(H)X1080(V) Compression format MJPEG / YUV2（YUYV） Resolution & frame 1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps S/N Ratio 40dB Dynamic Range 65dB Sensitivity 1900mV/lux-sec@550nm Mini illumination 0. 01lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB3.0 High Speed Free Drive Protocol USB Video Class（UVC） AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure Lens Parameter 2.9mm Power supply USB BUS POWER Operating Voltage DC5V Working current 170mA~210mA Working temperature 0～70℃ Board size /Weight 38*38mm Cable Standard 1M Operating system request Win8 above Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC Application: Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc. Effect: Important: We are not responsible for any custom duty or import tax Return Policy 1. We offer full refund if you didn't receive your order in our promised time. 2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving 3. Items returned after 7 days of delivery are only for repair. 4. As the items returned, buyer should pay for the return shipping fee. Feedback 1.Please contact us before leaving any neutral or negative feedback. We will try our best to solve the problem ,Thank you 2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster. Thanks! Welcome Inquiry.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Power Source | USB |
| Dimensions (L X W X D)(mm) | 38X38Mmm,32x32mm |
| MPN | Does Not Apply |
| Free Driver | USB Video Class(UVC)1.1 |
| Max.resolution | 1920 x 1080 |
| Smart Home Compatibility | Camera 1080P |
| High Definition | 1080P(Full-HD) |
| Technology | USB3.0 |
| Manufacturer Warranty | 1 Year |
| Minimum Illumination(Lux) | 0.5lux |
| Features | USB3.0 Video Camera |
| Storage Capacity | Web 1080p camera |
| Surveillance Technology | CCTV |
| Compatible Brand | 2MP camera |
| Color Mode | Color |
| Brand | ELP |
| Type | usb3.0 Camera module |
| Maximum Resolution | 1920x1080 |
| Model | ELP-SUSB1080P01-L36 |
| Connectivity | USB 3.0 |
| Country/Region Of Manufacture | China |
| Smart Home Protocol | Thread |
| Pixel | 2MP |
| Operating Sound Rating | Webcam |
| Power | DC5V |
| Location | Indoor Only |
ELP USB 3.0 camera 1920*1080 MJPEG YUYV 50fps Sony IMX291 mini 38*38mm high speed USB camera module for Android Linux Window Mac Features: *1080P USB 3.0 Camera Module with 2.9mm lens *1/2.8 SONY IMX291 Color CMOS Sensor for high quality image *High speed USB 3.0 interface for high resolution PC camera interface. *Super small outline 38*38mm and thin profile for embedded applications. *High frame rate– deliver 50 fps in 1920X1080 resolution. *UVC compliance for use in OS Windows, Linux, Android *OTG support Specification: Model ELP-SUSB1080P01-L36 Sensor IMX291 Lens Size 1/2.8 inch Pixel Size 2.9µm X 2.9µm Max. Resolution 1920(H)X1080(V) Compression format MJPEG / YUV2（YUYV） Resolution & frame 1920X1080 MJPEG@ 50fps/ USB3.0 1920X1080 YUY2@ 50fps 1280X720 MJPEG@ 50fps / USB3.0 1280X720 YUY2@ 50fps 640X480MJPEG@ 50fps / USB3.0 640X480 YUY2@ 50fps S/N Ratio 40dB Dynamic Range 65dB Sensitivity 1900mV/lux-sec@550nm Mini illumination 0. 01lux Shutter Type Electronic rolling shutter / Frame exposure Connecting Port type USB3.0 High Speed Free Drive Protocol USB Video Class（UVC） AEC Support AEB Support AGC Support Adjustable parameters Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Backlight Contrast, Exposure Lens Parameter 2.9mm Power supply USB BUS POWER Operating Voltage DC5V Working current 170mA~210mA Working temperature 0～70℃ Board size /Weight 38*38mm Cable Standard 1M Operating system request Win8 above Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Android 4.0 or above with UVC Application: Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc. Effect: Important: We are not responsible for any custom duty or import tax Return Policy 1. We offer full refund if you didn’t receive your order in our promised time. 2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving 3. Items returned after 7 days of delivery are only for repair. 4. As the items returned, buyer should pay for the return shipping fee. Feedback 1.Please contact us before leaving any neutral or negative feedback. We will try our best to solve the problem ,Thank you 2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster. Thanks! Welcome Inquiry.
