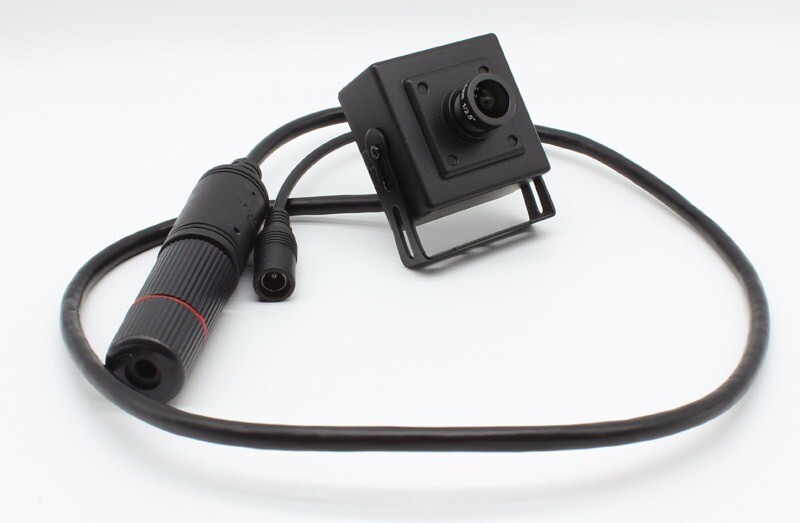

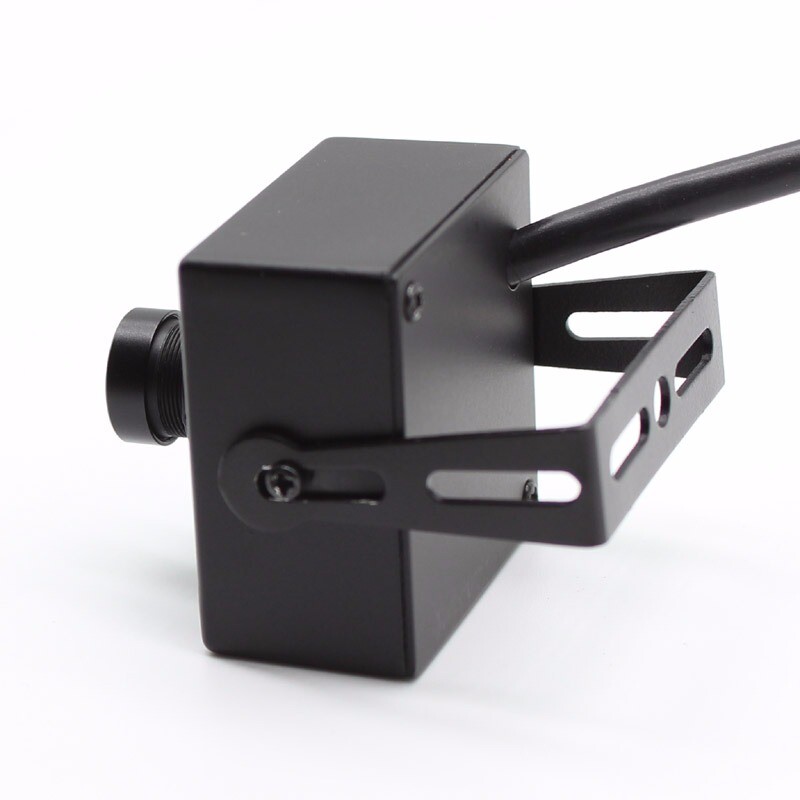

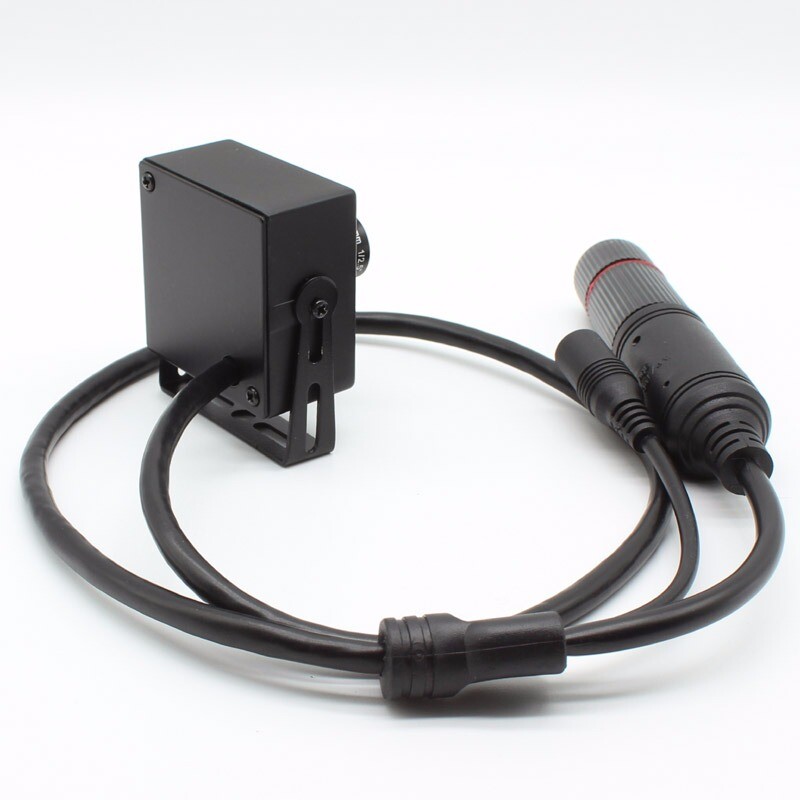

CCTV 48V POE AI IP Camera 5MP Mini Audio Network Black light H.265 ONVIF xmeye
CCTV 48V POE AI IP Camera 5MP Mini Audio Network Black light H.265 ONVIF xmeye
1/2.8" 5.0mp Low illumination H.265 AI POE IP Audio Camera;Supporting human detection, face detection, and support to customize other intelligent functions5.0MP HD Low illumination resolution,clear and fine images;Support 2D/3D noise reduction,digital wide dynamic;Advanced H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image;Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。Support ONVIF; access third party;Support various mobile monitoring(iPhone,Android);Provide web, CMS, VMS center platform management software XMEYE, provide SDK developmentSupport cloud technology,easy to achieve network penetration,fro in-line and alarm information pushedSupport POE power supply, it will reduce the trouble of cable arrangement. and this POE meet to 802.3AF/AT standard, it is very stable and reliable for use.Support 12V/2A power supply. Lens: 2.8mm 5MP lens.Optional: 2.1mm/2.8mm/3.6mm/4mm/6mm/8mm/12mm/16mm (If you need to choose the lens, please leave message when you buy it)Specifications:Sensor5.0MP 1/2.8" G5C Low illumination CMOS sensorSystem structureEmbedded RTOS,dual-core 32bit DSP, pure hard compression,watch dogMinimum Illuminationcolor 0.01Lux/F1.2,black/white 0.001Lux/F1.2Video compressionH.265AI/H.265+ (Compatible with H.265/H.264), support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variableImage outputMain stream: 5MP 2880*1600/15fps; 4MP: 2560*1440/21fps, 3MP: 2304*1296/25fps, 1920*1080/25fps;sub-stream: 800*448/25fps.Wide dynamic Noise reduction Day and night Support digital ,Support 2D/3D ,Support IR-CUT, IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6VReliabilityComprehensive lightning protection, 7 * 24 hours -10℃ ~ 65℃ high temperature stable and reliable testingNetwork interface1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etcSingal interfaceOne photo resistance interface,one IR-CUT interface, support photo resistance signal and IR-CUT links to IRShutter1/50(1/60)s to 1/10,000sAudio compressionG.711,support bidrectional talk,audio&video synchronizationAudio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphoneOther functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; perfect SDK, Support ONVIFIntelligence analysisSupporting human detection, face detection, and support to customize other intelligent functionsMobile monitoringSupport multiple mobile monitoring (iOS, Android)PowerStandard POE Switch or DC 12V/2AWeight0.2kg删除列删除行插入列插入行向右合并单元格向下合并单元格水平拆分单元格垂直拆分单元格背景色删除表格全选表格隐藏边框 Note:1. This product power from POE, need to connect with a 802.3af/at Standard POE Switch.2. It has auxiliary power supply connecter, can be used like a Non-POE IP camera (connect with a 12V/2A adapter), But it will not include the power adapter. Integrated Monitoring SystemSystem 1: Camera + POE Switch + Router + Computer/Laptop/SmartphoneNOTE: System 1also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.System 2: Camera + POE Switch + Router + NVR + Monitor Packaging included:1x HD 5MP CCTV POE Audio IP Camera1x manual Warranty Term: One Year Warranty Payment:1. If you need to buy more goods, but the price is not cheap enough, or you did not find them in our store, please contact us! 2. Buyers response for all tax or VAT under any circumstances. Shipping: 1. The item will be shipped within 1-3 business days after payment. 2. The package will be shipped by SpeedPak or China post, SpeedPak shipping time is about 1-2 weeks to arrive to you. If you need express shipping, please contact us to check the express shipping cost. If your order is large enough, we will ship it by DHL, Fedex, UPS or EMS.3. All products have been checked and packaged in good condition before dispatch. 4. We provide 12 months Warranty, if the item is defective, please notify us within 5 days of delivery. We provide replacement service for defective items. Feedback:1. We will do a positive feedback automatically after receiving your positive feedback. We would appreciate your positive feedback. 2. If you are not satisfied with our product or service, please E-mail me with your problem before leaving a negative/neutral feedback or open a dispute, we work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. We care about our valued customers, and will always be willing to help you. So if you have any problems, please E-mail us immediately.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Brand | Unbranded/Generic |
| Type | Box/Body |
| Color Mode | Color |
| Model | 5MP POE IP |
| Connectivity | IP/Network - Wired |
| Features | Wide Angle |
| MPN | c93pa6028 |
| Country/Region Of Manufacture | China |
| Application | Indoor Only |
| Surveillance Technology | IP/Network |
1/2.8″ 5.0mp Low illumination H.265 AI POE IP Audio Camera;Supporting human detection, face detection, and support to customize other intelligent functions5.0MP HD Low illumination resolution,clear and fine images;Support 2D/3D noise reduction,digital wide dynamic;Advanced H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image;Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。Support ONVIF; access third party;Support various mobile monitoring(iPhone,Android);Provide web, CMS, VMS center platform management software XMEYE, provide SDK developmentSupport cloud technology,easy to achieve network penetration,fro in-line and alarm information pushedSupport POE power supply, it will reduce the trouble of cable arrangement. and this POE meet to 802.3AF/AT standard, it is very stable and reliable for use.Support 12V/2A power supply. Lens: 2.8mm 5MP lens.Optional: 2.1mm/2.8mm/3.6mm/4mm/6mm/8mm/12mm/16mm (If you need to choose the lens, please leave message when you buy it)Specifications:Sensor5.0MP 1/2.8″ G5C Low illumination CMOS sensorSystem structureEmbedded RTOS,dual-core 32bit DSP, pure hard compression,watch dogMinimum Illuminationcolor 0.01Lux/F1.2,black/white 0.001Lux/F1.2Video compressionH.265AI/H.265+ (Compatible with H.265/H.264), support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variableImage outputMain stream: 5MP 2880*1600/15fps; 4MP: 2560*1440/21fps, 3MP: 2304*1296/25fps, 1920*1080/25fps;sub-stream: 800*448/25fps.Wide dynamic Noise reduction Day and night Support digital ,Support 2D/3D ,Support IR-CUT, IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6VReliabilityComprehensive lightning protection, 7 * 24 hours -10℃ ~ 65℃ high temperature stable and reliable testingNetwork interface1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etcSingal interfaceOne photo resistance interface,one IR-CUT interface, support photo resistance signal and IR-CUT links to IRShutter1/50(1/60)s to 1/10,000sAudio compressionG.711,support bidrectional talk,audio&video synchronizationAudio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphoneOther functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; perfect SDK, Support ONVIFIntelligence analysisSupporting human detection, face detection, and support to customize other intelligent functionsMobile monitoringSupport multiple mobile monitoring (iOS, Android)PowerStandard POE Switch or DC 12V/2AWeight0.2kg删除列删除行插入列插入行向右合并单元格向下合并单元格水平拆分单元格垂直拆分单元格背景色删除表格全选表格隐藏边框 Note:1. This product power from POE, need to connect with a 802.3af/at Standard POE Switch.2. It has auxiliary power supply connecter, can be used like a Non-POE IP camera (connect with a 12V/2A adapter), But it will not include the power adapter. Integrated Monitoring SystemSystem 1: Camera + POE Switch + Router + Computer/Laptop/SmartphoneNOTE: System 1also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.System 2: Camera + POE Switch + Router + NVR + Monitor Packaging included:1x HD 5MP CCTV POE Audio IP Camera1x manual Warranty Term: One Year Warranty Payment:1. If you need to buy more goods, but the price is not cheap enough, or you did not find them in our store, please contact us! 2. Buyers response for all tax or VAT under any circumstances. Shipping: 1. The item will be shipped within 1-3 business days after payment. 2. The package will be shipped by SpeedPak or China post, SpeedPak shipping time is about 1-2 weeks to arrive to you. If you need express shipping, please contact us to check the express shipping cost. If your order is large enough, we will ship it by DHL, Fedex, UPS or EMS.3. All products have been checked and packaged in good condition before dispatch. 4. We provide 12 months Warranty, if the item is defective, please notify us within 5 days of delivery. We provide replacement service for defective items. Feedback:1. We will do a positive feedback automatically after receiving your positive feedback. We would appreciate your positive feedback. 2. If you are not satisfied with our product or service, please E-mail me with your problem before leaving a negative/neutral feedback or open a dispute, we work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. We care about our valued customers, and will always be willing to help you. So if you have any problems, please E-mail us immediately.
