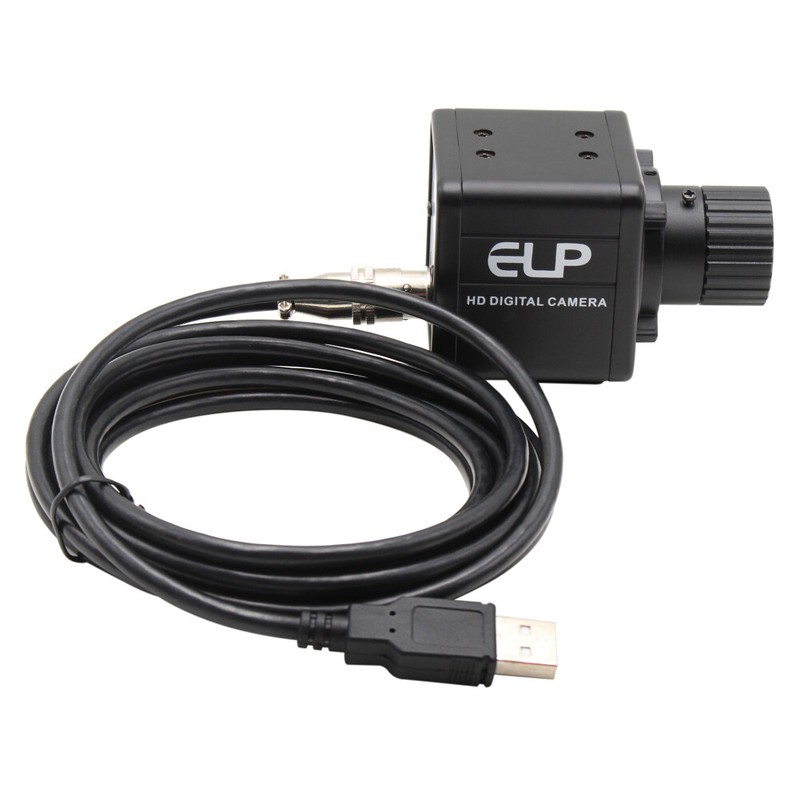

8Mp Mini Box USB2.0 Camera w/ 4mm Manual Focus Lens ELP HD Sony IMX179 Webcamera
8Mp Mini Box USB2.0 Camera w/ 4mm Manual Focus Lens ELP HD Sony IMX179 Webcamera
HomePaymentShippingReturn PolicyAbout UsContact UsFeedback8MP HD Mjpeg YuY2 digital 1/3.2 Sony IMX179 sensor 4mm manual focus lens mini usb camera module for industrial equipment Features: *Max resolution 3264X2448*1/3.2” Sony IMX179 sensor for high quality image and low power consumption*High quality 4mm /6mm/ 8mm lens, with manaul Focus adjustable*With Metal black mini box industrial housing *With firm aviation connector, Cable not easy to loose*YUY and MJPEG compression format optional*High speed USB 2.0 interface for high resolution PC camera interface*Super small outline and thin profile for embedded applications*High frame rate- deliver 30 fps in 3200*2400 resolution*Low power consumption- ideal for portable equipment*UVC for use inWin XPWin7Win8AndroidLinuxMac OS Specifications: Sensor Type: Sony (1/3.2”) IMX179Active Array Size : 3264X2448Lens4mm/6mm/8mm manual lens optionalMinimal illumination : 0.5LuxMaximum Image Transfer Rate :3264X2448 MJPEG 15fps YUY2 2fps2592X1944 MJPEG 15fps YUY2 3fps2048X1536 MJPEG 20fps YUY2 3fps1600X1200 MJPEG 20fps YUY2 10fps1280X960 MJPEG 20fps YUY2 10fps1024X768 MJPEG 30fps YUY2 10fps800X600 MJPEG 30fps YUY2 30fps640X480 MJPEG 30fps YUY2 30fpsmodule Size : 38mm * 38mm /32mm * 32mmTemperature (Operation) : -20degree to 70 degreeTemperature (Stable Image): 0 degree to 60°degreeCamera Board Assembly technique : SMT (ROSH)Focus :ManualObject distance: 5CM-100MResolution : 600LW/PH (Center)Interface :USB 2.0 High Speedprotocol : USB Video Class(UVC)Power : USB bus powerOperating system request: Win XPWin7Win8AndroidLinuxMac OSCertifications : FCC and CES/N Ratio : 44dBDynamic Range : 83.5dBShutter :Rolling shutter/ frame exposureIR Filter : 650±10nmAGC/AEC/AWB/ABF : AutoOutput Formats :YUYV/MJPEGIR CUTSUPPORTAdjustable parameters Brightness Contrast Hue Saturation Sharpness Gamma WhiteBalance Exposure Focus Package LQFN-40pin USB Cable 3M usb cable ApplicationsCar and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc. used for all kinds of machine as below:machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc. PaymentDelivery detailsTerms of salesAbout usContact usPayment1.We accept Paypal only. 2.Payment must be received within 7 working days. Or unpaid case will be opened automatically. Delivery details1.We ship goods to customer's confirmed paypal address. Please be sure your paypal address is correct before bidding. 2.Items will be shipped out within 48 hours once payment cleared. By registered air mail with tracking number. Orders placed on weekends or holidays will be processed on Monday or next working day. 3.International buyers please note: Import duties,taxes and charges are not included in the item price or shipping charges. These fees are buyers responsibility. So, Please check with your country's customs office to determine what these additional costs will be prior to bidding. 4.Delivery time:For USA buyers we'll ship by e-packet takes arround 7-12 working days. Other countries we'll ship by Registered Air Mail. Arround delivery time as bellow for your referrence.Australia, Canada 10-18 working daysUK, France, Austria, Germany, Spain and other Europe countries: 10-25 working daysGreece, Malta 15-40 working daysRussian Federation, Italy, Brazil, Africa countries: 20-40 days due to customs restrictionThe estimated arrival time above just for your refference, Not guaranteed. We don't responsible for any customs duties. Terms of sales1.If the goods dead on arrival, Please take photoes for us confirmation and reach us first time for exchange or refund. 2.Buyers have purchased a wrong item or don't like the item received, Please return within 7 days and reach us first before returning. 3.Ailipu Technology Co., Ltd warrants our product to be free from manufacturers maintenance for 2 years. The warranty will not be covered under the following conditions : a) Out-of-warranty products. b) The product is modified without Ailipu Technology Co.,Ltd approval. c) Obvious attack of appearance whatever it is. d) The product is subjected to unusual physical or electrical stress, including physical damage, burnt components and broken connectors.4. The customer is responsible for returning the defective product at his own expense. About usAilipu Technology Co.,Ltd have 10 years history, is a professional manufacturer of surveillance system. We produce traditional analog CCTV camera, standalone DVR recorder for cctv camera,but also produce popular megapixel network IP cameras, NVR recorder for IP cameras too.Besides, Ailipu Technology Co., Ltd already developing its own special USB Cameras for industrial vision. Recently, Ailipu company present new USB cameras module range from 30W Pixel, 1megapixel, 2megapixe, 3megapixel, 5 megapixel to 5megapixel autofocus, which already used in all kinds of industrial system. We can also OEM or customize products specially by customers' requirements.Contact usIf you have any questions,Please contact with us via eBay message! Our Service Officer will reply in 24 hours!(Excluding Weekends and Public Holidays) Working time:Our Duty TimeChina TimeUSA (pacific time) StartEndStartEndMondayAM 9:00PM 18:00SundayPM 17:00AM 2:00TuesdayAM 9:00PM 18:00MondayPM 17:00AM 2:00WednesdayAM 9:00PM 18:00TuesdayPM 17:00AM 2:00ThursdayAM 9:00PM 18:00WednesdayPM 17:00AM 2:00FridayAM 9:00PM 18:00ThursdayPM 17:00AM 2:00SaturdayOut of DutyFriday SaturdaySundayOut of DutySaturday Sunday During the duty time ,we can give you a quick respond. If we are out of work ,please kindly be patient and considerable to give us a little more time ,not just leave the neutral or negative feedback without communication ,thank you for your cooperation !
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Type | USB Camera Module |
| Connectivity | USB |
| Brand | ELP |
| Color Mode | Color |
| Sensor | SONY IMX179 |
| Connecting Port Type | USB2.0 High Speed |
| Lens | 4mm Manual Focus Lens |
| Features | box camera |
| MPN | Does Not Apply |
| Model | ELP-USB8MP02G-MF40 |
| Resolution | 8MP |
| Smart Home Protocol | Thread |
| Surveillance Technology | CCTV |
| Smart Home Compatibility | camera with usb |
| Compatible Brand | Webcam |
| Location | Indoor Only |
| Maximum Resolution | 8MP |
| Storage Capacity | video camera |
| Power | DC5V |
| Operating Sound Rating | high difination |
