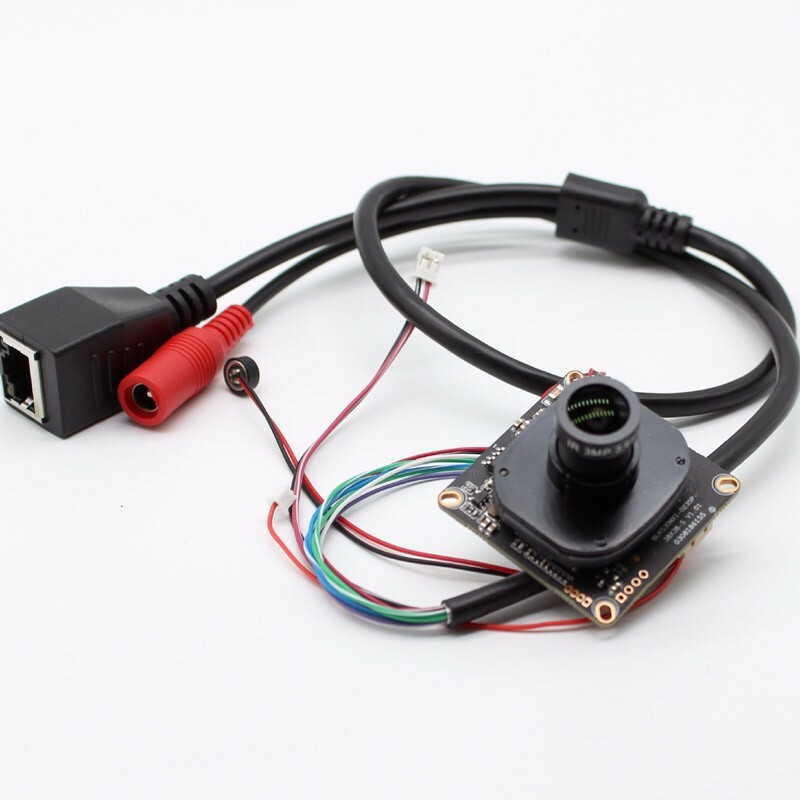

3MP Audio HD CCTV IP AI Camera Module 2560*1440 Network Security IPC board ONVIF
3MP Audio HD CCTV IP AI Camera Module 2560*1440 Network Security IPC board ONVIF
3.0mp 1/2.8" low illumination CMOS IP module with Audio; Support 2D/3D noise reduction, digital wide dynamic;Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate, high definition quality of image;Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5;Support ONVIF; access third party;Support various mobile monitoring(iPhone,Android);Provide web, CMS, center platform management software MYEYE, provide SDK developmentSupport cloud technology, easy to achieve network penetration, fro in-line and alarm information pushedModule 38*38mm size IP PCB Board.Lens: 2.8mm Lens, Optional: 2.1mm/2.8mm/3.6mm/4mm/6mm/8mm/12mm/16mm/25mm (If you need to choose the lens, please Leave a message when you buy) Specifications:Sensor 3.0MP 1/2.8" CMOS sensor System structure Embedded RTOS,dual-core 32bit DSP(Hi3516E), pure hard compression,watch dogMinimum Illumination color 0.0001Lux/F1.2, black/white 0.0001Lux/F1.2 Video compression H.265++/H.265+/H.265/H.264, support dual stream, AVI; 0.1M~8Mpbs variable; 1~25f/s variable Image outputMain stream: 3mp 2048*1536(25fps); sub-stream: 704*576(15fps) Wide dynamic Support digital Reliability Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing Network interface 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc Singal interface One photo resistance interface,one IR-CUT interface,support photo resistance signal and IR-CUT links to IR Shutter 1/50(1/60)s to 1/10,000s Audio compression G.711,support bidrectional talk,audio&video synchronization Audio interface 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone Other functionSupport IR-CUT, Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; Support ONVIF; perfect SDKAlarm I/O 1/0 (support alarm input and video link to background) Mobile monitoringSupport multiple mobile monitoring (iOS, Android)OtherDC12V/2A input, power consumption:≤3W,dimension 38mm*38mm ExplainSupport POE power supply (optional), not support any custom Packaging included: 1x HD 3MP CCTV IP Camera Module1x HD 2.8mm lens1x cctv microphone1x IR Cut1x Module weatherproof IP Cable1x CD (software + manual) Warranty Term: One Year Warranty Payment:1. We accept Paypal, other ways please contact us.2. If you need to buy more goods, but the price is not cheap enough, or you did not find them in our store, please contact us!3. Buyers response for all tax or VAT under any circumstances. Shipping: 1. The item will be shipped within 1-3 business days after payment.2. All products have been checked and packaged in good condition before dispatch. 3. The package will be shipped by China post, if you need express shipping, please contact us to check the express shipping cost. If your order is large enough, we will ship it by DHL, Fedex, UPS or EMS.4. We provide 12 months Warranty, if the item is defective, please notify us within 5 days of delivery. We provide replacement service for defective items. Feedback:1. We will do a positive feedback automatically after receiving your positive feedback. We would appreciate your positive feedback. 2. If you are not satisfied with our product or service, please E-mail me with your problem before leaving a negative/neutral feedback or open a dispute, we work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. We care about our valued customers, and will always be willing to help you. So if you have any problems, please E-mail us immediately. inkfrog terapeak
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Features | Wide Angle |
| MPN | B10028 |
| Color Mode | Color |
| Surveillance Technology | IP/Network |
| Country/Region Of Manufacture | China |
| Model | b25 |
| Connectivity | IP/Network - Wired |
| Brand | Unbranded/Generic |
| Type | Surveillance Camera |
3.0mp 1/2.8″ low illumination CMOS IP module with Audio; Support 2D/3D noise reduction, digital wide dynamic;Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate, high definition quality of image;Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5;Support ONVIF; access third party;Support various mobile monitoring(iPhone,Android);Provide web, CMS, center platform management software MYEYE, provide SDK developmentSupport cloud technology, easy to achieve network penetration, fro in-line and alarm information pushedModule 38*38mm size IP PCB Board.Lens: 2.8mm Lens, Optional: 2.1mm/2.8mm/3.6mm/4mm/6mm/8mm/12mm/16mm/25mm (If you need to choose the lens, please Leave a message when you buy) Specifications:Sensor 3.0MP 1/2.8″ CMOS sensor System structure Embedded RTOS,dual-core 32bit DSP(Hi3516E), pure hard compression,watch dogMinimum Illumination color 0.0001Lux/F1.2, black/white 0.0001Lux/F1.2 Video compression H.265++/H.265+/H.265/H.264, support dual stream, AVI; 0.1M~8Mpbs variable; 1~25f/s variable Image outputMain stream: 3mp 2048*1536(25fps); sub-stream: 704*576(15fps) Wide dynamic Support digital Reliability Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing Network interface 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc Singal interface One photo resistance interface,one IR-CUT interface,support photo resistance signal and IR-CUT links to IR Shutter 1/50(1/60)s to 1/10,000s Audio compression G.711,support bidrectional talk,audio&video synchronization Audio interface 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone Other functionSupport IR-CUT, Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; Support ONVIF; perfect SDKAlarm I/O 1/0 (support alarm input and video link to background) Mobile monitoringSupport multiple mobile monitoring (iOS, Android)OtherDC12V/2A input, power consumption:≤3W,dimension 38mm*38mm ExplainSupport POE power supply (optional), not support any custom Packaging included: 1x HD 3MP CCTV IP Camera Module1x HD 2.8mm lens1x cctv microphone1x IR Cut1x Module weatherproof IP Cable1x CD (software + manual) Warranty Term: One Year Warranty Payment:1. We accept Paypal, other ways please contact us.2. If you need to buy more goods, but the price is not cheap enough, or you did not find them in our store, please contact us!3. Buyers response for all tax or VAT under any circumstances. Shipping: 1. The item will be shipped within 1-3 business days after payment.2. All products have been checked and packaged in good condition before dispatch. 3. The package will be shipped by China post, if you need express shipping, please contact us to check the express shipping cost. If your order is large enough, we will ship it by DHL, Fedex, UPS or EMS.4. We provide 12 months Warranty, if the item is defective, please notify us within 5 days of delivery. We provide replacement service for defective items. Feedback:1. We will do a positive feedback automatically after receiving your positive feedback. We would appreciate your positive feedback. 2. If you are not satisfied with our product or service, please E-mail me with your problem before leaving a negative/neutral feedback or open a dispute, we work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. We care about our valued customers, and will always be willing to help you. So if you have any problems, please E-mail us immediately. inkfrog terapeak
